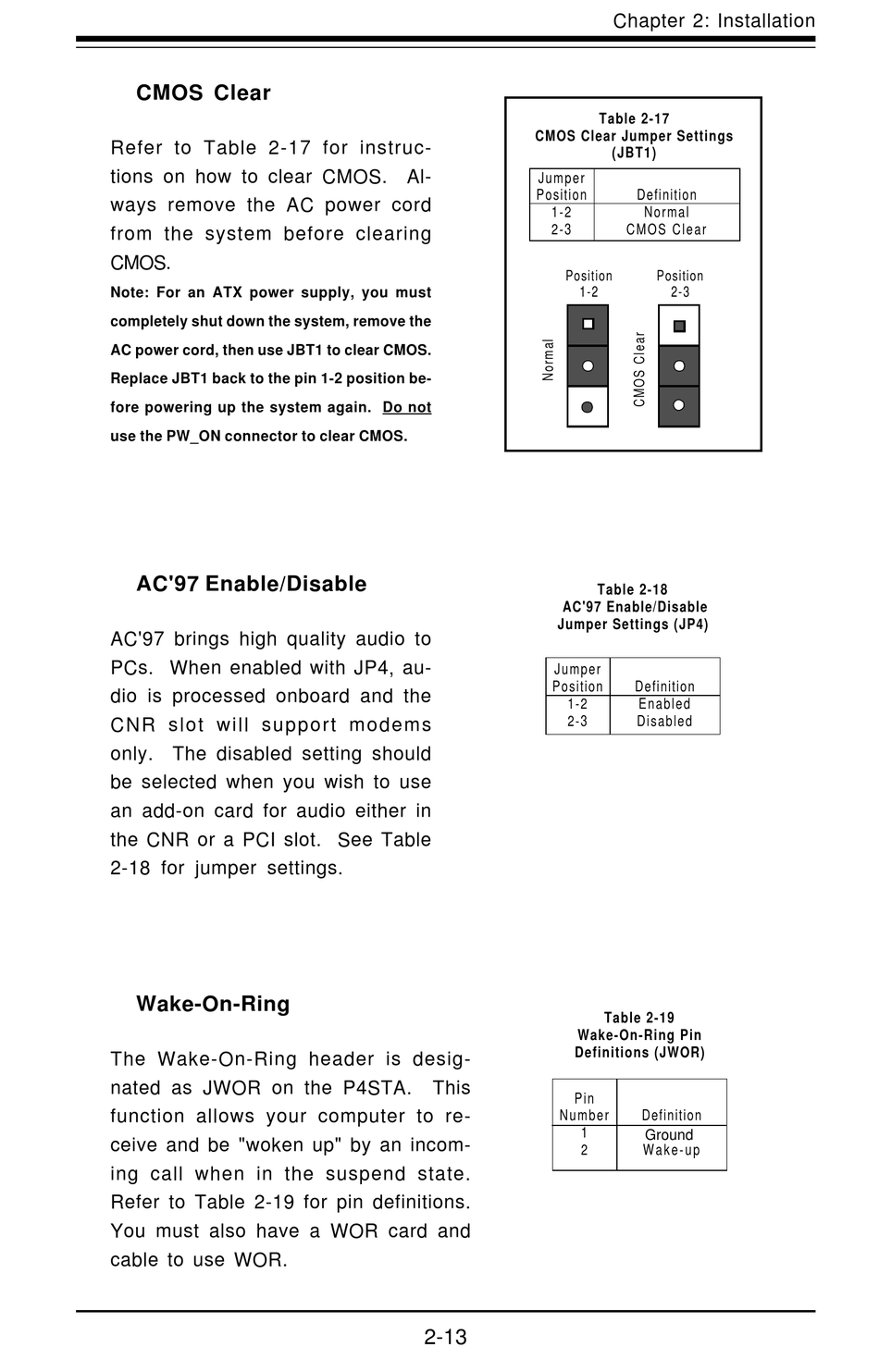

CMOS Clear

Refer to Table 2-17 for instruc-
tions on how to clear CMOS. Al-
ways remove the AC power cord
from the system before clearing
CMOS.
Note: For an ATX power supply, you must
completely shut down the system, remove the
AC power cord, then use JBT1 to clear CMOS.
Replace JBT1 back to the pin 1-2 position be-
fore powering up the system again. Do not
use the PW_ON connector to clear CMOS.

AC'97 Enable/Disable

AC'97 brings high quality audio to
PCs. When enabled with JP4, au-
dio is processed onboard and the
CNR slot will support modems
only. The disabled setting should
be selected when you wish to use
an add-on card for audio either in
the CNR or a PCI slot. See Table
2-18 for jumper settings.

Wake-On-Ring

The Wake-On-Ring header is desig-
nated as JWOR on the P4STA.
function allows your computer to re-
ceive and be "woken up" by an incom-
ing call when in the suspend state.
Refer to Table 2-19 for pin definitions.
You must also have a WOR card and
cable to use WOR.
CMOS Clear Jumper Settings
Jumper
Position
1-2
2-3
Position
1-2
AC'97 Enable/Disable
Jumper Settings (JP4)
Jumper
Position
1-2
2-3
Wake-On-Ring Pin
Definitions (JWOR)
This
Pin
N u m b e r
1
2
2-13
Chapter 2: Installation
Table 2-17
(JBT1)
Definition
Normal
C M O S C l e a r
Position
2-3
Table 2-18
Definition
Enabled
Disabled
Table 2-19
Definition
+5V Standby
Ground
W a k e - u p
