Supero SUPER P4STA User Manual page 27

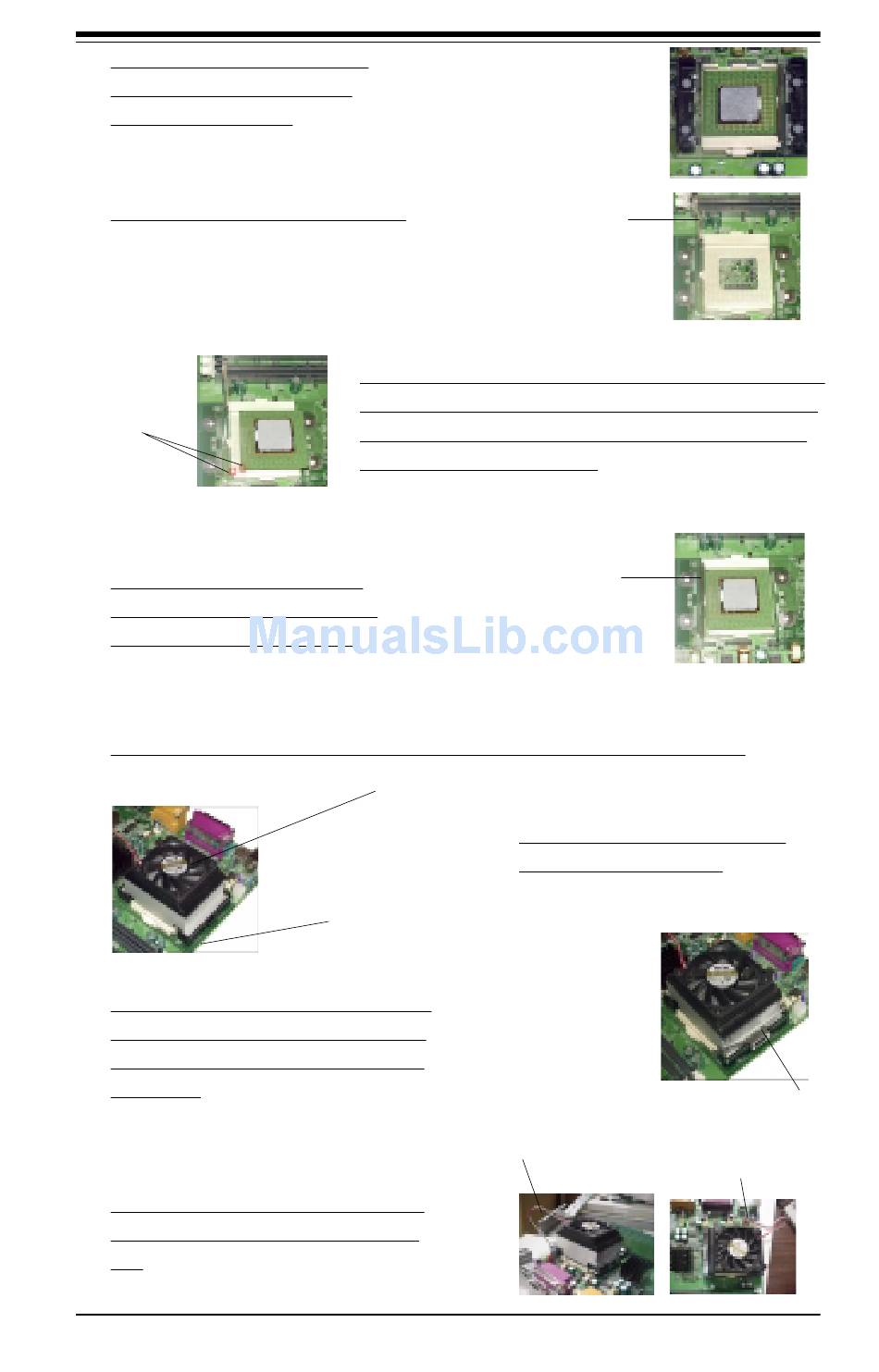

4. Secure another reten-
tion into its position by
repeating Step 3.
5. Lift the CPU socket lever.
Pin 1
7. Press down the lever
into its lock position until
you hear a click sound.
8. Apply the proper amount of thermal glue on the CPU die.
10.Secure the heat sink in its
proper position by locking the
retention clips into the proper
position.
11. Connect the cord of CPU
Fan to the CPU Fan Connec-
tor.
Socket Lever
6. Install the CPU in the socket. Make sure
that Pin 1 (the corner with a triangle) of the
CPU is seated on Pin 1 of the socket (the
corner with a triangle).
Socket Lever in
its lock position
Heat sink
9. Place the heat sink on
the top of the CPU.
CPU
CPU Fan
Cord
2-3
Chapter 2: Installation
Retention Clip
CPU Fan
Connector
