Processor and Heat Sink Installation

!
IMPORTANT: Always connect the power cord last and always re-
move it before adding, removing or changing any hardware compo-
nents. Make sure that you install the processor into the CPU
socket before you install the CPU heat sink.

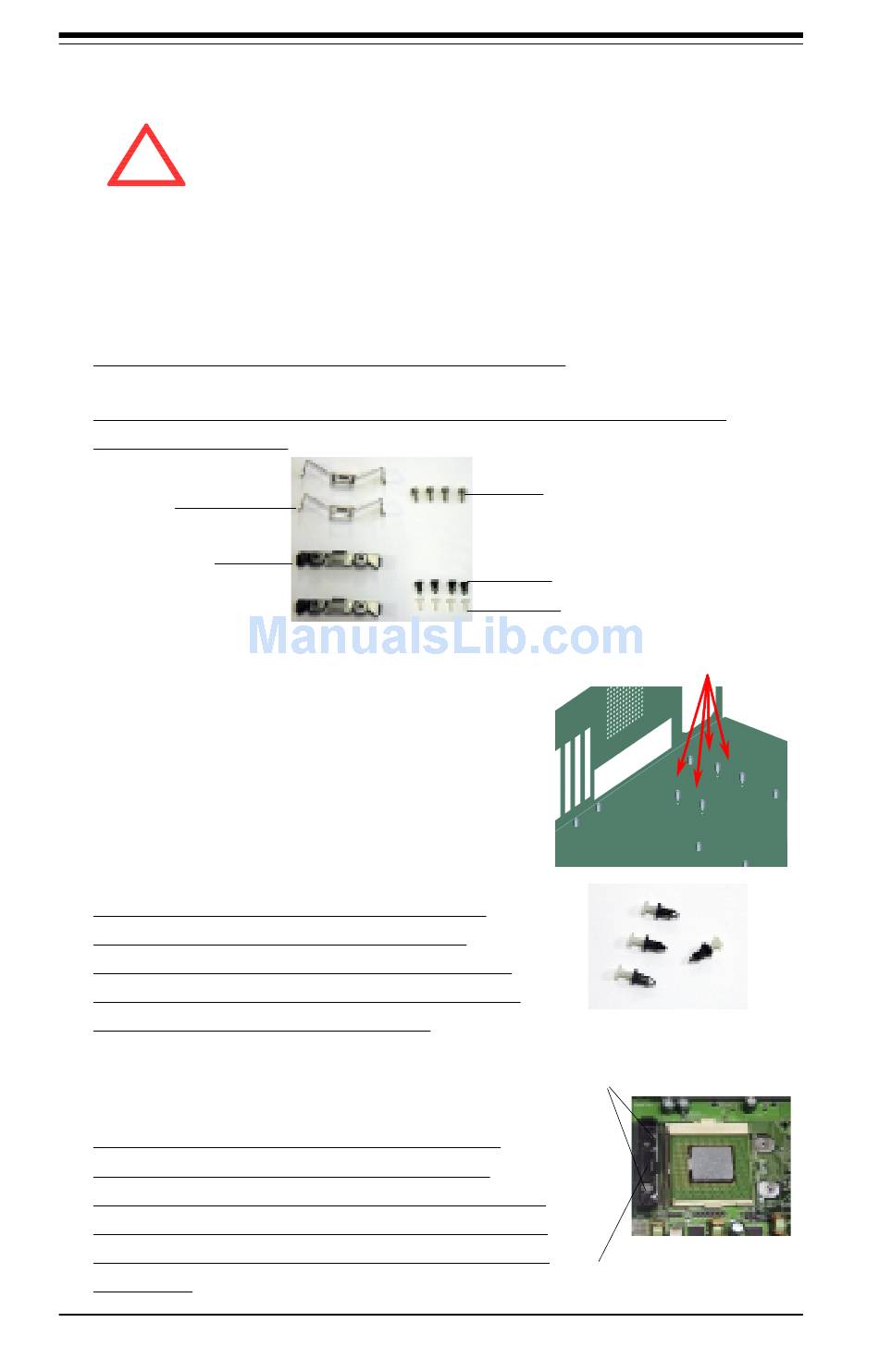

Installation of the Processor and Heat Sink
1. Locate the following components that are included in the
shipping package.
Clips (2)
Retentions (2)
(*Note: These screws are to be used
for mounting the motherboard on the
back panel of the chassis that has 4
mounting holes.)
(*For the chassis that does not have 4 holes in
the chassis:)
2. Insert white pegs into the holes of
black pegs. (Do not push the white
pegs all the way into the holes of black
pegs. Only 1/3 of white pegs should be
inside the holes of black pegs.)
3. Place a retention in its position and
secure the retention in its position by
pressing two pegs into the retention holes
until you hear the click sound.
sound indicates that the peg is locked and
secured.)
When handling the
direct pressure on the label area of the fan.
processor package, avoid placing
Screws (4)- (*Note below)
Black pegs (flexible)- (4)
White pegs (flexible) -(4)
Two pegs in
the position
(*The click
One Retention in its
position
