SPORTident Station BS11-BL Manual

SPORTident-Station BS11-BL
April 2016
Identification at check points in outdoor sport disciplines like trail, biking and skiing is slightly
different than in orienteering. In general passing speed is higher and control points are more line
elements than filigree objects. The BS11-BL is special adapted for these applications by enabling
identification over the air. By using the BS11-BL the SPORTident Active Card SIAC1 can register
the intermediate and start/finish times contactless in a range of up to 3 meters.
The station is part of SPORTident AIR+ system configuration.

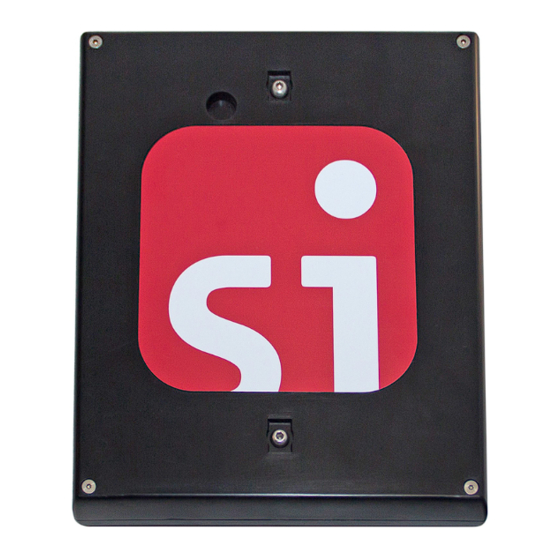

BS11
Beacon Large
front side
The SPORTident Station BS11-BL features a new body and an increased RFID output power. The
station works battery powered standalone but can be controlled and also be charged by USB
interface.
The bigger antenna with an area of 185 mm x 240 mm generates a powerful low-frequency radio
field while keeping the power consumption low. This enables a highly mobile and flexible setting of
the stations at any course and at any location without the need of any additional external
equipment.
Key features are:
The SPORTident station BS11-BL is compatible with the SPORTident system parts and
●
can be configured by software SI-Config+.
The station triggers SPORTident Active Card SIAC1 at a distance of up to 3 meters for
●
intermediate times and as start/finish station.
There are two time keeping modes "punching" and "timing" to best serve in different sport
●
applications.
Two stations BS11-BL can be configured in a gate mode to achieve higher time trigger
●
accuracy and in-lane-only identification.
SPORTident GmbH • www.sportident.com • support@sportident.com • Arnstadt • Germany
BS11
Beacon Large
back side
