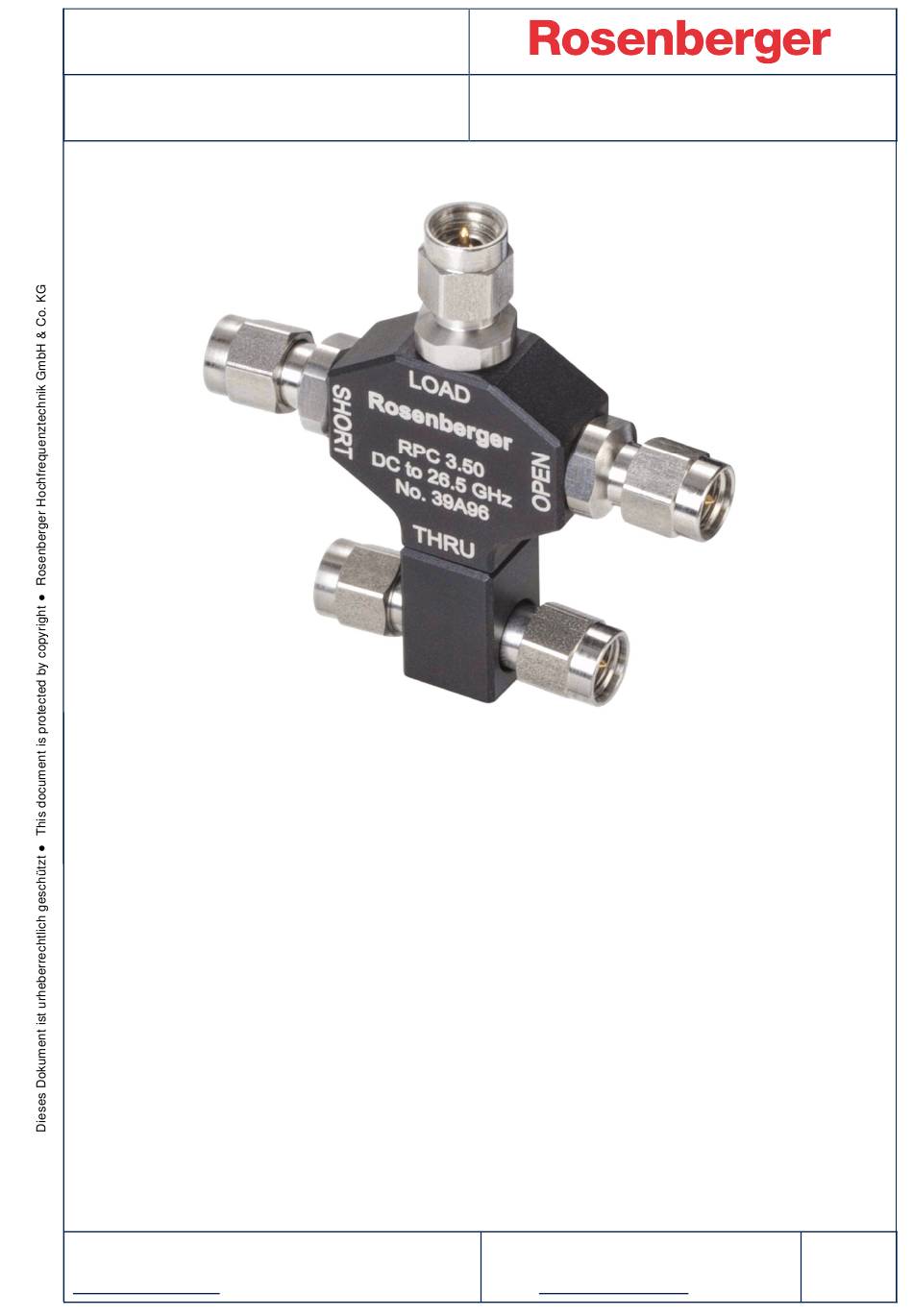

Picture shows an example of a Compact Calibration Kit
Germany
CK30R-MSO-T
Tel.
: +49 8684 18-0
Email : info@rosenberger.com
Page
1 / 17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CK30R-MSO-T and is the answer not in the manual?

Questions and answers

Summary of Contents for Rosenberger CK30R-MSO-T

  • Page 1 User Manual CK30R-MSO-T Compact Calibration Kit Picture shows an example of a Compact Calibration Kit Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260 D-84526 Tittmoning Germany www.rosenberger.com Email : info@rosenberger.com 1 / 17...
  • Page 2: Table Of Contents

    Extent of Rosenberger Re-Calibration Services 6. Use, Maintenance and Care Connector Care Interface Dimensions and Gauging Mechanical Specifications Handling and Storage 7. Connections Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260 D-84526 Tittmoning Germany www.rosenberger.com...
  • Page 3: General Information

    CK30R-MSO-T Compact Calibration Kit 1. General Information This User Manual is valid for all Rosenberger Compact Calibration Kits 1.1 Calibration Kit Normal Use Calibration Kits are used as an accessory for Vector Network Analyzers (VNA) to perform vector- error correction. Vector-error correction is the process of characterizing systematic errors of the measurement system by measuring known calibration standards, and then mathematically removing the effects of these errors from subsequent measurements.
  • Page 4: Kit Contents

    Optional scope of delivery is the Accredited Calibration. In this case the calibration kit is calibrated in the Rosenberger calibration laboratory, which is accredited by the German accreditation body DAkkS (Deutsche Akkreditierungsstelle) according to DIN EN ISO / IEC 17025. Calibration Certificates issued by an accredited calibration laboratory are accepted worldwide to demonstrate that measurement results are traceable to national / international standards.
  • Page 5: Specifications

    These standard definitions are used in the calibration of the VNA to determine the systematic errors of the measurement system. Please always use the most recent source of information (Standard Definitions Cards or VNA specific files). Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260...
  • Page 6: Installation Of Standard Definitions

    PNA family and compatible ones ‘calkit’ file can be used on Rohde&Schwarz VNAs ZVA, ZVB, ZVBT, ZNB families and compatible ones Example file name: 05S30R-MSOTS3 (23D09)_mb_2022-05-30.calkit Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260...
  • Page 7: Vna Calibration

    OSLT is the most commonly used two-port calibration method but it shall be used only in male- female test port configurations The Thru connections is then performed by a direct connection of the test ports. Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260...
  • Page 8: Calibration Check

    This should be done from time to time to identify defects. Air Lines, Precision Adapters and Mismatch Standards can also be used as a faster method for more frequent checks. Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260...
  • Page 9 5. Calibration Kit Service 5.1 Calibration interval Rosenberger suggests a calibration interval of 12 months. Depending on the frequency of use, the wear and the actual requirements a different calibration interval might be suitable. This lies in the responsibility of the user.
  • Page 10 It is important to take all necessary safety precautions when using chemicals or solvents. Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260...
  • Page 11 There are some dimensions that are critical for the mechanical integrity, non-destructive mating and electrical performance of the connector. The mechanical gauging of coaxial connectors will detect and prevent the following problems: Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260...
  • Page 12 This will result in poor reflection and possibly unreliable contact. 6.2.2 Gauges The Rosenberger gauges are of screw-on type in plug and jack version. They can be used to gauge calibration standards as well as test ports, test port cables, adapters and DUTs.
  • Page 13 Figure 6-1 shows two sets of gauges and gauge blocks for the 2.92 mm connector. Figure 6-1 Connector gauges and gauge blocks for the 2.92 mm connector NOTE: For further Information see user manual of the gauge kit Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260...
  • Page 14 • Keep connectors clean. • Do not touch mating plane surfaces. Natural skin oils and microscopic particles of dirt are easily transferred to a connector interface and are very difficult to remove. Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260...
  • Page 15 The following procedures illustrate how to make good connections. Making a Connection A combi-wrench is a useful tool to make connections. Rosenberger offers a wide range of different types of combi-wrench. This wrench is made of plastic and helps you to hold the device body and prevent it from rotating while making a connection.
  • Page 16 Compact Cal Kit up to 90°. Making a connection during the calibration with a Thru can be difficult under limited space conditions. For such cases it can be helpful to rotate the Thru and facilitates working with the wrench. Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260...
  • Page 17 Rev. Engineering change number Name Date Herbert Babinger 24/04/12 Markus Hantschel 26/02/23 20-1058 Lars Ramtke 26/02/23 Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260 D-84526 Tittmoning Germany www.rosenberger.com Email : info@rosenberger.com 17 / 17...
