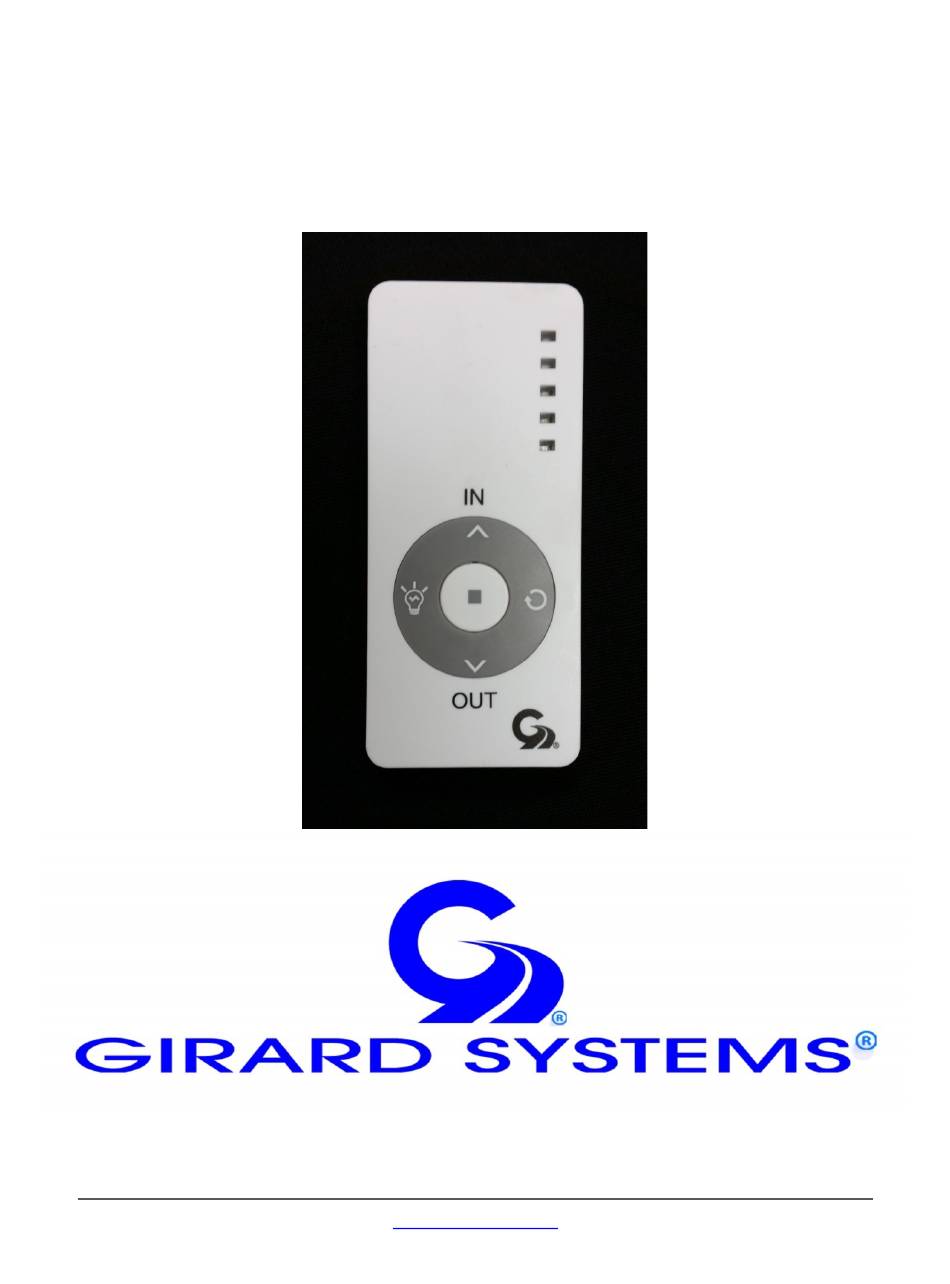

- Page 1 5-CHANNEL REMOTE HANDSET 98GC1029 PROGRAMMING GUIDE REV.07242015 RV AWNING PRODUCTS 1361 CALLE AVANZADO, SAN CLEMENTE, CA 92673 (800) 382-8442 FAX (949)276-5500 www.girardrv.com...
- Page 2 Girard Systems awnings may be operated in light wind and rain conditions. When periods of heavy rain and or high wind are expected the awning must be closed. Never leave the awning open and unattended. Damage caused by wind and rain is not covered by warranty. All awnings must be closed prior to moving the vehicle for any reason.
-
Page 3: Table Of Contents
CONTENTS The G-Link System ………………………………………………………………………….. 3 Product Description …………………………………………………………………………. 4 Programming ……………………………………………………………….…………………. 6 GC136 AC Motor Controller ………………………………………………………………. 6 GC274A / GC274B AC motor Controllers …………………………………………..7 98GC74 AC Motor Controller ………………………………….…………………………. 8 GC732G DC Motor Controller ……………………………………………………………. 9 GC1146C DC Motor Controller …………………………………………………………. 10 THE G–LINK SYSTEM The G-Link motors and control modules provided by Girard Systems communicate by use of RF signals on a frequency of 433.92 MHZ. -
Page 4: Product Description
PRODUCT DESCRIPTION The 98GC1029 remote handset is a 5-channel RF transmitter, powered by a single 3v Lithium battery (CR2430) designed to control up to 5 awnings and operate the LED lighting strips by means of a multi-functional circular control pad. As shown in Fig.1 below.. - Page 5 Turn the remote handset over to find; • The Battery compartment, (into which a single CR2430 3v Lithium battery should be inserted as shown) • The P2 button (used when pairing the device to some other G-Link Modules) • Time button (Not used) •...
-
Page 6: Programming
PROGRAMMING The following pages give instructions of how to Program or electronically Pair the handset with various motor controllers. Ensure that you select the correct set of instructions for the motor controller on your vehicle. GC136 AC Motor Controller Program Button Stop Button Fig.1 Fig.2... -
Page 7: Gc274A / Gc274B Ac Motor Controllers
GC274A / GC274B AC motor Controllers Lid Release Lid Release Program Button Fig.3 To pair the Remote handset with a GC274A or GC274B, first remove the lid of the motor control module by pressing on the Lid release catches as shown in Fig.3 Note;... -
Page 8: 98Gc74 Ac Motor Controller
98GC74 AC Motor Controller When pairing with the 98GC74 it is advised that the awning to be controlled is manually extended couple of feet to enable the programmer to see if the awning is responding in the correct direction when the buttons on the remote handset are pressed. The programming window for this module is only 6 seconds so please ensure that the programming instructions are read and understood before attempting to execute them. -
Page 9: Gc732G Dc Motor Controller
GC732G DC Motor Controller Program Button Fig.4 To pair the Remote handset with a GC732G Motor controller, follow the steps below. Note; when carrying out this part of the procedure each step must be executed within 10 seconds of the previous one or the module will revert to factory settings. It is highly recommended that you read and understand the following sequence before attempting to execute it. -
Page 10: Gc1146C Dc Motor Controller
GC1146C DC Motor Controller To pair the Remote handset with a GC1146C Motor controller, follow the steps below. • Fully extend the awning to ensure smooth operation, and then retract the awning leaving it partially open (about 3 feet). • Locate the P2 Button on the back of the handset. P2 Button Page 10 of 11... - Page 11 Note; when carrying out this part of the procedure each step must be executed within 10 seconds of the previous one or the module will revert to factory settings. It is highly recommended that you read and understand the following sequence before attempting to execute it.
