FuseBox RTAM MINI RCBO 6kA 1P N Instruction Leaflet

RTAM MINI RCBO 6kA 1P+N
Instruction Leaflet

Technical information

Series
Rating (A)
Tripping curve
Number of Poles
Residual Operating Current(l∆n)
Type
Voltage(V)
Frequency
Rated short circuit capacity
IP RATING
Torque
Maximum cable capacity
Neutral cable length
Complies with

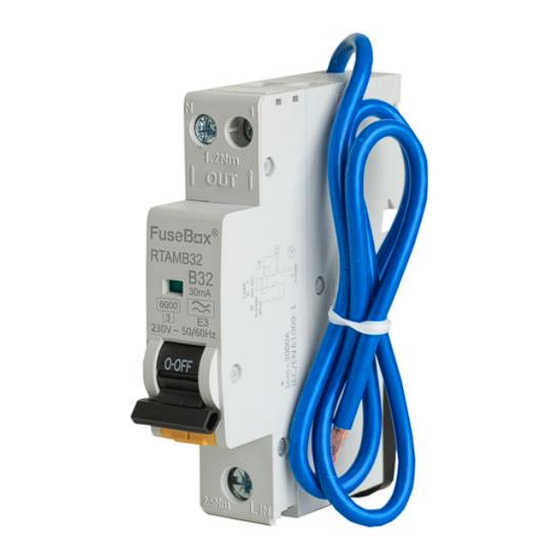

MINI RCBO series (RTAM)
MINI RCBO with switched LINE and NEUTRAL. Used for the protection
against overload, short circuit and earth leakage. Type A for AC and
pulsating DC sensitivity with a
short circuit capacity of 6kA with a maximum rating of 40A.
Compact in size increasing working space within a FuseBox consumer
unit making installation, connection and testing easier and quicker.
Flying Neutral cable can be cut to suit but should be terminated.
Testing:
Line and Neutral conductors DO NOT have to be disconnected for IR
(insulation resistance) if the lever is in the OFF position.
After installation and testing of this product it is essential that the INSTRUCTION LEAFLET is available for reference
(Switched Neutral)
DOC:RCBOMINI2022
RTAM
6, 10, 16, 20,25, 32, 40
B, C
1P + N (switched neutral)
30mA
A
230V
50/60Hz
6kA
IP20 EN 60529
2.5Nm / 1.2Nm
16mm² (Lin) 10mm² (Lout Nout)
450mm (can be cut to suit)
IEC 61009-1
IEC 61009-2-2

Wiring Diagram

NEUTRAL CABLE CSA
6A 2.5 mm²
10A 2.5 mm²
16A 2.5 mm²
20A 2.5 mm²
32A 4.0 mm²
40A 4.0 mm²
