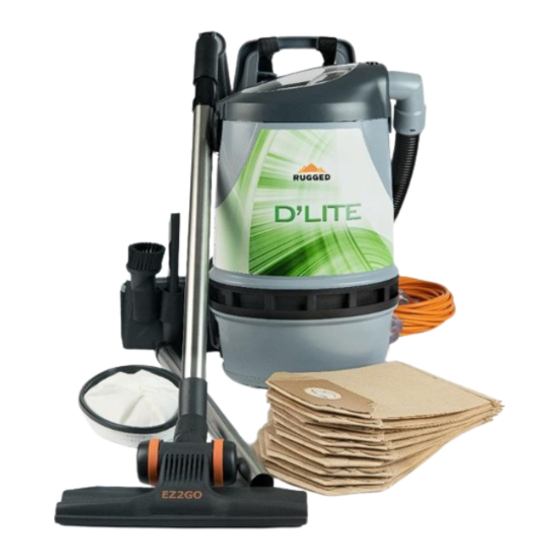

Rugged Computing D'Lite Instruction Manual And Parts Book

Back pack vacuum cleaner with h10 hepa filter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL AND PARTS GUIDE
CAUTION Read the instruction manual before using the machine
D'Lite
Back Pack Vacuum Cleaner with H10
HEPA Filter
Model No.:15721100
Rugged Industries Pty Ltd
ABN: 59 154 866 878
12 / 51 Owen Street
Glendenning NSW 2761 Australia
Postal: PO Box 1076 Dundas NSW 2117
Ph: +61 2 9680 0052
Email:
contactus@ruggedindustries.com.au
www: ruggedindustries.com.au
D'Lite Manual #rev11112021
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D'Lite and is the answer not in the manual?

Questions and answers

Related Manuals for Rugged Computing D'Lite

Summary of Contents for Rugged Computing D'Lite

  • Page 1 INSTRUCTION MANUAL AND PARTS GUIDE CAUTION Read the instruction manual before using the machine D’Lite Back Pack Vacuum Cleaner with H10 HEPA Filter Model No.:15721100 Rugged Industries Pty Ltd ABN: 59 154 866 878 12 / 51 Owen Street Glendenning NSW 2761 Australia Postal: PO Box 1076 Dundas NSW 2117 Ph: +61 2 9680 0052 Email:...

  • Page 2: Safety Instructions

    Safety Instructions Read this manual before using the back pack and always follow the Safety and Maintenance Instructions CAUTION: This machine shall be stored indoors only • This machine is intended for domestic and commercial use only • Do not leave the appliance when plugged in. Unplug from the power point when not in use and before servicing.
  • Page 3 Packaging • Every Impress unit comes with: • A basic set of cleaning accessories: crevice tool, dusting brush, 10 paper filter bags, and 1 spare cloth filter, vacuum hose with elbow hand grip, 2 piece wand, and EZ2GO floor tool. •...
  • Page 4 • To Remove Motor Filter Use the Filter flaps to lift from canister base. Remove with care from the canister. • To Fit Motor Filter Insert into canister base filter recess. Press firmly around the edge of the filter to fit into position. NOTE: Do not press on filter media.

  • Page 5: Safety And Maintenance Checks

    • Adjustment and Wearing • Wearing the Vacuum Cleaner Loosen Shoulder Pad Straps by pulling straps in the direction shown, and lift the vacuum onto the shoulder. Position the waist-band into the 'small' of your back just above your backside. •...

  • Page 6: Operation

    • As Needed Check Inlet Elbow, Hose, Bent End Piece and Floor Tool for blockages. Regularly Check cord for cuts, exposed wire, abrasion and twisting. Replace cord only with original manufacturer’s part. Note: Always unplug cord from power point when not in use.

  • Page 7: Product Specifications

    Product Specifications General Size: 36 x 36 x 54 cm Packaging Weight: 9.0 kg Type: Dry Air Flow Nozzle: Vacuum Class: Type 2 Double Insulated 34l/s Suction: 22 Approval: RCM kPa Noise: 72 dBA at 1m Weight: 4.4 kg - not including cord and rod Filtration Cloth Filter Bag Size: 5 Litre, Antimicrobial polyester needle felt.
  • Page 8 13640001 Elbow Inlet BVC 13640002 Elbow BEP 32mm Black VACUUM MOTOR 16022005 Rod Stainless 32mm x 495L DLITE MODEL 16019002 Tool Crevice 220-240V 50 Hz SUPPLY 16019003 Tool Dusting Brush ELECTRICAL CIRCUIT DIAGRAM 16019004 Tool Floor EZ2GO 15721100 D'LITE ASSEMBLY...
  • Page 9 Tool Turbo Brush 32mm 16019006 Tool Combination 32mm x 300mm Wide 16019014 Tool Mega Gulper Pro 32mm x 385mm Wide 16019007 Tool Upholstery 32mm 16019017 Tool Electric Brush 32mm x 355mm Wide 16019016 Tool Hard Floor 32mm x 360mm Wide D'LITE ACCESSORIES...

  • Page 10: Troubleshooting

    Trouble Shooting Always switch off D’Lite and unplug from wall prior to correcting any problems. If you are unable to rectify the problem, contact your local service agent. Problem: Machine not working Cause No power at power point. Solution Connect machine to a functional power point. Cause Power cord not plugged into power point or machine.

  • Page 11: General Warranty Policy

    General Warranty Policy Rugged Industries Pty Ltd ACN 154 866 878 (“Rugged”) warrants to the original purchaser that the equipment specified in this manual (“Equipment”) is free from defects in workmanship and materials under normal use for a period of 12 months. Under this warranty, after examination discloses it to have been defective, Rugged will repair or replace at its factory or authorised dealer service outlet, parts of the Equipment that fail under normal use and service, when operated and maintained in accordance with the applicable operation and instruction manuals.

  • Page 12: Warranty Registration Details

    Warranty Registration Details Purchaser:..................Purchase date:........Address:................................State:......Post Code:......Contact:..........ph: Model No.:........Serial Number:.......... Purchased from:............................... Address:................................Please attach copy of receipt. Rugged Industries Pty Ltd ABN: 59 154 866 878 12 / 51 Owen Street Glendenning NSW 2761 Australia Postal: PO Box 1076 Dundas NSW 2117 Ph: +61 2 9680 0052 Email: contactus@ruggedindustries.com.au...
