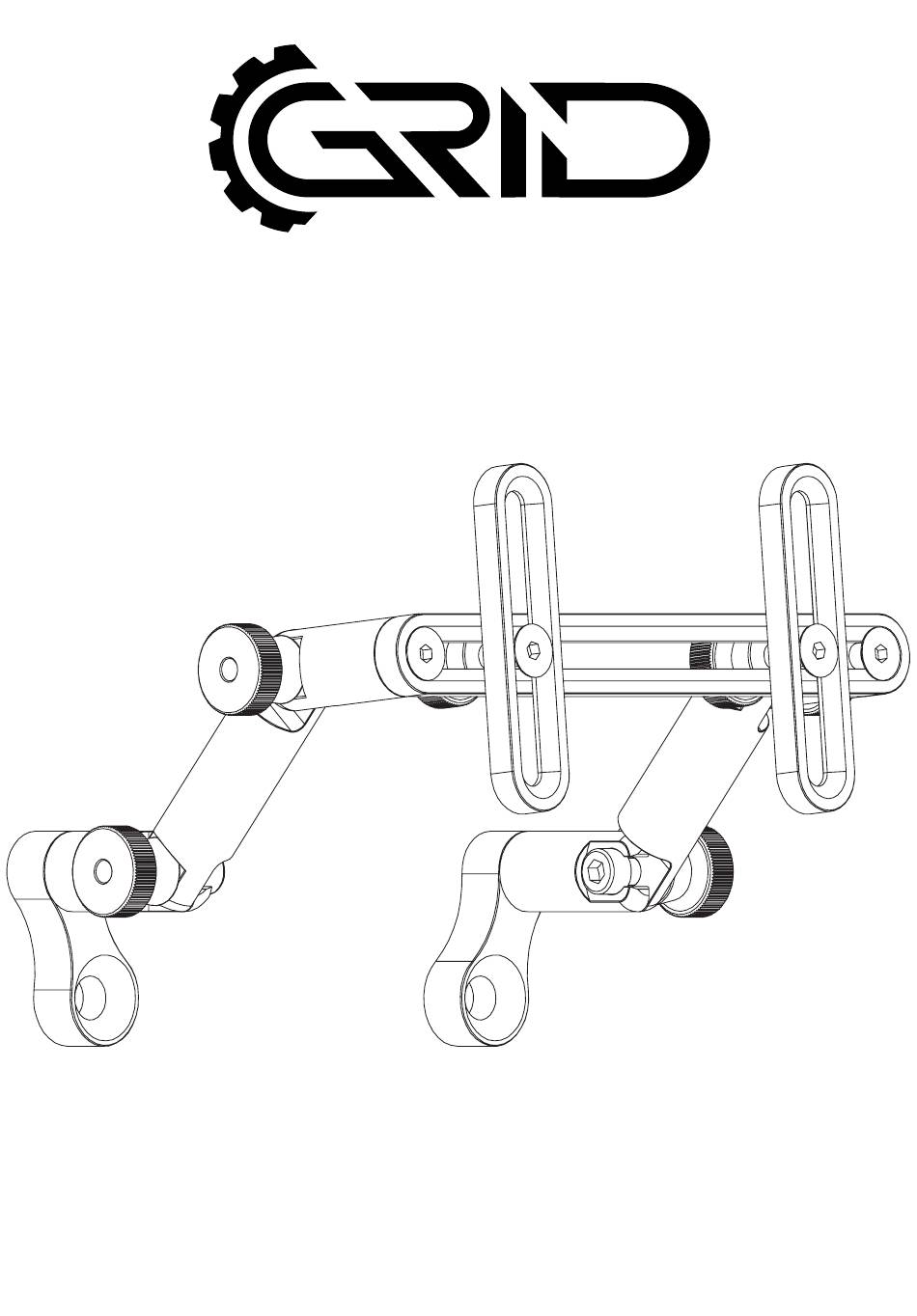

- Page 1 INSTRUCTION MANUAL DDU MOUNT VERSION 1.0 Last updated: 22-09-2023...
-
Page 2: Before You Start
BEFORE YOU START: Thank you for your purchase. In this manual we will provide you with the means to get started using your new GRID product! As a supplier of dashboards, we know sometimes extra versatility and adjustability is required. With this kit we offer all you need in order to get your dash positioned just right for your situation. - Page 3 Introduction The DDU Mount comes pre-assembled to some extent. All extension arms and the end pieces are assembled as one piece ready to mount. Regarding the needs for your specific setup, we tried to supply enough parts for you to be able to adjust the position of your DDU perfectly.
- Page 4 Mounting OSW/SC/VRS We find it is easiest to mount the DDU mount when it has been completely assembled. Lay out all the parts needed, checking before to know which extension to choose, or maybe combine them to reach the desired length.
- Page 5 Attach the DDU by using 2 or 4 M5 countersunk bolts (A8) included. Using only 2 bolts is enough, while allowing for more flexibility in positioning the verical bars (F). Now all parts are in place, you can start by tightening finger nuts in pairs as you ‘pose’...
- Page 6 Fanatec When mounting the DDU mount to a Fanatec wheelbase, we assume you are using a third party wheel and need the extra adjustments our normal mounting plates can’t achieve. For certain dashes, like below, space beween the arms can get limited. We included...
- Page 7 Configuration We offer two lengths of extension arms; 50mm and 75mm. These can always be combined. Here are examples of all combinations you will be able to try. No extensions 50mm extensions 50mm+75mm 75mm extensions extensions...
-
Page 8: Bill Of Materials
Bill of materials IN THE BOX Part QTY Note DDU mount Partially assembled. Extension 75mm Partially assembled. Extension 50mm Partially assembled. Finger nut Partially assembled. Bolt M5 X 16 DIN 912 Partially assembled. Bolt M8 X 50 DIN 7991 To mount to front mount.
