Summary of Contents for Xentino VX110

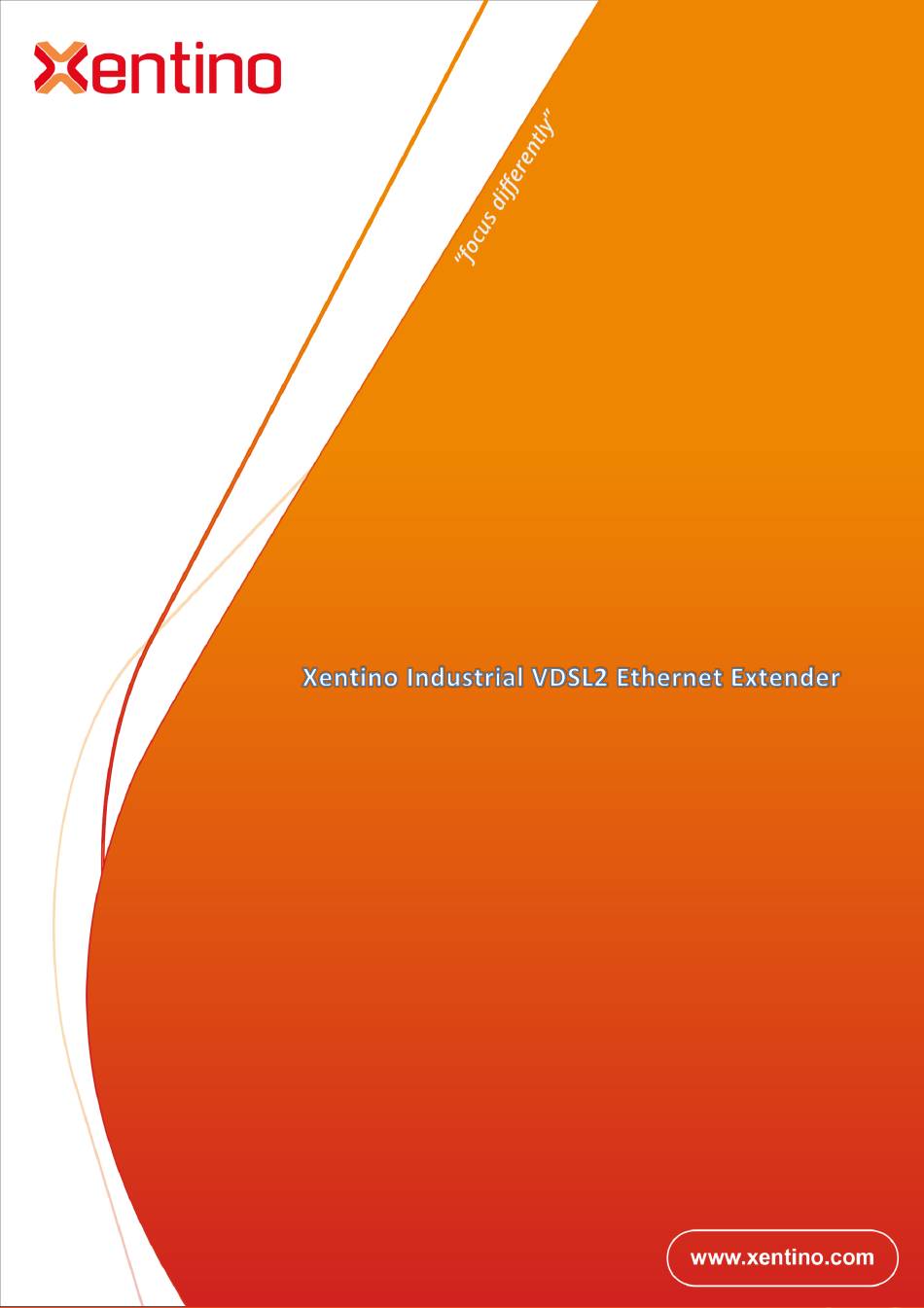

- Page 1 USER MANUAL Version 2.0.0 Models : VX110 “focus differently” www.xentino.com...
- Page 2 Copyright Notice Copyright © 2018 Xentino Technologies Corp. All rights reserved. No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission. Disclaimer We shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Introduction 1.1 Features 1.2 Specification 1.3 Applications Chapter 2 Hardware Installation 2.1 Front Panel 2.2 Rear Panel 2.3 Installation Appendix I Appendix II LIMITED WARRANTY “focus differently” www.xentino.com... -
Page 4: Chapter 1 Introduction
(line rate) within 300M or 10/10 Mbps (line rate) for 1 Km long range connections. By providing ultra-high speed, the VDSL2 VX110 Ethernet Extender makes your telephone line achieve its best performance than before. It has the advantage of minimum installation time (simply as plug-n-play) and minimum expense by allowing video streaming and data to share the same telephone pair without interference. -
Page 5: Specification
Dimension: 73.4mm x 96.2mm x 22.8mm Temperature: -20°C ~ 65°C Humidity: 0%~95%RH (non-condensing) *The above performance data is for reference only, the actual data rate may vary depending on the quality of the copper wire and environmental factors. “focus differently” www.xentino.com... -
Page 6: Applications
1.3 Applications LAN Extender Application “focus differently” www.xentino.com... -
Page 7: Chapter 2 Hardware Installation
This chapter shows the front panel and how to install the hardware. 2.1 Front Panel Front panel can be separated into five parts from left to right: DIP switch RJ-45 connector for Ethernet LEDs for Ethernet LEDs for VDSL RJ-45 connector for VDSL “focus differently” www.xentino.com... - Page 8 The device not ready. FUL 100(LAN Link) Green The device is link on 100M Full duplex and ready. Green Blinking The device is sending or receiving data. Green The device is link on 10M Full duplex and ready. “focus differently” www.xentino.com...
- Page 9 Asymmetric: Provides highest line rate in short range in asymmetric mode. Pin 4: General protection 9dB: Better channel noise protection with SNR up to 9 dB 6dB: Original channel noise protection with 6 dB SNR. “focus differently” www.xentino.com...
-
Page 10: Rear Panel
LEDs for VDSL Device Power ON Device Power OFF CPE-mode CO-mode Slow: Idle Linked Off line Fast: Training 2.2 Rear Panel The DC Jack on the rear panel can be connected to power supply adaptor with the DC input. “focus differently” www.xentino.com... -
Page 11: Installation
2.3 Installation Please see the illustration below “focus differently” www.xentino.com... - Page 12 The Ethernet Port interface is an 8 position Modular Jack. The table below displays the pin out assignments. Pin Number Assignment (MDI-X) Figure RX+; Receive data + RX-; Receive data - TX+; Transmit data + Not used Not used TX-; Transmit Data - Front View Not used Top View Not used “focus differently” www.xentino.com...
- Page 13 The VDSL interface is standard eight-pin modular jack. The table below displays the pin out assignments. Pin Number Description Figure Not used Not used Not used ANALOG Input/Output Front View ANALOG Input/Output Not used Top View Not used Not used “focus differently” www.xentino.com...
-
Page 14: Appendix I Appendix
• Power Input: AC: 100 ~240V or DC48: 36 ~ 60V • Cross flow cooling fan built-in • VX110 units are hot swappable Specifications Power Input: AC : 100 ~240V or DC48 : 36 ~ 60V Power Consumption: >60W ... -
Page 15: Limited Warranty
PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THE POSSIBLITY OF SUCH DAMAGES. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE. ANY CLAIM AGAINST THE CUSOMER BY ANY OTHER PARTY. “focus differently” www.xentino.com... - Page 16 “focus differently” www.xentino.com...
