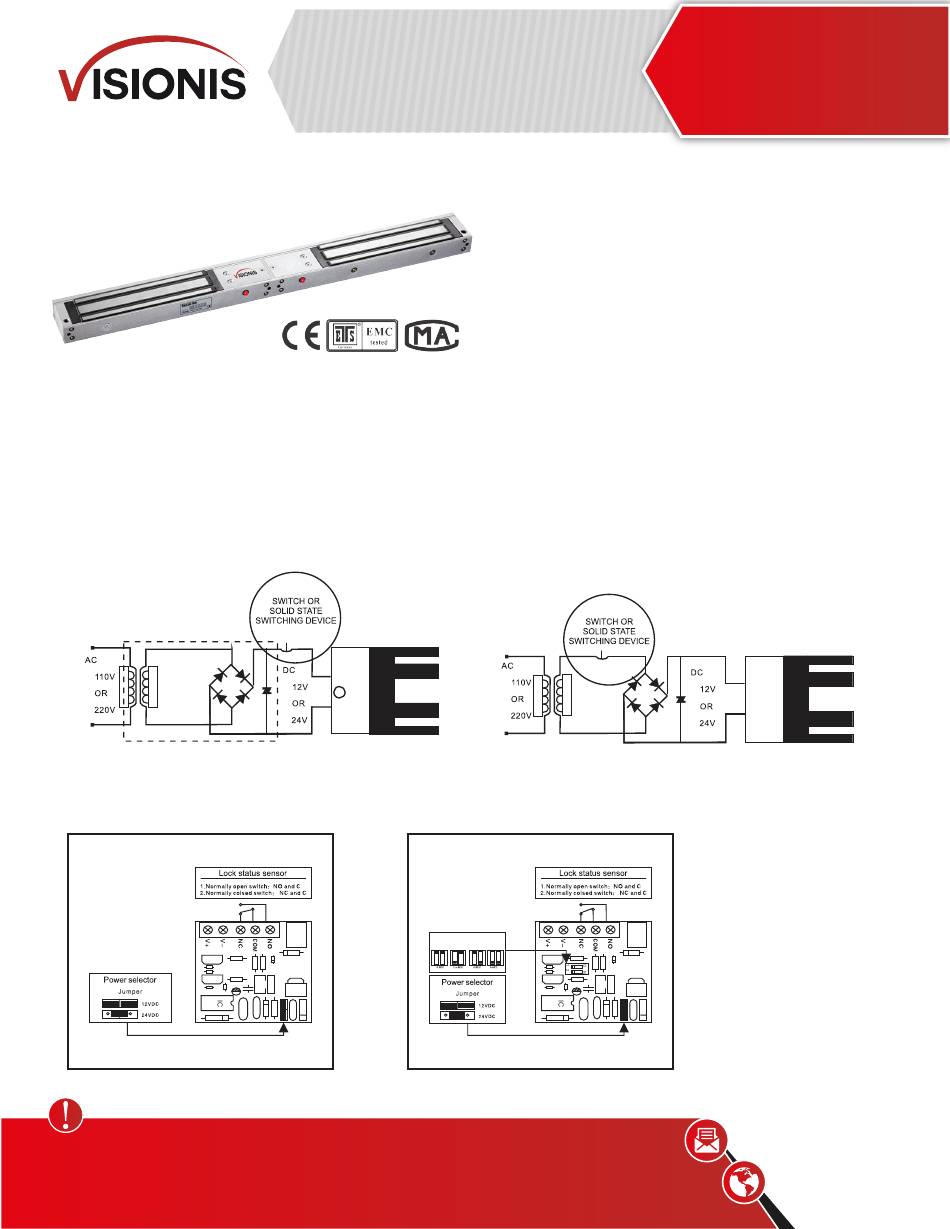

Visionis VIS-600D-LED Instructions

Technology Within Your Reach
B. 24VDC Input:
- Required power 0.25 Amp (Minimum).
- Connect the positive (+) lead from a 24VDC
power source to V+.
- Connect the ground (-) lead from a 24VDC
power source to V-.
- Check jumper for 24VDC operation.
PRINTED CIRCUIT BOARD SCHEMATIC
600lbs Magnetic-lock
Disclaimer: VISIONIS reserve the right to go ahead with any modifications of models or features or price without forewarning. All the
information and specifications stated in this document are current at the time of publication. Attention: We are not responsible for the
improper installation of this kit. If you are not handy with electrical equipment you should contact a professional electrician. You will also
need to check with your local Fire authority to see if you need anything else to comply with local Fire Codes. We are not responsible for
any damage or fees that can occur.
Double Door Magnetic Lock
W/LED & Door Sensor
(600lbsx2)
600LBS MAGNETIC LOCK INSTRUCTION
Correct
A. 12VDC Input:
- Required power 0.5 Amp (Minimum).
- Connect the positive (+) lead from a 12VDC
power source to V +.
- Connect the ground (-) lead from a 12VDC
power source to V -.
- Check jumper for 12VDC operation.
Important!
If power switch is not wired between DC
source voltage and magnet, it will take a
longer time to de-energize the magnet
simulating residual magnetism. (see below)
Tim e del ay setti ng
600lbs Magnetic-Lock Time delay
ref.
VIS-600D-LED
Incorrect
