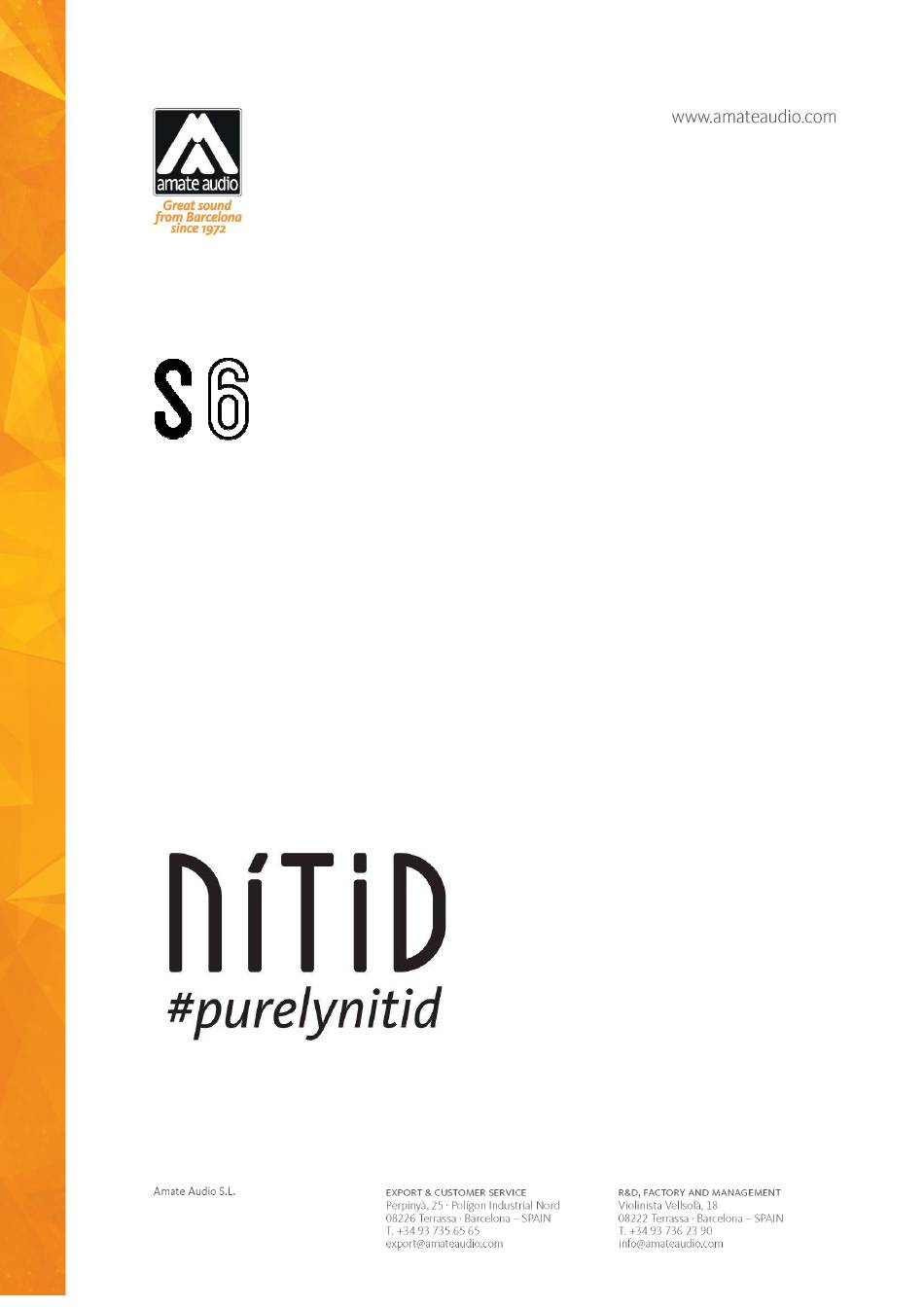

  • Page 1 User’s manual Mayo 2023...
  • Page 2 NITID S6 May 2023 Safety Instructions 1. All safety instructions must be read before using this device. 2. Keep and follow these instructions 3. Heed all warnings 4. The exclamation mark in the triangle indicates internal components which if replaced can affect safety.
  • Page 3 May 2023 1. INTRODUCTION 1.1. General Amate Audio would like to thank you for your confidence in our NÍTID Series. We suggest you to carefully read the following instructions in order to obtain the best results in performance. 1.2. Features and presentation •...

  • Page 4: Control And Connection Panel

    NITID S6 May 2023 PRESET 3: HPF90 For using with subwoofer. HPF at 90 Hz. HPF90 Fig. 1. Presets for S6 2. CONTROL AND CONNECTION PANEL The S6 control panel contains the following elements: TOUCHSCREEN: Displays information about the System status: current preset, amplifier status and signal input level.
  • Page 5 NITID S6 May 2023 E) AUTHENTICATION QR CODE: This QR code is a smart label that ensures that the product is an original Amate Audio product. To verify the authenticity, please follow the instructions in the following link: http://www.amateaudio.com/en/product-authentication/ Fig. 2. S6 control and connection panel...

  • Page 6: Mounting And Installation

    NITID S6 May 2023 3. CONFIGURATIONS 3.1. Parallel connection Connect the signal (mixing desk output) to INPUT on the first unit. Use the LINK output to transfer the INPUT signal to the second unit and thus sequentially for further units. All of the units in this chain must be switched on.
  • Page 7 Do not fly systems from unsafe structures. All flying accessories that are not supplied by Amate Audio are the user's responsibility. Use at your own risk. Remember that no risks should be taken with regards to public safety.
  • Page 8 NITID S6 May 2023 4.3. Rotatable logo All grille’s logo can be rotated. 4.4. Flying Only experienced people should fly speaker cabinets. Extreme care should be taken to assure the load bearing capabilities of the structures where the cabinets will be placed.
  • Page 9 On the other hand, the Peak Limiter has an ultrafast attack to control the highest peaks of the music and only makes the indicator blink. Thanks to the large experience of Amate Audio on DSP algorithms and limiters, these limiters are highly effective yet unnoticeable for the listener.
  • Page 10 The ALC feature is present when the Presets FLAT or HPF90 are selected. ALC is a DSP algorithm developed by the Research and Development team at Amate Audio to improve the listening experience when the cabinet is being used at low reproduction levels.

  • Page 11: Troubleshooting

    Check that the AC mains is between the rated AC (85 to 265VAC) If AC is correct, the power module might need servicing. Contact support. • If the screen lights up, but remains with the Amate Audio logo, the DSP board might need servicing. Contact support.

  • Page 12: Technical Features

    NITID S6 May 2023 7. TECHNICAL FEATURES Analog Audio Input Sensitivity +8dBu – 1.94V Impedance 50kΩ balanced Mains Supply Type Univ. switch mode power supply Nominal input 85-265 VAC/45-65 Hz Average current draw 0.5 A AD/DA converters 24 bit / 48 kHz...
  • Page 13 • 16.7 Million of colours 1. Main screen After turning on the system a first loading screen show up the Amate Audio’s logo. The built-in gyroscope can adapt the orientation of the screen elements to the loudspeaker position. When the boot process is completed, the following elements are shown:...
  • Page 14 NITID S6 May 2023 A. Loudspeaker model B. Mute button It mutes the audio output without turning off the amplification stage, so when the process is reverted the speaker delivers the audio immediately. C. Preset button Quick access to the preset selection menu. The icon gives info at a first glance: It shows what preset is currently applying.
  • Page 15 NITID S6 May 2023 Info menu has four pages. In the first page, Status summarizes the unit status with the following options: • Normal: Normal behaviour • Mute: Mute is enabled • Standby: The unit is waiting for signal • Protect: Failure in the amplification stage The tilt indication is not available in the presence of signal at the input.
  • Page 16 NITID S6 May 2023 Settings Non-audio settings. Advanced Advanced configuration parameters enabled for qualified users. 2.1. Audio menu o Preset Factory preset selection When loading a preset with a set of audio parameters (EQ, delay,…) customised by the user, a pop-up will show up asking for confirmation to hold the user audio parameters.
  • Page 17 NITID S6 May 2023 o EQ Input parametric multiband equalizer control. There are available five parametric peaking filters. Pushing on the upper-right corner gear enables the advanced EQ menu, where each parametric can be customised for: Frequency, gain, bandwidth. There is an option to bypass each filter.
  • Page 18 NITID S6 May 2023 2.2. Settings menu o ECO Amplifier stage power behaviour configuration. ON: The amplifier stage is always active at full power for a quick amplified signal delivery. STANDBY: The amplifier stage power is in standby mode, so no signal output thought the unit is active.
  • Page 19 The pattern PIN can be reset anytime. Just hold the finger on the screen when unit boots on the Amate Audio logo. When boot finish the pattern have been reset to default. Amate Audio...
  • Page 20 NITID S6 May 2023 2.3. Advanced menu o Sweep Acoustic test. A sinusoidal soundwave is played. It sweep through the entire audible range in two steps. First the high frequency stage from the cutoff frequency to 20 kHz. Then, the low frequency stage from 20 Hz to the cutoff frequency.

  • Page 21: Declaration Of Conformity

    NITID S6 May 2023 DECLARATION OF CONFORMITY In accordance with EN 45014:1998 Manufacturer’s Name: “AMATE AUDIO S.L.” Manufacturer’s Address: C/ Perpinyà 25, Polígon Industrial Nord 08226 Terrassa, (Barcelona), SPAIN Brand: “AMATE AUDIO” We declare under our own responsibility that: Product: Active speaker systems with DSP.
  • Page 22 T. +34 93 735 65 65 – F. +34 93 735 60 48 – info@amateaudio.com R&D and FACTORY: Violinista Vellsolà, 18 · 08222 Terrassa T. +34 93 736 23 90 – F. +34 93 786 47 00 Barcelona – SPAIN www.amateaudio.com © Copyright 2023 by Amate Audio S.L.
