VECTOR CONTROLS TLR-D5 Engineering Manual

Intelligent fan coil controller, base & terminal

Advertisement

Quick Links

SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com
TLR-D5

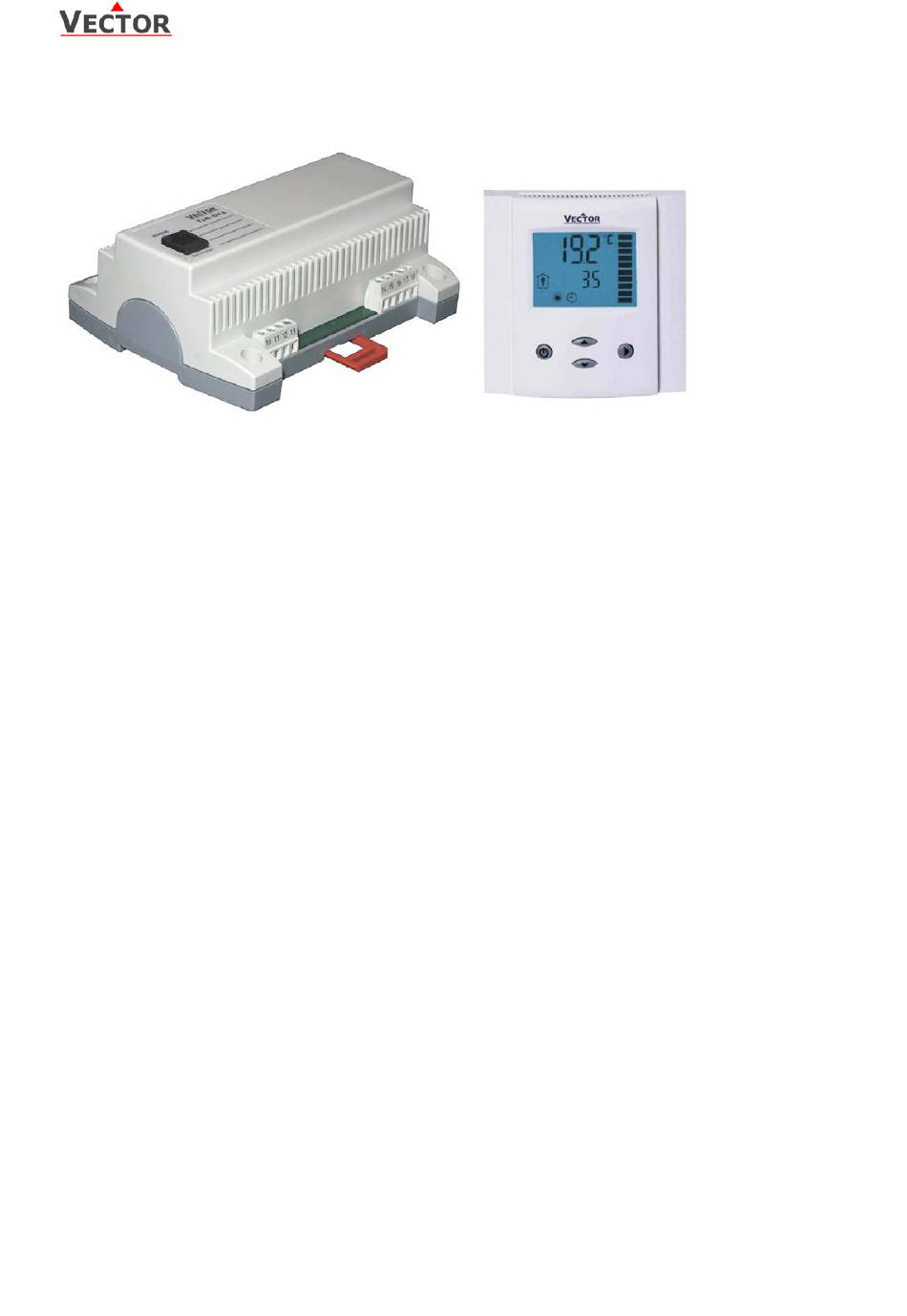

Intelligent Fan Coil controller, Base & Terminal
Features
Temperature control for 2 and 4-pipe fan coil systems.
Relays switching for each up to 10(6)A
Large temperature range from
–20°C to 70°C (-4°F to 158°F).
Automatic fan control for three stage fans.
Control for heating, cooling and fan only operation
Cost saving option with Economy functionality and set point limitation
Password protected programmable user and control parameters
External sensor or open contact for remote control, external heat – cool change or auto-changeover on supply
or outdoor temperature with selectable activation limits One terminal may control up to 8 base units in
parallel mode
Password protected programmable user and control parameters
Setpoint range limitation
o
Access control for setpoints, fan speeds and mode change
o
Access control for heat/cool change and time programs
o
Select your display contents
o
Selectable behavior after return from power failure
o
Temperature display in degree Celsius or Fahrenheit
Deluxe Version:
Clock and time schedule functions with special options for schools and universities
o
Clock keeps running for 48h in case of power failure
o
Display with blue backlight
o
Infrared remote controller option:
o
With special features for Boost and delayed switching on or off
Applications
Air Only Systems: Three stage fans for single duct systems.
Air/Water Systems: Induction units, fan coil units for 4-pipe systems
General Description
The TLR-D5 is a stand-alone electronic single loop controller with a fan control option and a binary sequence. The
controller includes 1 NTC room temperature sensor and 3+2 relays outputs. A detailed adaptation to local conditions is
possible with the use of a simple configuration routine. The TLR-D5 can be configured using the standard operation
terminal. No special tools or software is required.
The TLR-D5 has been specifically developed to switch larger fans with switching power of up to 10 (6) A.
Doc: 70-00-0095 20081223
SUNSTAR自动化 http://www.sensor-ic.com/ TEL: 0755-83376489 FAX:0755-83376182 E-MAIL:szss20@163.com
TLR-D5 Engineering Manual
©2008 Vector Controls
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLR-D5 and is the answer not in the manual?

Questions and answers

Summary of Contents for VECTOR CONTROLS TLR-D5

  • Page 1 Air/Water Systems: Induction units, fan coil units for 4-pipe systems General Description The TLR-D5 is a stand-alone electronic single loop controller with a fan control option and a binary sequence. The controller includes 1 NTC room temperature sensor and 3+2 relays outputs. A detailed adaptation to local conditions is possible with the use of a simple configuration routine.
  • Page 2 SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com TLR-D5 Engineering Manual Name Deluxe version 2” x 4” housing of terminal Power supply voltage Control option (standard) 5 Relays outputs Digital communication base – terminal Series (TLR) Ordering Item name Item code Variant Mounting size...
  • Page 3: Technical Specifications

    SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com TLR-D5 Engineering Manual Technical specifications Power Supply Operating Voltage TLR-D5-24 24 V AC ± 10 %, 50…60 Hz TLR-D5-230 230 V AC ± 10 %, 50…60 Hz Power Consumption TLR-D5-24 Max. 3 VA TLR-D5-230 Max. 5 VA Electrical Connection Terminal Connectors, wire 0.34…2.5 mm...
  • Page 4: Connection Diagram

    SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com TLR-D5 Engineering Manual Selection of actuators and sensors Temperature Sensors: Use only our approved NTC sensors to achieve maximum accuracy. Recommended is SDB-Tn10-20 as Duct sensor, SRA-Tn10 as Room sensor and SDB-Tn10-20 with AMI-S10 as immersion sensor.
  • Page 5: Mechanical Design And Installation

    SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com TLR-D5 Engineering Manual Mechanical design and installation The unit consists of two parts: The base unit and the terminal. Installation base The housing of the TLR base unit is a compact enclosure. The controller may be mounted in any orientation by surface mounting on a wall or in a cabinet with two screws or on a 35mm DIN rail.
  • Page 6: Display And Operation

    SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com TLR-D5 Engineering Manual Display and Operation The operation terminal uses an LCD display and four operation buttons. Legend: 4-digit display of current value, time, control parameter or setpoint Unit of displayed value, °C, °F, % or none...
  • Page 7: Error Messages

    Clock Operation and Time Schedules (Deluxe Version) TLR-D5-D contains a real time clock. Up to 16 mode changes (not defined, Off, Economy, Comfort, University mode) based on weekdays and time may be programmed. See chapter operation on how to program switch times.
  • Page 8: Accessing Advanced Settings

    SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com TLR-D5 Engineering Manual Operation of the terminal unit Switching ON The unit is switched on by pressing the POWER button. It will start up in comfort mode. Changing between COMFORT and ECONOMY Pressing the POWER button for less than 2 seconds toggles between ECONOMY and COMFORT modes. Economy mode may be disabled with UP06.
  • Page 9 Clock settings The remote controller contains a daytime clock. The receiving TLR-D5 controller will adopt the OPR-1’s own clock whenever it received a command from it. In order to set the clock in the OPR-1, press HOUR and MINUTE button together until the clock starts blinking. Then set the correct time with the HOUR and MINUTE buttons.
  • Page 10: Setting Of Parameters

    TLR-D5 Engineering Manual Setting of parameters The TLR-D5 is an intelligent controller and can be adapted to fit perfectly into your application. The control operation is defined by parameters. The parameters are set during operation by using the standard operation terminal.
  • Page 11: Control Functions

    SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com TLR-D5 Engineering Manual Control Functions The controller is designed to control fan coil systems with up to three fan speeds. The fan speeds may be controlled to s. The fan speeds may be controlled to run manual or automatic.
  • Page 12: Input Configuration

    Temperature input Temperature input Accuracy in Kelvin, The TLR-D5 includes an NTC-based passive temperature sensor. A The TLR-D5 includes an NTC-based passive temperature sensor. A Temperature Input sensor of the same type can be connected as alternative control input or sensor of the same type can be connected as alternative control input or as input for additional functions.
  • Page 13: Output Configuration

    Set user settings (UP) Configuration parameters for firmware version 2.2 The TLR-D5 can be adapted to a wide variety of applications. The adaptation is done through parameters. The parameters can be changed on the unit without the need of additional equipment.
  • Page 14 SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com TLR-D5 Engineering Manual Control Parameters (Access Code: 241) Setpoint limitations Parameter Range Default Description  FC 00 Minimum setpoint limit in Heating mode -40…215° 16°C (61°F) FC 01 Maximum setpoint limit in Heating mode -40…215° 24°C (76°F)
