Installation instruction
Installationsanleitung
Instruction de l'installation
Instrucción de instalación
Instrução de instalação
Istruzioni per l'installazione

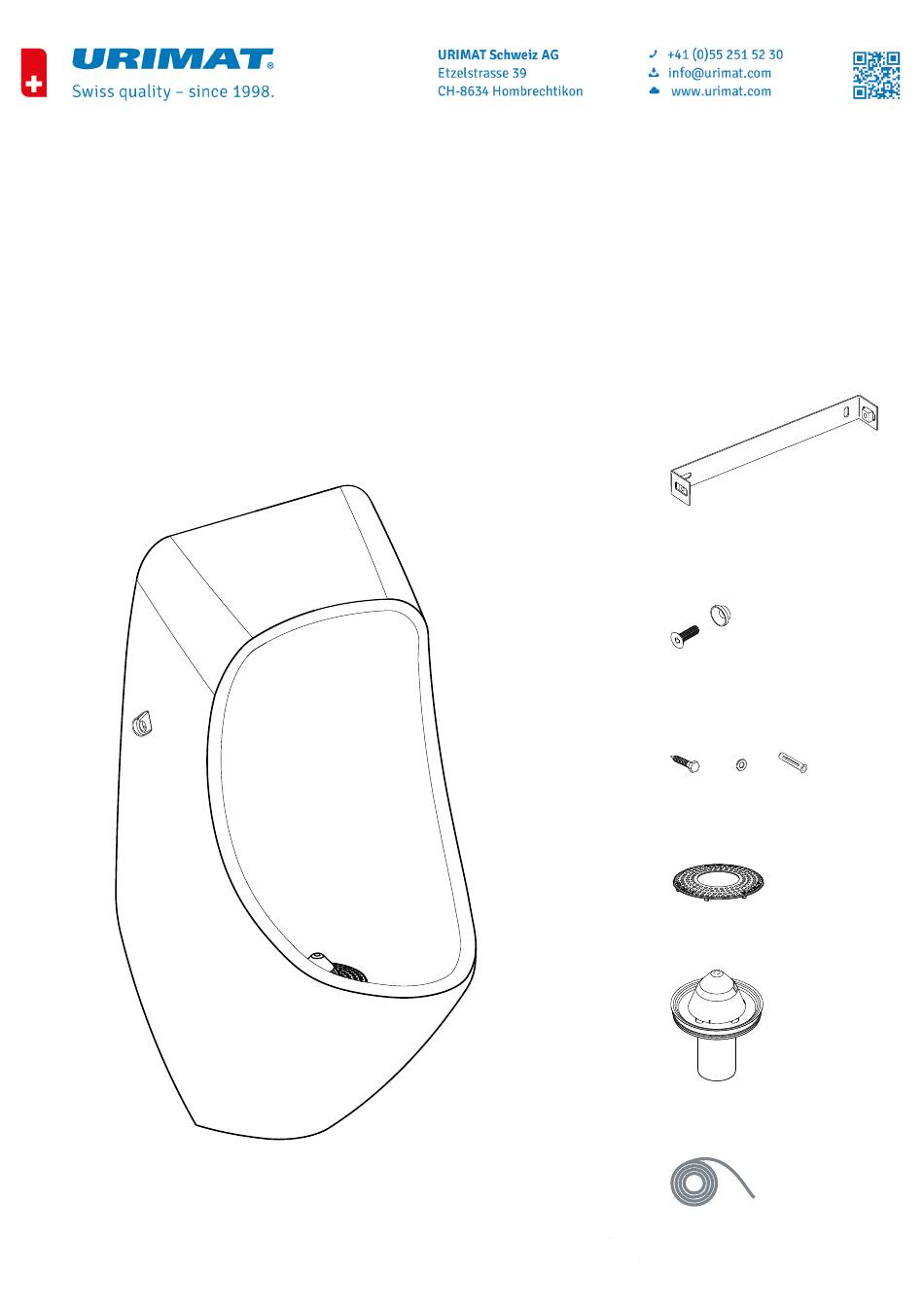

1 x 20.001 ECO
URIMAT ECO
Art. 15001
1 x 58.405/ Mounting Bracket
2 x 57.350 / Nut
2 x 57.300 / Contersunk Screw
2 x 58.701 / Distance Washer - Bush
2 x Screw - Washer - Dowel
1 x 56.111 / Screen
1 x 52101 / MB Trap
1 x 66.010 / Seal
02.11.2021/mr/Rev.03
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for URIMAT ECO 15001
Summary of Contents for URIMAT ECO 15001
- Page 1 URIMAT ECO Installation instruction Installationsanleitung Art. 15001 Instruction de l'installation Instrucción de instalación Instrução de instalação Istruzioni per l'installazione 1 x 58.405/ Mounting Bracket 2 x 57.350 / Nut 2 x 57.300 / Contersunk Screw 2 x 58.701 / Distance Washer - Bush 2 x Screw - Washer - Dowel 1 x 56.111 / Screen...
- Page 2 Les écoulements d'eau résiduelles doivent être purgé Assicurarsi che tutte le grondaie siano pulite profes- avant le montage de l'urinoir URIMAT. Il faut assurer que sinally in caso di sostituzione orinatoi waterflushed la pierre d`urine et d'autre dépôt sont eliminé.
- Page 3 Installation Instalación Montage Instalacão Installation Installazione 700 mm Art.58.405 490 mm 350 mm (400 mm) Rear 2 x Art.57.302 570 mm (620 mm) Art.66.010...
- Page 4 MB-ActiveTrap Wechsel / Replacement / Scambio Cambio / Échange / Câmbio Change 50% used Ceramic Trap Remove 0,5l URIMAT 18.03.2021...
