Momentum
345M1
www.philips.com/welcome
EN User manual
1
Customer care and warranty 24
Troubleshooting & FAQs
28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Momentum 345M1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Philips Momentum 345M1

Summary of Contents for Philips Momentum 345M1

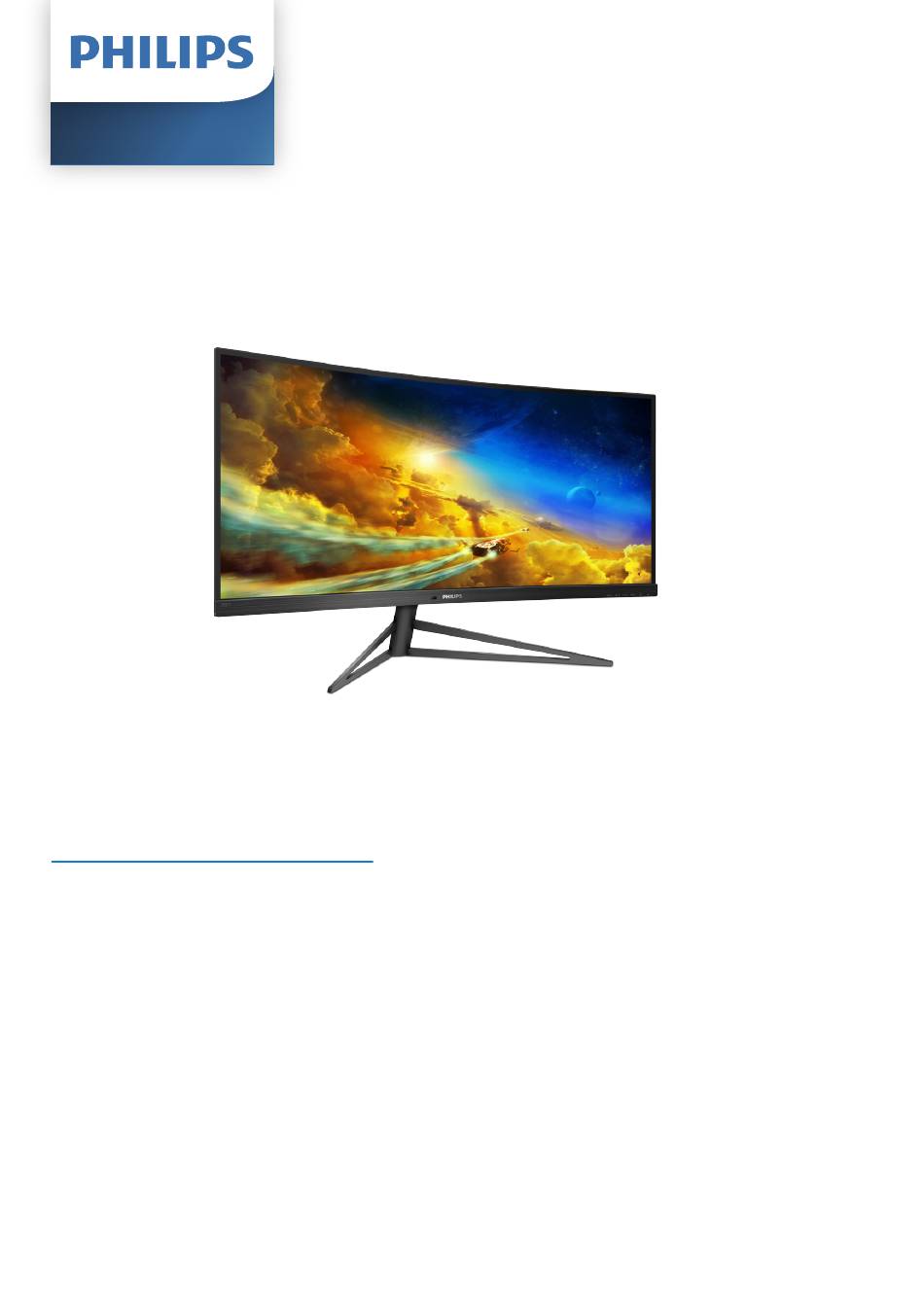

  • Page 1 Momentum 345M1 www.philips.com/welcome EN User manual Customer care and warranty 24 Troubleshooting & FAQs...

  • Page 2: Table Of Contents

    5.1 Resolution & Preset Modes ... 22 6. Power Management ....23 7. Customer care and warranty . 24 7.1 Philips’ Flat Panel Displays Pixel Defect Policy ......24 7.2 Customer Care & Warranty ..27 8. Troubleshooting & FAQs ..28 8.1 Troubleshooting ......28...

  • Page 3: Important

    1.1 Safety precautions and maintenance • Please use approved power cord provided by Philips at all times. If Warnings your power cord is missing, please Use of controls, adjustments or contact your local service center.
  • Page 4 1. Important degrees. If the -5 degree downward • In order to maintain the best tilt angle maximum is exceeded, the performance of your monitor and monitor damage will not be covered use it for a longer lifetime, please under warranty. use the monitor in a location that falls within the following • Do not knock or drop the monitor...

  • Page 5: Notational Descriptions

    1. Important service center. (Please refer to 1.2 Notational Descriptions Service contact information listed The following subsections describe in Regulation & Service Information notational conventions used in this Manual.) document. • For transportation information, please refer to “Technical Notes, Cautions and Warnings Specifications”.

  • Page 6: Disposal Of Product And Packing Material

    Equipment-WEEE From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily entails participation in national take- back initiatives and recycling programs This marking on the product or on...

  • Page 7: Setting Up The Monitor

    2.1 Installation Package contents Momentum 345M1 Quick Start Register your product and get support at www.philips.com/welcome 2. Hold the stand with both hands. Gently attach the stand to the VESA mount area until the latch locks the stand. Stand/Base I/O Cover...
  • Page 8 2. Setting up the monitor Connecting to your PC Fast Charger USB UP step 2 USB UP step 1 Connect to PC 1. Connect the power cord to the back USB downstream of the monitor firmly. USB downstream/USB fast charger 2.
  • Page 9 HDD, for example. The monitor must be powered ON at all times to be able to use this function. Some select Philips monitors may not Power or Charge your device when it enters to “Sleep” mode (White power LED blinking).

  • Page 10: Operating The Monitor

    What is On-Screen Display (OSD)? Description of the control buttons On-Screen Display (OSD) is a feature in all Philips LCD displays. It allows an end user to adjust screen performance or select functions of the displays directly through an on-screen instruction window.
  • Page 11 2. Setting up the monitor The OSD Menu Note Below is an overall view of the structure • MPRT: To reduce motion blur, LED of the On-Screen Display. You can use backlight will strobe synchronously this as a reference when you want to with screen refresh, which may work your way around the different cause noticeable brightness...

  • Page 12: Multiview

    Height adjustment Why do I need it? With the ultra high resolution Philips MultiView display, you can experience a world of connectivity in a comfortable way in the office or at home. With this display, you can conveniently enjoy multiple content sources at one screen.
  • Page 13 2. Setting up the monitor How to enable MultiView by OSD [PBP]: Picture by Picture menu? Open up a sub-window 1. Press button on the front bezel side-by-side of another to enter OSD Menu Screen. signal source. (main)      ...
  • Page 14 2. Setting up the monitor • PIP Size: When PIP is activated, • Off: Stop MultiView function. there are three sub-window sizes to choose: [Small], [Middle], [Large]. (main) Small Middle Large (main) Note When you do the SWAP function, the • PIP Position: When PIP is activated, video and its audio source will swap at there are four sub-window positions...

  • Page 15: Remove The Base Assembly For Vesa Mounting

    2. Setting up the monitor 2.4 Remove the Base Assembly for VESA Mounting Before you start disassembling the display base, please follow the instructions below to avoid any possible damage or injury. 0° 90° -5° 1. Place the display face down on a smooth surface.

  • Page 16: Image Optimization

    Mode,SmartUniformity and Off. in real time. Whether you're working with text applications, displaying images   or watching a video, Philips SmartImage  delivers great optimized display performance.   Why do I need it? ...
  • Page 17 • HDR Movie: Ideal setting for time. Developed for wellbeing, watching HDR movie. Deliver better Philips LowBlue Mode setting uses a contrast and brightness for more smart software technology to reduce realistic and immerse viewing harmful shortwave blue light.

  • Page 18: Smartcontrast

    3. Image Optimization 3.2 SmartContrast What is it? Unique technology that dynamically analyzes displayed content and automatically optimizes a Display's contrast ratio for maximum visual clarity and viewing enjoyment, stepping up backlighting for clearer, crisper and brighter images or dimming backlighting for clear display of images on dark backgrounds.
  • Page 19 3. Image Optimization • AMD Radeon R9 285 3.3 AMD FreeSync Premium • AMD Radeon R7 260X • AMD Radeon R7 260 • Processor A-Series Desktop and Mobility APUs • AMD A10-7890K PC gaming has long been an imperfect • AMD A10-7870K experience because GPUs and monitors •...

  • Page 20: Hdr

    4. HDR 4. HDR HDR Settings in Windows10 system. Steps 1. Right click on the desktop, enter to Display settings. STEP 5 2. Select the display/monitor. 3. Adjust resolution to 3440x1440 4. Turn the “HDR and WCG” to on mode. 5.

  • Page 21: Technical Specifications

    5. Technical Specifications 5. Technical Specifications Picture/Display Display Panel Type Backlight W-LED system Panel Size 34" W (86.36 cm) Aspect Ratio 21:9 Pixel Pitch 0.23175(W) x 0.23175(H) Contrast ratio(typical) 3000:1 Optimum Resolution 3440x1440@60Hz Viewing Angle 178° (H) / 178° (V) @ C/R > 10 (Typ.) Picture Enhancement SmartImage Game / SmartImage HDR Display Colors...
  • Page 22 5. Technical Specifications Power AC Input AC Input AC Input Voltage Consumption Voltage at Voltage at at 230VAC, 100VAC , 50Hz 115VAC , 60Hz 50Hz Normal Operation 76.7 W (typ.) 75.7 W (typ.) 74.8 W (typ.) Sleep (Standby mode) <0.5 W(typ.) <0.5 W(typ.) <0.5 W(typ.) Off mode...
  • Page 23 100% PVC BFR free housing Cabinet Color Black Finish Texture Note 1. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet. 2. SmartUniformity and Delta E information sheets are included in the box.

  • Page 24: Resolution & Preset Modes

    5. Technical Specifications Note 5.1 Resolution & Preset Modes Please notice that your display works best at native resolution of 3440x1440. Maximum Resolution For best display quality, please follow 3440x1440 @ 100 Hz (HDMI) this resolution recommendation. 3440x1440 @ 144 Hz (DisplayPort) Recommended Resolution 3440x1440 @ 60 Hz H.

  • Page 25: Power Management

    6. Power Management 6. Power Management If you have VESA DPM compliance display card or software installed in your PC, the display can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the display will 'wake up' automatically.

  • Page 26: Customer Care And Warranty

    Other combinations Pixel Defect Policy of lit and dark sub pixels appear as single pixels of other colors. Philips strives to deliver the highest quality products. We use some of the Types of Pixel Defects industry's most advanced manufacturing...
  • Page 27 Black Dot Defects the warranty period, a TFT Display panel Black dot defects appear as pixels or in a Philips flat panel display must have sub pixels that are always dark or 'off'. pixel or sub pixel defects exceeding the That is, a dark dot is a sub-pixel that tolerances listed in the following tables.
  • Page 28 7. Customer care and warranty BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 5 or fewer...

  • Page 29: Customer Care & Warranty

    Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below.

  • Page 30: Troubleshooting & Faqs

    • Disconnect the display from mains solutions, contact Philips customer power source immediately for safety service representative. • Contact with Philips customer Common Problems service representative immediately. No Picture (Power LED not lit) Imaging Problems • Make sure the power cord is...

  • Page 31: General Faqs

    Please reconnect your Philips LCD display. refer the pixel policy for more detail. • Turn on your display and then turn The "power on" light is too strong and on your PC.
  • Page 32 Can I connect my LCD display to soft cloth. For extensive cleaning, any PC, workstation or Mac? please use isopropyl alcohol. Do Ans.: Yes. All Philips LCD displays are not use other solvents such as fully compatible with standard ethyl alcohol, ethanol, acetone, PCs, Macs and workstations.

  • Page 33: Multiview Faqs

    Ans.: Regulation & Service Information Always activate a moving screen Manual can be download on the saver program when you leave Philips website support page. your display unattended. Always activate a periodic screen refresh application if your LCD 8.3 Multiview FAQs display will display unchanging static content.
  • Page 34 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are regis- tered trademarks of Koninklijke Philips N.V. and are used under license.
