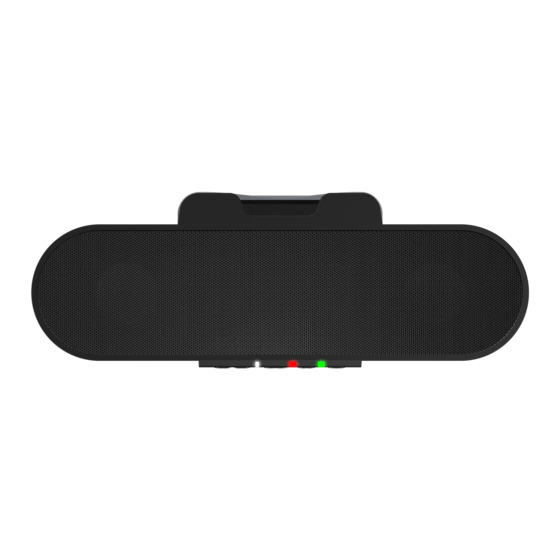

Cyber Acoustics CA-2890PRO Quick Start Manual

Cyber Acoustics CA-2890PRO Quick Start Manual

Usb & bt speaker bar

Advertisement

Quick Start Guide
Cyber Acoustics
USB & BT Speaker Bar –
Pro Edition
(CA-2890PRO)
Use at Home or Office
www.CyberAcoustics.com
CA P/N: CA-2890PRO Rev. A00
2023-07

Advertisement

loading
Need help?

Need help?

Do you have a question about the CA-2890PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cyber Acoustics CA-2890PRO

  • Page 1 Quick Start Guide Cyber Acoustics USB & BT Speaker Bar – Pro Edition (CA-2890PRO) Use at Home or Office CA P/N: CA-2890PRO Rev. A00 www.CyberAcoustics.com 2023-07...
  • Page 2 CA P/N: CA-2890PRO Rev. A00 www.CyberAcoustics.com 2023-07 Quick Start Guide USB Type C to A Adapter Note: The USB Type C to A Adapter is attached on the USB C cable. Cyber Acoustics USB & BT Speaker Bar – Pro Edition (CA-2890PRO)
  • Page 3: Table Of Contents

    Table of Contents Pages Getting Started - USB Connection Getting Started - Bluetooth Connection Lights Controls Technical Specifications Frequently Asked Questions 7,8,9 Customer Support & Safety and Precautions Compliance Information 11,12...
  • Page 4: Getting Started - Usb Connection

    Getting Started - USB Connection The Cyber Acoustics Speaker Bar is used with a USB connection to your Windows PC or Mac and can also be connected at the same time to your smartphone or tablet with Bluetooth. USB connection - Using with a PC or Mac - Insert the USB Type C end of the Speaker Cable into the USB Type C port on your computer.
  • Page 5: Getting Started - Bluetooth Connection

    - To disconnect the current device, press and hold down the Multi-Function Button for 5 seconds. - The Source Light will begin flashing blue and the Cyber Acoustics Speaker Bar is ready for the next device to pair and connect.
  • Page 6 With your iPhone, iPad/Tablet, Smartphone - Go to Settings > Bluetooth, check Bluetooth is on - Select 'CA-2890PRO Speaker Bar' when it appears under DEVICES - Your device will connect in a few seconds - The Source Light will turn solid blue...
  • Page 7: Lights

    Lights Source Light USB Type A or Type C Setting Light USB mode: Solid Green Off: The speaker volume and EQ will be optimized for power available from a USB Type A port. Bluetooth mode: Flashing Blue – Ready to pair with smartphone Solid White: The speaker volume and EQ will be or tablet optimized for the higher power available from a...
  • Page 8: Controls

    Controls Multi-Function Button Press twice to switch between Bluetooth and USB mode Press and hold for 5 seconds to disconnect the connected smartphone or tablet Press once to Answer/End a call or Play/Pause music - Music will pause automatically when there is an incoming call from a smartphone Press twice to reject an incoming call When talking, press once to mute the mic input;...
  • Page 9: Technical Specifications

    Technical Specifications Specifications Power • 5V / 3A – USB-C Power Source, 5V / 1A – USB-A Power Source • USB-C 5W when playing music (2.5W x 2) • USB-A 3W when playing music (1.5W x 2) • Speaker: 80 - 16,000Hz Frequency response •...
  • Page 10: Frequently Asked Questions

    To start a new pairing with your Bluetooth device, select “Forget this device,” to remove the “CA-2890PRO Speaker Bar” from the list. You may need to turn off the Bluetooth function on your device to fully clear your list.
  • Page 11 • Open System Preferences, then click Sound. Speaker Bar does not set up automatically • Select the Input tab, then select “CA-2890PRO Speaker Bar”. Make sure that the mute button isn’t selected. • Select the Output tab, then select “CA-2890PRO Speaker Bar”. Make sure that the mute button isn’t selected.
  • Page 12 Frequently Asked Questions Frequently Asked Questions Possible Solutions - Check the computer’s volume level. USB connection Speaker Bar does not have sound / - Check the proper seating of the USB cable connection. Microphone is not working - Verify the application settings you are using. Some applications have a separate volume level control.
  • Page 13: Customer Support & Safety And Precautions

    Customer Support If you have a question about your Cyber Acoustics Speaker Bar, our Customer Service Team wants to assist you. Contact us at: www.cyberacoustics.com/support/contact Safety and Precautions - Read and follow all instructions – All operating and use instructions should be followed.
  • Page 14: Compliance Information

    Unique Identifier: (CA-2890PRO) Responsible Party - Cyber Acoustics, Inc. 3109 NE 109th Ave., Vancouver, WA 98682 cyberacoustics.com Compliance Information Statement: FCC Part 15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
  • Page 15 RF exposure statement This equipment meets the exemption from the routine evaluation limits in section 2.5 of RSS-102. It should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. Cet équipement est conforme à l'exemption des limites d'évaluation habituelle de la section 2.5 de la norme RSS-102.
  • Page 16 Unique Identifier: (CA-2890PRO) Responsible Party - Cyber Acoustics, Inc. 3109 NE 109th Ave., Vancouver, WA 98682 cyberacoustics.com Compliance Information Statement: FCC Part 15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
