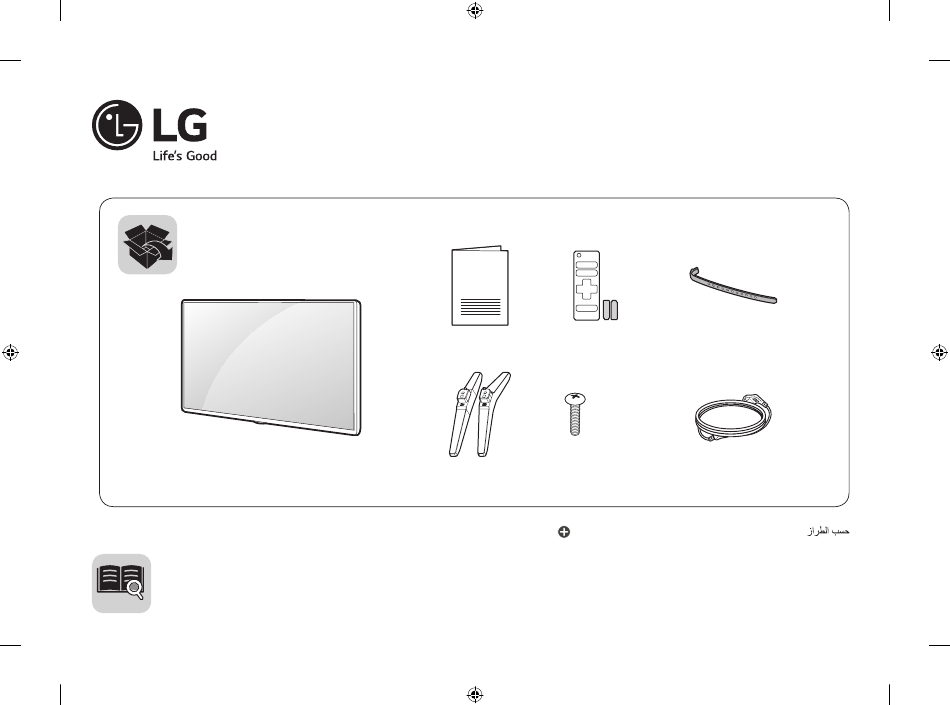

- Page 1 LED TV LU34* LU54* (M4 X L16) : Depending on model / Tergantung pada modelnya / www.lg.com...
- Page 4 ANTENNA/ CABLE IN HDMI IN USB IN H/P OUT H/P OUT OPTICAL DIGITAL AUDIO OUT...
- Page 5 H/P OUT OPTICAL DIGITAL AUDIO OUT CLOCK COMPONENT IN AV IN VIDEO/Y L/MONO AUDIO R VIDEO/Y L/MONO AUDIO R...
- Page 6 COMPONENT IN AV IN VIDEO/Y P L/MONO AUDIO R VIDEO/Y P L/MONO AUDIO R VIDEO AUDIO VIDEO L/MONO AUDIO R...
- Page 7 HDMI-DVI IN RGB IN RGB IN HDMI IN VIDEO/Y P L/MONO AUDIO R VIDEO/Y P L/MONO AUDIO R AUDIO OUT AUDIO OUT DVI OUT RGB OUT...
- Page 10 32LU340C-TB 84.0 4.90 4.85 32LU540H-TB AC 100-240 V ~ 50 / 60 Hz Power requirement / Persyaratan daya /...
- Page 13 OWNER’S MANUAL Safety and Reference LED TV* LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com *MFL71693905* Copyright © 2018 LG Electronics Inc. All Rights Reserved.
- Page 14 Warning! Safety Instructions • Ventilation - Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. - Do not install the product on a carpet or cushion. - Do not block or cover the product with cloth or other materials while unit is plugged in.
- Page 15 Unauthorized modification could void the user’s authority to operate this product. • Use only an authorized attachments / accessories approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction, or product damage. • Never disassemble the AC adapter or power cord. This may result in fire or electric shock.
- Page 16 Preparing Separate Purchase Separate purchase items can be changed or modified for quality • If the TV is turned on for the first time after it was shipped from the improvement without any notification. Contact your dealer to buy these factory, initialization of the TV may take a few minutes.
- Page 17 Lifting and moving the TV Mounting on a Table Please note the following advice to prevent the TV from being scratched 1 Lift and tilt the TV into its upright position on a table. or damaged and for safe transportation regardless of its type and size. • Leave a 10 cm (minimum) space from the wall for proper ventilation.
- Page 18 Attaching the TV to a Desk Using the Kensington security system The TV should be attached to a desk so it cannot be pulled in a forward/ backward direction, potentially causing injury or damaging the product. • Image shown may differ from your TV. The Kensington security system connector is located at the rear of the A type TV.
- Page 19 LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please...
- Page 20 Connections External Devices Available external devices are: Blu-ray player, HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and Connect various external devices to the TV and switch input modes to other external devices. select an external device. For more information of external device’s •...
- Page 21 External Speakers Method of Volume control Port (Depending on model) • Cable Spec. Each Up / Down pin is pulled to 3.3 V with EXTERNAL CPU GPIO. SPEAKER OUT VOLUME GND / UP / DOWN CONTROL CPU detects transition from 3.3 V to GND level Control port for Speaker out for volume control.
- Page 22 Using Button Network Wired network connection You can simply operate the TV functions, using the button. This TV can be connected to a Pro:Centric server via the LAN port. After making the physical connection, the TV needs to be set up for network communication.
- Page 23 Adjusting the Angle of the Using Remote Control TV to suit view (Depending on model) The descriptions in this manual are based on the buttons on the remote Swivel 20 degrees to the left or right and adjust the angle of the TV to control.
- Page 24 (POWER) Turns the TV on or off. Adjusts the brightness of the screen to reduce energy consumption. Selects an AV mode. Changes the input source. Selects Radio, TV and DTV programme. Number buttons Enters numbers. Accesses the saved programme list. Returns to the previously viewed programme.
- Page 25 Troubleshooting (Settings) Accesses the Settings menu. Accesses the Quick menus. Navigation buttons (up/down/left/right) Scrolls through menus or options. The software version can be updated for improvement in performance. Selects menus or options and confirms your input. Customer needs to ensure the compatibility of customer’s equipment Returns to the previous level.
- Page 26 Abnormal display • If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product. • This panel is an advanced product that contains millions of pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel.
- Page 27 Specifications (Depending on country) Broadcasting Specifications Digital TV Analogue TV PAL B/B, PAL B/G, PAL D/K, PAL-I DVB-T/T2 Television system SECAM B/G, SECAM D/K DVB-C NTSC-M Programme coverage VHF, UHF VHF, UHF, CATV Maximum number of 2,000 storable programmes External antenna 75 Ω...
- Page 28 HDMI/DVI-DTV supported mode HDMI/DVI-PC supported Mode • PC audio is not supported. Horizontal Vertical Resolution • Use HDMI IN 1 for PC mode (Depending on model) Frequency (kHz) Frequency (Hz) 31.46 59.94 Horizontal Vertical Resolution 640 x 480 Frequency (kHz) Frequency (Hz) 31.50 60.00...
- Page 29 Supported Photo Formats Supported Audio Formats File Extension Item Resolution Item Info type SOF0: baseline Bit rate 32 Kbps - 320 Kbps Available File SOF1: Extend Sequential Type Sample freq. 16 kHz - 48 kHz SOF2: Progressive Support MPEG-1, MPEG-2, Layer2, Layer3 .jpeg, .jpg, Minimum: 64 (W) x 64 (H) Bit rate...
- Page 30 Video MPEG-2, MPEG-4 Part2, XViD, H.264/AVC LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such HE-AAC, LPCM, ADPCM, MPEG-1 Layer I, .avi...
- Page 31 IR CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) Remote control Button Remote control Button (POWER) (Power On/Off) Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button...
- Page 32 EXTERNAL CONTROL DEVICE SETUP Phone jack Type (Depending on model) (TV) (PC) • You need to purchase the phone-jack to RS-232C cable required for RS-232C Setup the connection between the PC and the TV, which is specified in the RS-232C IN (CONTROL &...
-
Page 33: Table Of Contents
RS-232C Configurations Command Reference List (Depending on model) 7-Wire Configurations Data (Standard RS-232C cable) Command1 Command2 (Hexadecimal) 1 Power 00 to 01 2 Aspect Ratio (See p. 22) 3 Screen Mute (See p. 23) 4 Volume Mute 00 to 01 5 Volume Control 00 to 64 6 Contrast... -
Page 34: Command1 Command2
Transmission / Receiving Protocol 1 Power (Command: k a) ►To control Power On/Off of the set. (Depending on Model) Transmission Transmission [k][a][ ][Set ID][ ][Data][Cr] [Command1][Command2][ ][Set ID][ ][Data][Cr] Data 00 : Off Data 01 : On [Command1] : First command to control the TV. (j, k, m or x) [Command2] : Second command to control the TV. -
Page 35: Volume Control
3 Screen Mute (Command: k d) 6 Contrast (Command: k g) ►To select screen mute on/off. ►To adjust screen contrast. You can also adjust contrast in the picture settings. Transmission Transmission [k][d][ ][Set ID][ ][Data][Cr] [k][g][ ][Set ID][ ][Data][Cr] Data 00 : Screen mute off (Picture on) / Video mute off Data 01 : Screen mute on (Picture off) Data Min : 00 to Max : 64 Data 10 : Video mute on... -
Page 36: Tint
9 Tint (Command: k j) 12 Remote Control Lock Mode (Command: k m) ►To adjust the screen tint. ►To lock the front panel controls on the monitor and remote control. You can also adjust tint in the picture settings. Transmission Transmission [k][m][ ][Set ID][ ][Data][Cr] [k][j][ ][Set ID][ ][Data][Cr]... -
Page 37: Auto
15 Energy Saving (Command: j q) 17 Equalizer (Command : j v) ►To reduce the power consumption of the TV. You can also adjust ►To adjust equalizer. Energy Saving in picture settings. Transmission Transmission [j][v][ ][Set ID][ ][Data][Cr] [j][q][ ][Set ID][ ][Data][Cr] Power Saving Level Function... -
Page 38: Programme Skip/Add
19 Programme Skip/Add (Command: m b) 22 Input select (Command: x b) (Main Picture Input) ►To set skip status for the current Programme. ►To select input source for main picture. Transmission Transmission [m][b][ ][Set ID][ ][Data][Cr] [x][b][ ][Set ID][ ][Data][Cr] Data 00 : Skip Data Structure Data 01 : Add... - Page 39 * Real data mapping 00 : Step 0 Step 10 (Set ID 10) Step 15 (Set ID 15) 10 : Step 16 (Set ID 16) 64 : Step 100 6E : Step 110 73 : Step 115 74 : Step 116 CF : Step 199 FE :...
- Page 40 Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
