Dewenwils HDWT04B Instruction Manual

Four-zone automatic water timer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Four-Zone Automatic
Water Timer
SKU: HDWT04B
Please pay attention to the warning signs
Read the instructions with caution before operating
and keep it properly
V20914

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDWT04B and is the answer not in the manual?

Questions and answers

Related Manuals for Dewenwils HDWT04B

Summary of Contents for Dewenwils HDWT04B

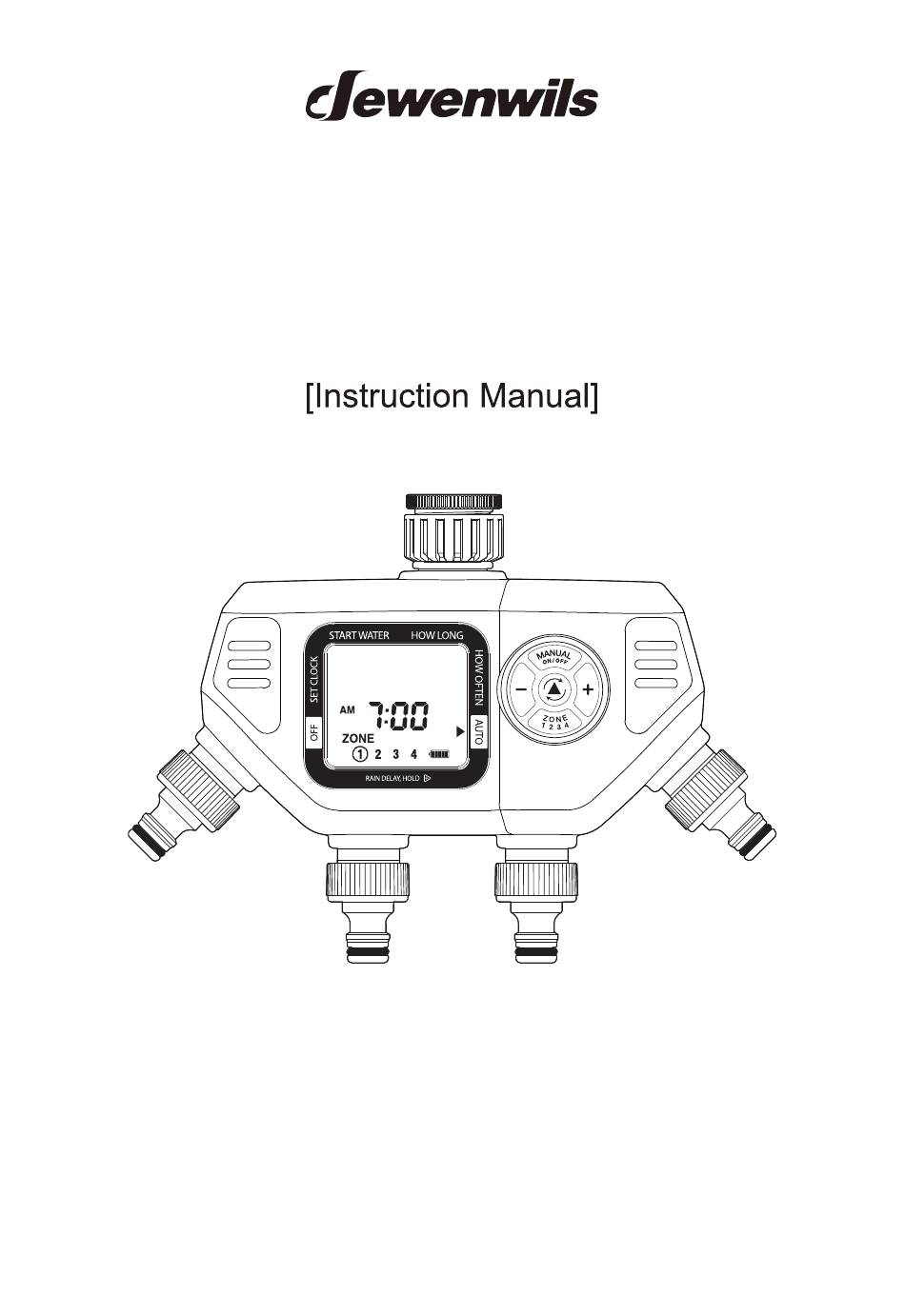

  • Page 1 Four-Zone Automatic Water Timer SKU: HDWT04B Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V20914...
  • Page 2 Manual Watering Button Toggle Button +/- Buttons Zone 1 2 3 4button ZONE ZONE ZONE ZONE Battery Indicator...
  • Page 3 We recommend relplacing batteries when the indicator reachaes...

  • Page 4: Setting The Clock

    Setting The Clock 1.Press the Cursor Button to move the Arrow Pointing to SET CLOCK. 2.Press the & buttons to adjust the clock to the current time. 3.Press the Cursor Button again to set the time and move to the next setting, Start Water.
  • Page 5 Select When To Water 1. With the arrow pointing to Start Water, use the & buttons to select the first time of the day you want to water. All remaining watering cycles during the day will be based on this time. 2.
  • Page 6 2. Press ZONE to change the zone. You must set How Long for each zone you are programming before proceeding. 3. Press the Cursor Button to move to the next setting. START WATER HOW LONG RAIN DELAY, HOLD Select How Often To Water 1.

  • Page 7: Auto Mode

    EVERY 1 DAY SUNDAY MONDAY TUESDAY WEDNESDAY THURSDAY FRIDAY SATURDAY EVERY WEEK EVERY 2 DAY SUNDAY MONDAY TUESDAY WEDNESDAY THURSDAY FRIDAY SATURDAY EVERY WEEK EVERY WEEK Auto Mode 1. After programming, the timer will be in Auto mode. 2. If the timer is not in Auto mode, press the Cursor Button to switch to Auto.
  • Page 8 START WATER HOW LONG RAIN DELAY, HOLD Rain Delay Mode 1. If there is rain in the forecast and you wish to temporarily stop watering, you can use Rain Delay. 2. Rain Delay Mode will stop all watering for up to 7 days. 3.

  • Page 9: Off Mode

    Off Mode 1. If you wish to stop watering for an extended period, push the Cursor Button until the arrow is pointing to OFF. The timer will not water automatically while in this mode. The screen will display the word OFF in large letters.

  • Page 10: Timer Reset

    3. The valve will open after a few seconds and automatically close after the selected time. START WATER HOW LONG RAIN DELAY, HOLD NOTE： The manual mode of both zones cannot be activated as long as any of zone is open. Timer Reset 1.

  • Page 11: Useful Tips

    Useful Tips BATTERY LIFE - Only use fresh long lasting alkaline batteries - Do not use rechargeable batteries - Turn off the unit when not in use - Remove the batteries before storage - Moisture sensor uses more energy - Frequently watering schedules can cause the batteries to drain faster CLEANING YOUR TIMER Your timer should be cleaned periodically.
  • Page 12 3) Turn the timer upside down and activate the MANUAL mode. This will open up the valves and allow you to run water into the output connectors. By doing this, you can see if there are any clogs in the water flow. Once you see the water flow is correct, deactivate the MANUAL mode.

  • Page 13: Specifications

    Specifications - Watering Duration: 1min-360min - Max. Water Pressure：120 psi - Battery：2 x AA batteries (not included) Packing List - Water Hose Timer x 1 - Instruction Manual x 1 One Year Limited Warranty Supported by our professional R&D team and QC team, we provide One Year Warranty for materials and workmanship from the purchase date.
