Sony WEGA KV-36FS12 Dimensions

KV-36FS12
RM-Y168 REMOTE CONTROL

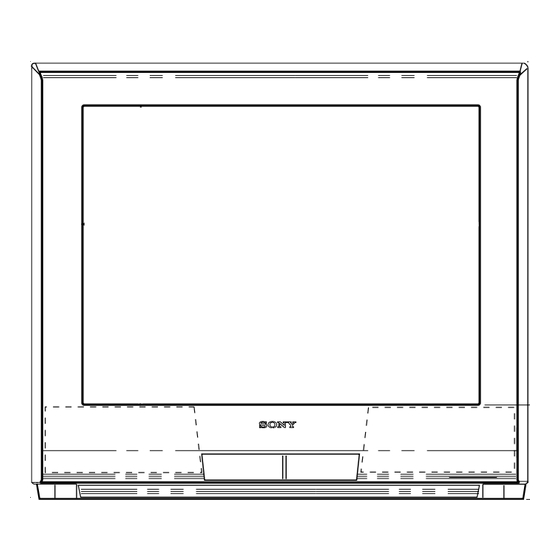

FRONT
VIEW
31 1/8"
BOTTOM
VIEW
25 5/8"
NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .
Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 986 3062 • b2b.sel.sony.com
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.
MODEL:
DESCRIPTION:
DESCRIPTION:
DIMENSIONS
DIMENSIONS
(WHD):
(WHD):
35 7/8" x 31 1/8" x 25 5/8"
WEIGHT:
WEIGHT:
35 7/8"
29 1/2"
22 3/8"
®
36" VEGA
POWER
Monitor/Receiver
REQUIREMENTS:
POWER
CONSUMPTION:
223 lbs
120V AC
60Hz
190w(max
1w(stby)
5 7/8"
