FX-AirRECEIVER
Wireless gateway
Amazing radius for wireless M-Bus
Connects easily to Fidelix FX-controllers
or other Modbus TCP clients
Communicate with up to 500 wireless
M-Bus devices
Supports AES128 encrypting
Possibility to send data directly to a
cloud-server via 4G/5G or wired internet
connection
Manage measurements

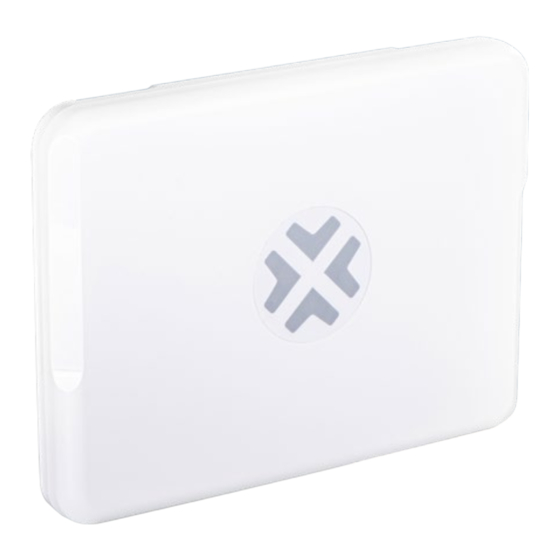

The Fidelix FX-AirRECEIVER is a unit that collects
data from wireless M-Bus devices and offers it to
external Modbus clients as a Modbus TCP-server.
Alternatively, the wireless M-Bus data can be sent
to the cloud by using the 4G/5G network or a
wired landline. The unit has two internal antennas
for improved range. The FX-AirRECEIVER is
meant for indoor installation in residential and
commercial properties and is to be powered
with 230 VAC.
Technical features
Operation temperature:
Dimensions:
240 x 180 x 33 mm
Power consumption:
Communication:
868 MHz (WMBus)
wireless
-20..55°C
<5W, 230 VAC
Advertisement
Summary of Contents for Fidelix FX-AirRECEIVER
- Page 1 Possibility to send data directly to a cloud-server via 4G/5G or wired internet connection Manage measurements Technical features The Fidelix FX-AirRECEIVER is a unit that collects Operation temperature: -20..55°C Dimensions: 240 x 180 x 33 mm data from wireless M-Bus devices and offers it to Power consumption: <5W, 230 VAC...
- Page 2 RED (2014/53/EU) Wireless MBus EN13757-4 Placement: The indoor range between the Fidelix FX-AirRECEIVER and a wireless M-Bus transmitter device is normally 50 to 100m. The range depends largely on the building type and construction method. In general, the following applies: •...
- Page 3 The product’s packaging can be disposed of as corrugated cardboard according to the relevant regulations. After use, the product is classified as electrical waste and is disposed of according to the relevant regulations. The unit can also be returned to the manufacturer. www.fidelix.com...
