Read the Information for Use and the Safety Instructions
carefully. Subject to modification without prior notice.
Typographical and other errors do not justify any claim for
damages. Modification of the product is prohibited.
This manual is designed for electricians, system administrators,
and product users.
All product names and trademarks mentioned in this manual are
trademarks of their respective owners.
Except for internal use, relinquishment of the instructions to a
third party, duplication in any type or form - also extracts - as
well as exploitation and / or communication of the contents is not
permitted.
Downloads and more information at:
www.ecue.com
SYMPL input Node
Information for Use
Edition:
18.07.23 [EN_SYMPL_input_Node_Setup_v3p0]
Published by:
Traxon Technologies Europe GmbH
Karl-Schurz-Strasse 38
33100 Paderborn, Germany
©2023 Traxon Technologies Europe GmbH
All rights reserved
Traxon Technologies Europe GmbH
Sales Operations
Karl-Schurz-Str. 38
33100 Paderborn, Germany
+49 5251 54648-0
support@ecue.com
AB444200035
e:cue

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SYMPL input Node and is the answer not in the manual?

Questions and answers

Summary of Contents for ECUE SYMPL input Node

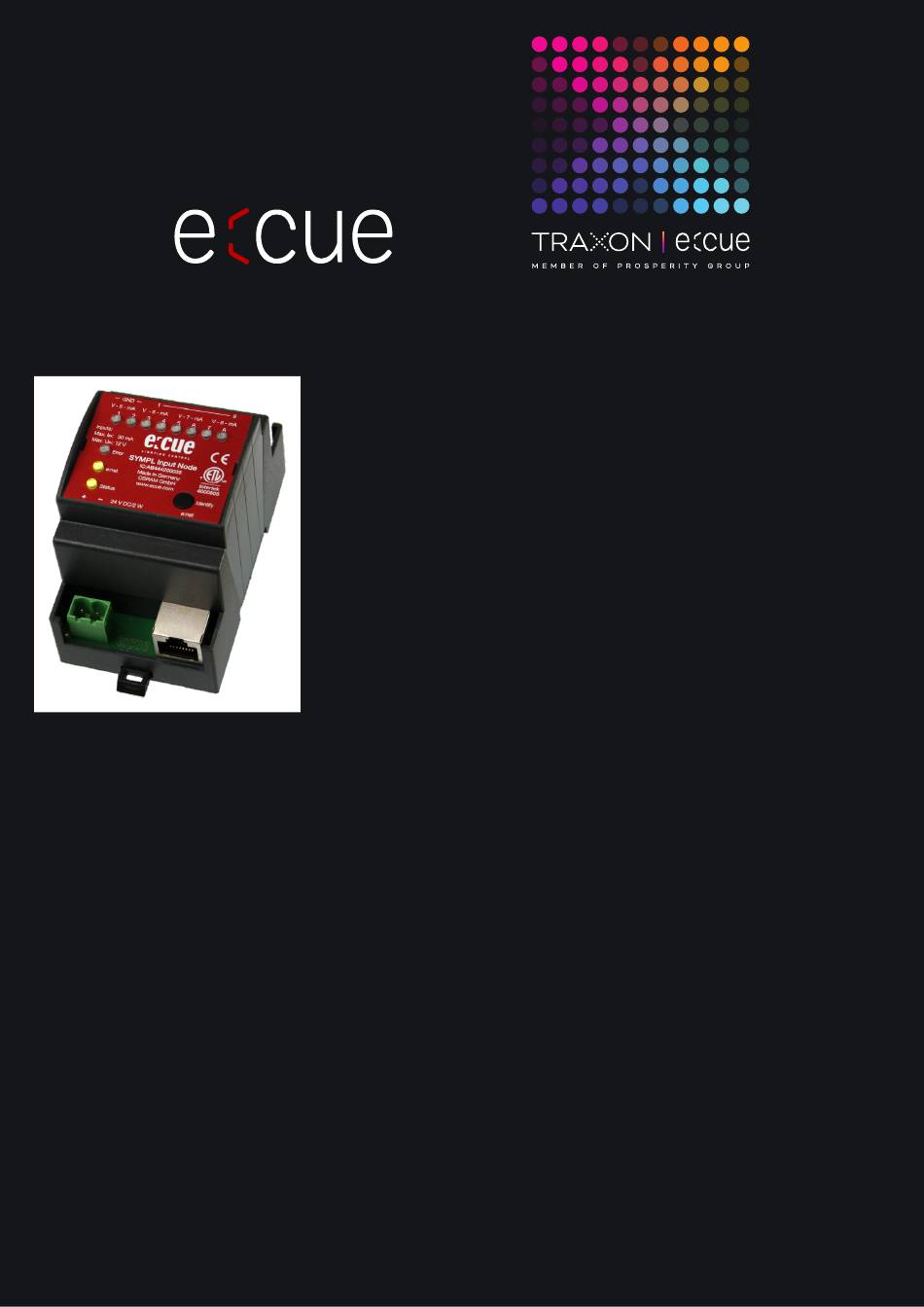

  • Page 1 AB444200035 e:cue SYMPL input Node Information for Use Edition: Read the Information for Use and the Safety Instructions 18.07.23 [EN_SYMPL_input_Node_Setup_v3p0] carefully. Subject to modification without prior notice. Typographical and other errors do not justify any claim for Published by: damages. Modification of the product is prohibited.
  • Page 2 SYMPL input Node — Information for Use Table of Contents Safety instructions Symbols General instructions General device description Delivery content Product specifications Connectors and interfaces User interface: LEDs Identify button: Identification & Reset General remarks Transport Unpacking Warranty regulations Maintenance and Repair...

  • Page 3: Safety Instructions

    Power-over-Ethernet. It is easily mounted on standard 35 mm DIN rails, or with a key hole in the housing base on walls or on any stable vertical surface. The e:cue SYMPL input Node is a simple, reliable and easy to use interface solution for e:cue lighting control solutions with SYMPHOLIGHT.
  • Page 4 SYMPL input Node — Information for Use | General device description Delivery content Delivery content for the e:cue SYMPL input Node (AB444200035): e:cue SYMPL input Node Safety instructions Welcome note Product specifications Dimensions (W x H x D) 53.5 x 90.5 x 62 mm/ 2.1 x 3.6 x 2.4 in (excl.
  • Page 5 (Vcc+, Vcc– left to right) e:net / Ethernet „4.3 Ethernet connection“ on page 08 User interface: LEDs The SYMPL input Node has 11 LEDs on the front panel. The 11 LEDs show the basic states of the  SYMPL input Node. content LEDs Status On: If constantly on, the device is online.

  • Page 6: General Remarks

    Only transport the device in its original packaging. This protects the device from damage. Unpacking Only unpack the e:cue SYMPL input Node at its installation location. To protect the device against  condensation water, unpack it and wait until all moisture remaining in the device has evaporated.

  • Page 7: Installation

    Indoor Mounting process The e:cue SYMPL input Node is designed to mount onto a 35 mm DIN rail (EN 60715) in a vertical position. Clip the device to the rail from top. Gentle pressure is then applied to the top front to snap it in place. The SYMPL input Node has been mounted successfully.

  • Page 8: Network Configuration

    Power supply Connect the SYMPL input Node to a certified NEC Class 2 24 V DC power supply unit. Present power supply equates to the status “On” or running of the SYMPL Node. To connect the device to a power supply unit, use the provided 2-pole terminal and lay the wires as stated on the front label.
  • Page 9 To change the network configuration use either SYMPHOLIGHT or the web interface of the SYMPL input Node: Network configuration with SYMPHOLIGHT Open the context menu of the SYMPL input Node in the Setup tab of SYMPHOLIGHT by a right-click on the device. Select “Configure Network”: Define the IP address, the subnet mask and the DHCP settings to your needs: ...

  • Page 10: Firmware Update

    (ESD protection). Disconnect all attached cables. Dismount the e:cue SYMPL input Node from the rail by pulling the black DIN rail handle and unhitching the SYMPL input Node. The dismounting is completed.

  • Page 11: Application Examples

    SYMPL input Node — Information for Use | Certifications Certifications Conforms to UL Std. 62368-1 4000805 Certified to CSA Std. C22.2 NO. 62368-1 Dimensions All dimensions in mm 53.5  content 90.5 10 Application examples Mode switch for input set to 0 ... 20 mA.
  • Page 12 12 V DC – The mode switches have to be set to voltage input. Otherwise the e:cue SYMPL input Node might get damaged. Please check for the latest updates and changes on the Traxon website. © 2023 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED.
