AMG AMG2747 Instruction Manual

4 Channel Video TX Unit with 4 bi-directional data

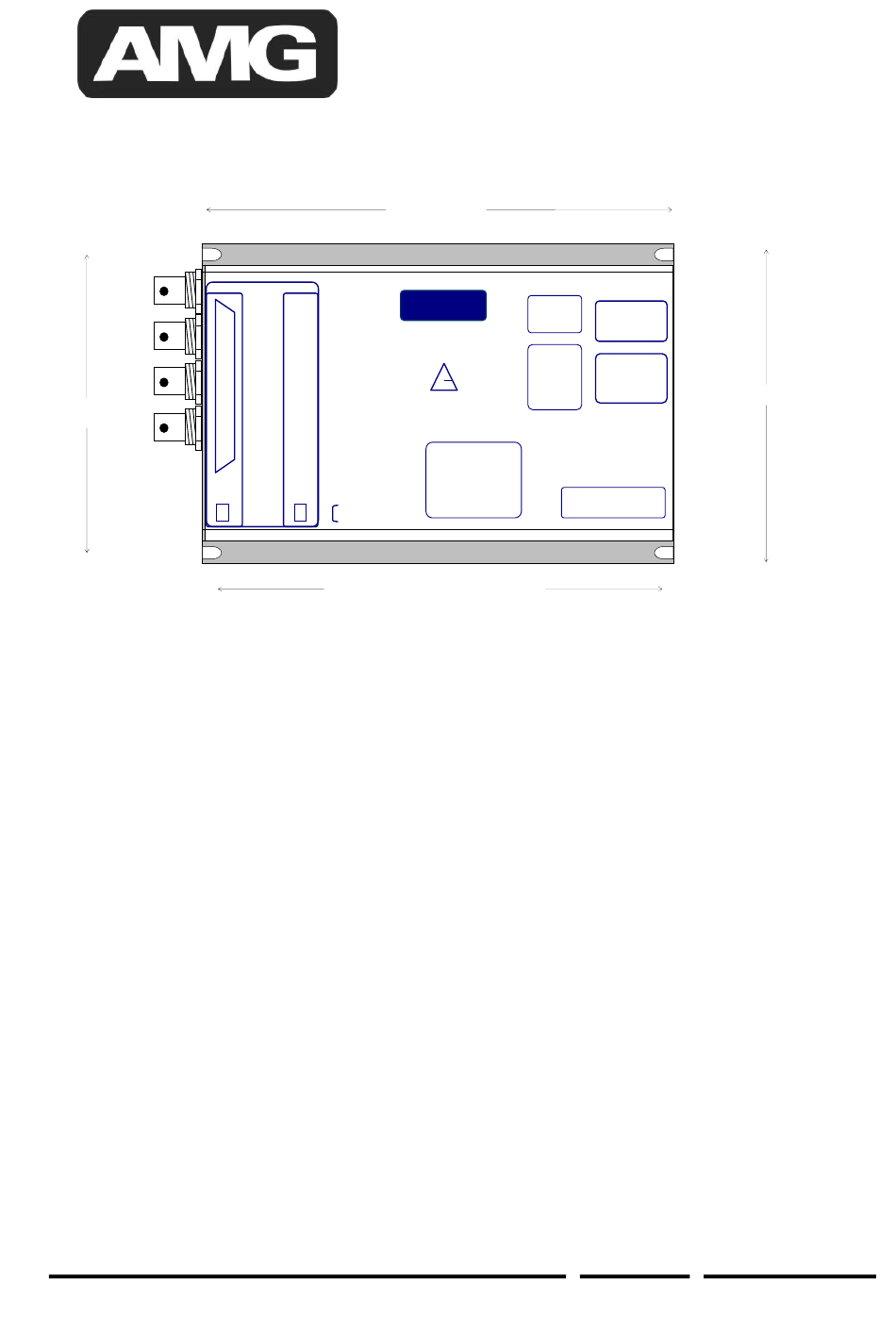

REAR PANEL CONNECTIONS
122mm Between
Slot Centres
POWER
The AMG2747 is a four channel video transmit unit. It also has the capacity to transmit and receive
four data and four audio signals. The data and audio interfaces are enabled by fitting data and audio
interface daughter boards. All the signals are transmitted and received over two single mode optical
fibres. The AMG2747 is a standalone unit.
The AMG27447 is designed to operate with AMG2748R four channel video receive unit with four
channels of bi-directional audio and with four channels of bi-directional data.

Connections

Video Output Connections
No of Channels ....................................4
Connectors ......................................... 75 ohm BNC Socket.
Input Impedance .................................. 75 ohm terminated.
Input Level ........................................... 1 volt p-p nominal
Frequency Response .......................... 10Hz to 5.75MHz min.
Data And Audio Connections
No. of Data Channels .......................... 4
No. of Audio Channels ......................... 4
Connector ........................................... All on one 37 way D-Type female connector - shielded.
Connections......................................... See below for connection and configuration
AMG Systems Ltd. reserves the right to make changes to this document without
notice. The information herein is believed to be accurate. No responsibility is
assumed by AMG for its use.
And 4 bi-directional audio
Data VIDEO
CH 1
CH 2
OPTO
IN
CH 3
OPTO
OUT
DATA
CH 4
CONNECTIONS
See instruction
sheet
POWER
GND
+12- 16 Volts dc
155mm between mounting slot centres
Instruction Manual
167mm Overall
FRONT PANEL INDICATORS
AMG
OPTO SYNC
RX
TX O O
VIDEO PRESENT
CH 1 CH2
O O
*
CH 3 CH4
O O
2747
4 CHANNEL VIDEO
TRANSMIT
+
4 BI-DIRECTIONAL
DATA/AUDIO
(4mm slots)
AMG2747
DATA CHANNELS
O
RX O RX
CH1 CH3
O
TX O TX
O
RX O RX
CH2 CH4
O
TX O TX
AUDIO CHANNELS
O
CH1 TX O RX
O
CH2 TX O RX
O
CH3 TX O RX
132mm Overall
O
CH4 TX O RX
POWER
O O
Page 1 of 5 AMG2747 Instruction
Sheet D15261-03
