The LRF120VPR1L is an RF receiver operating at a fixed frequency of 340 MHZ. It operates from 120VAC and provides
one polarity reversing output for use with a four/six lead AC motor. The receiver is not designed to operate with any
existing hand or drum switch. The receiver is equipped with a manual toggle switch. An additional latching output is
available for connecting to a 120VAC light. Up to twelve, three-button keyfob transmitters can be used to activate the
receiver's relay. The receiver has a terminal block for connecting the power and relay contacts. Each transmitter has a
unique address that is transmitted when a button is pressed. A "program" button is provided on the receiver to program
the transmitter(s) address into the receiver's memory. An LED on the receiver indicates the receiver's programming status
and illuminates when the receiver is energized. The receiver is encased in a waterproof enclosure. The operating range is
approximately 500 ft. Operating temperature range is 0°F to 160°F.
Polarity Reversing Output: The transmitter has two buttons assigned to the motor output. The up (^) button runs the
motor in one direction and the down (v) button runs the motor in the opposite direction. The reversing function
accomplished by reversing the phase on two of the four motor connections at the receiver output.
Manual Switch: The receiver is equipped with a manual switch. This switch replaces any hand or drum switch previously
connected to the motor.
Light Output: The light output is activated using the "B" button on the transmitter. Press button "B" once to latch this
output on. Press button "B" again to turn the light output off. The light function is active at all times and does not require
the power up sequence to be performed.
Maximum Ratings: Power for the receiver can be in the range of 100VAC to 132VAC. The relay contacts are rated at 20
Amps.
LRF120VPR1L
Instruction Manual

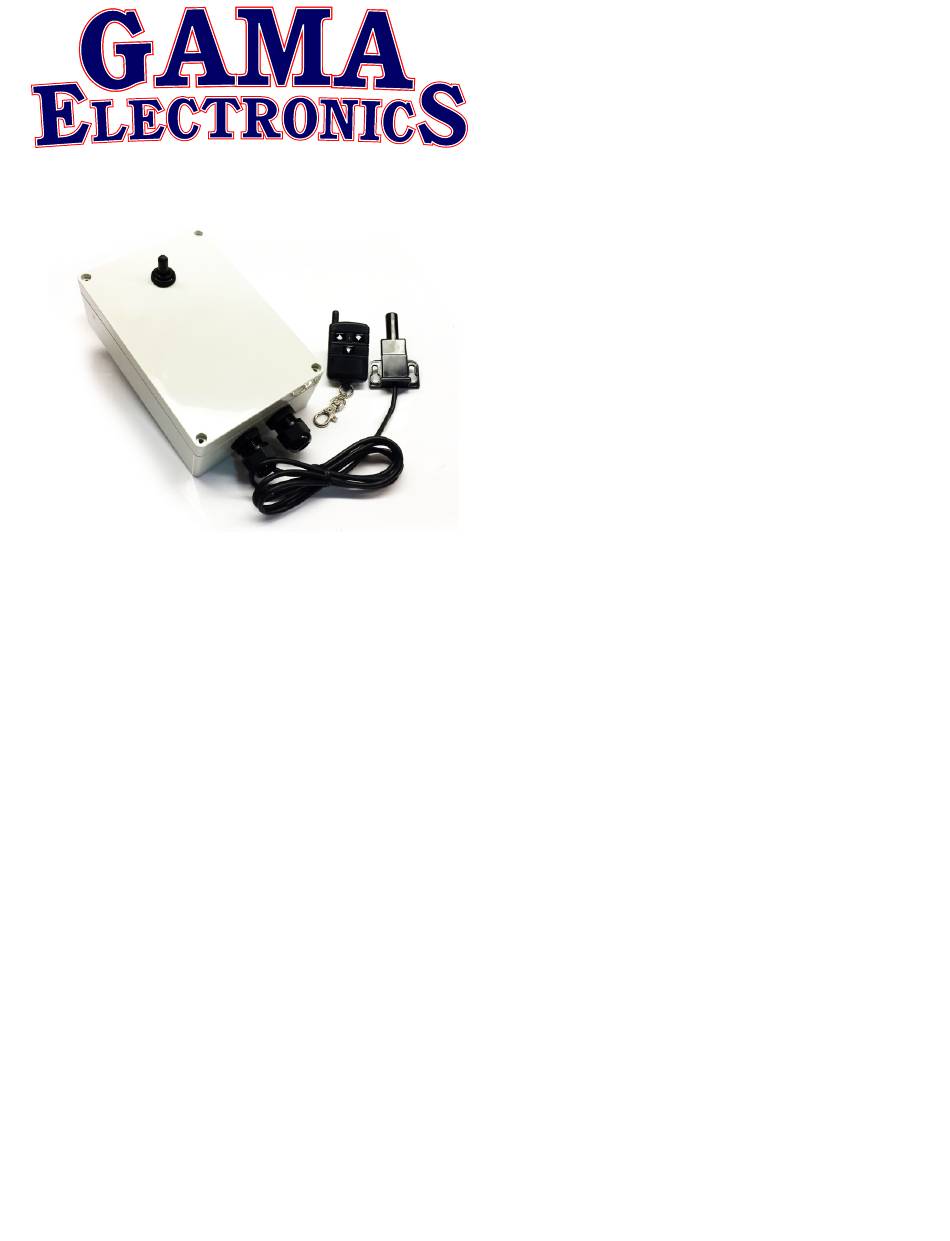

Included in this Kit:
(1) LRF120VPR1L Receiver
(1) 3-Button Transmitter with Light
(1) Long Range Antenna LRA340
Available accessories:
- Wireless Outdoor Keypad KP340-DRC
- 3-Button Waterproof Transmitter KF340-3L-WP
- Rechargeable Transmitter GKF-WPTX-3L
- 3-Button Keyfob Transmitter KF340-3
**See PAGE 3 FOR SETUP**
