ITF Isolation Transformer

Operation Manual

Please read this manual carefully before construction, installation and operation of the

product.

Please keep this manual properly for further reference.

Airsafe Airport Equipment Co., Ltd.

Table of Contents

Need help?

Do you have a question about the ITF and is the answer not in the manual?

Questions and answers

Summary of Contents for Airsafe ITF

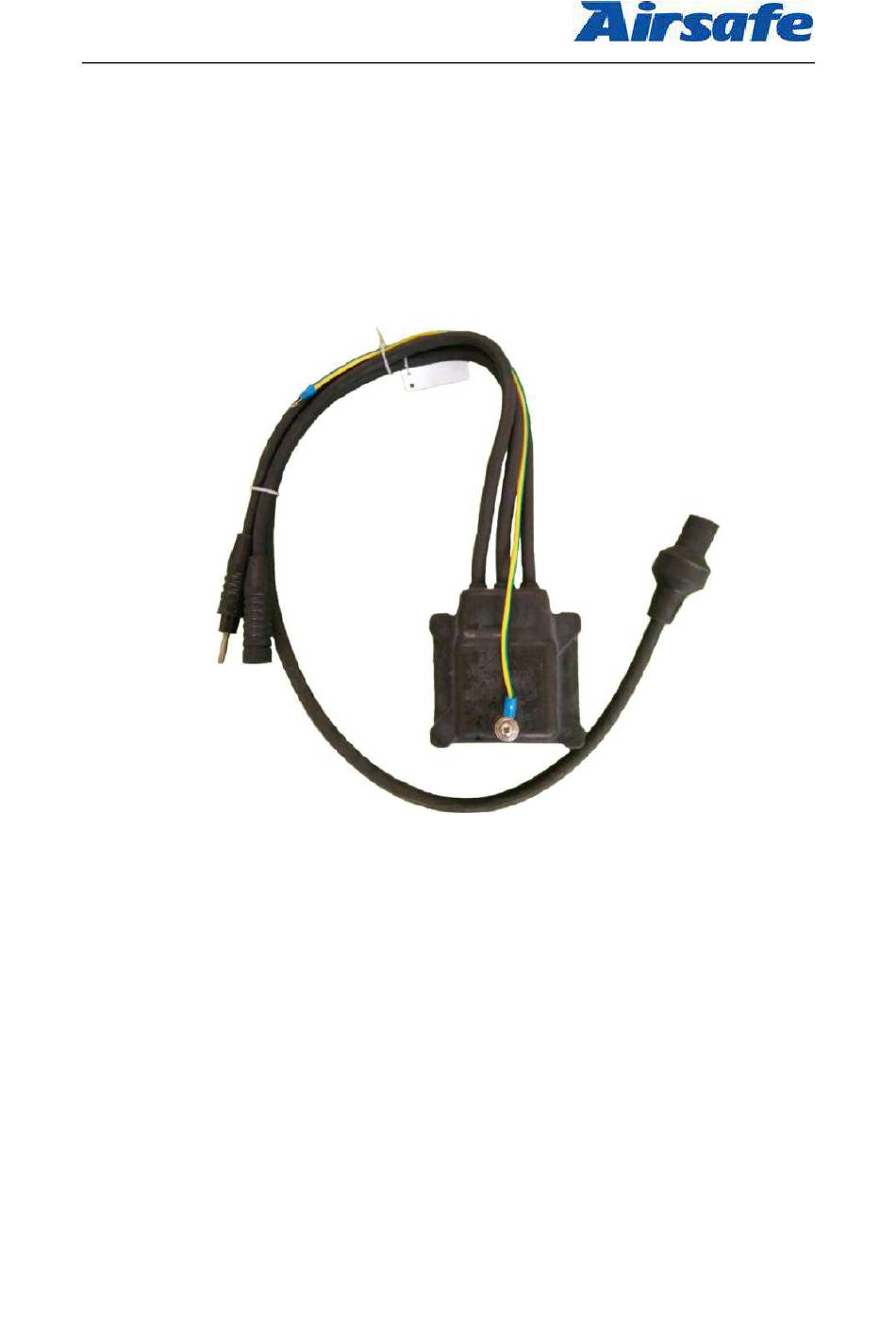

Page 1 Advanced Airport Lighting System ITF Isolation Transformer Operation Manual Please read this manual carefully before construction, installation and operation of the product. Please keep this manual properly for further reference. Airsafe Airport Equipment Co., Ltd.
Page 2 Advanced Airport Lighting System Revision Description Description Version No. Revised by Approved by Date First release V1.0 C.JQ Dec. 19, 2016...
Page 3: Table Of Contents
Advanced Airport Lighting System Table of Content Table of Content ........................1 1.0 Foreword ......................... 2 1.1 Illustrations and Meanings ....................2 1.2 Safety Rules and Notices ....................3 1.3 Quality Assurance and Responsibility ................3 2.0 Introduction ........................4 2.1 Overview of Isolation Transformer ..................
Page 4: Foreword
Advanced Airport Lighting System 1.0 Foreword The content stated in this manual is absolutely important, so construction personnel must read it carefully before construction. After properly understanding the entire content of this manual, construction personnel should carry out the construction in strict accordance with the methods specified herein, to ensure that the product is safely and properly installed in place.
Page 5: Safety Rules And Notices
Advanced Airport Lighting System 1.2 Safety Rules and Notices  Using this product beyond the scope is strictly prohibited. ※ Otherwise it may cause damage and risk to the assy.  Before installation and maintenance of the lighting fixtures, making sure that the isolation transformer is disconnected.
Page 6: Introduction
ITF isolation transformer is applicable to the circuit of 2.8-6.6A constant current input power source, which is widely applied to the airport runway, taxiway and parking apron.
Page 7: Technical Features
2.4 Application Scope ITF isolation transformer is applicable to the circuit of 2.8-6.6A constant current input power source, which is widely applied to the airport runway, taxiway and parking apron.
Page 8: Usage Of Isolation Transformer
Advanced Airport Lighting System 3.0 Usage of Isolation Transformer 3.1 Type Selection of Isolation Transformer Types of the isolation transformers are as follows: ITF - XXX - 066/066 - X 隔离变压器 Isolation transformer 功率 Power 015 = 15W 025 = 25W...
Page 9: Connection Of Isolation Transformer
Advanced Airport Lighting System 3.2 Connection of Isolation Transformer ○ For installation of the primary cable connector, please refer to Installation Guide for Primary Cable Connector (with Shield) in auxiliary instructions; ○ For installation of the secondary cable connector, please refer to Installation Guide for Secondary Cable Connector in auxiliary instructions;...
Page 10: Preparation And Inspection Of Isolation Transformer Before Use
Advanced Airport Lighting System 3.3 Preparation and Inspection of Isolation Transformer before Prior to use, please prepare and inspect the isolation transformer according to Table 3-1: Table 3-1 Preparation and Inspection of Isolation Transformer before Use Inspection Items Conclusion Remarks Whether there are external rubber sleeves of the primary and secondary cable connectors.
Page 11: Maintenance
Advanced Airport Lighting System 4.0 Maintenance The product is not a consumable, but the auxiliary isolation transformer box uses the gasket. After maintenance each time, please check whether it is out of work. It shall be timely dismounted and replaced when it is abnormal. When replacing the parts, please note that any tiny error will cause adverse consequences.
Page 12: Fault Analysis And Troubleshooting
Advanced Airport Lighting System 4.2 Fault Analysis and Troubleshooting During use of the isolation transformer, the users may turn off the power source and notify us when it is difficult for them to determine the fault causes or remove the faults in case of anomalies which are not listed in Table 4-1. Fault Description Possible Causes Solutions...
Page 13: Accessories Of Isolation Transformer
Advanced Airport Lighting System 5.0 Accessories of Isolation Transformer Item No. Model Name Remarks 971733 ☆Style 4 combined suite Secondary cable plug 971730 ☆Style 3, 10 combined Primary cable plug & receptacle suite suites 70603 Secondary cable plug Style 6 70206 Primary cable plug Style 2...
Page 14 Advanced Airport Lighting System The final right to interpret this manual is reserved by Airsafe Airport Equipment Co., Ltd. Thanks for your purchasing and using AIRSAFE product! Address: No. 38, Anxin Road, Xuhang Town, Jiading District, Shanghai, China Postal Code: 201800 Tel.: 021-53540453...
