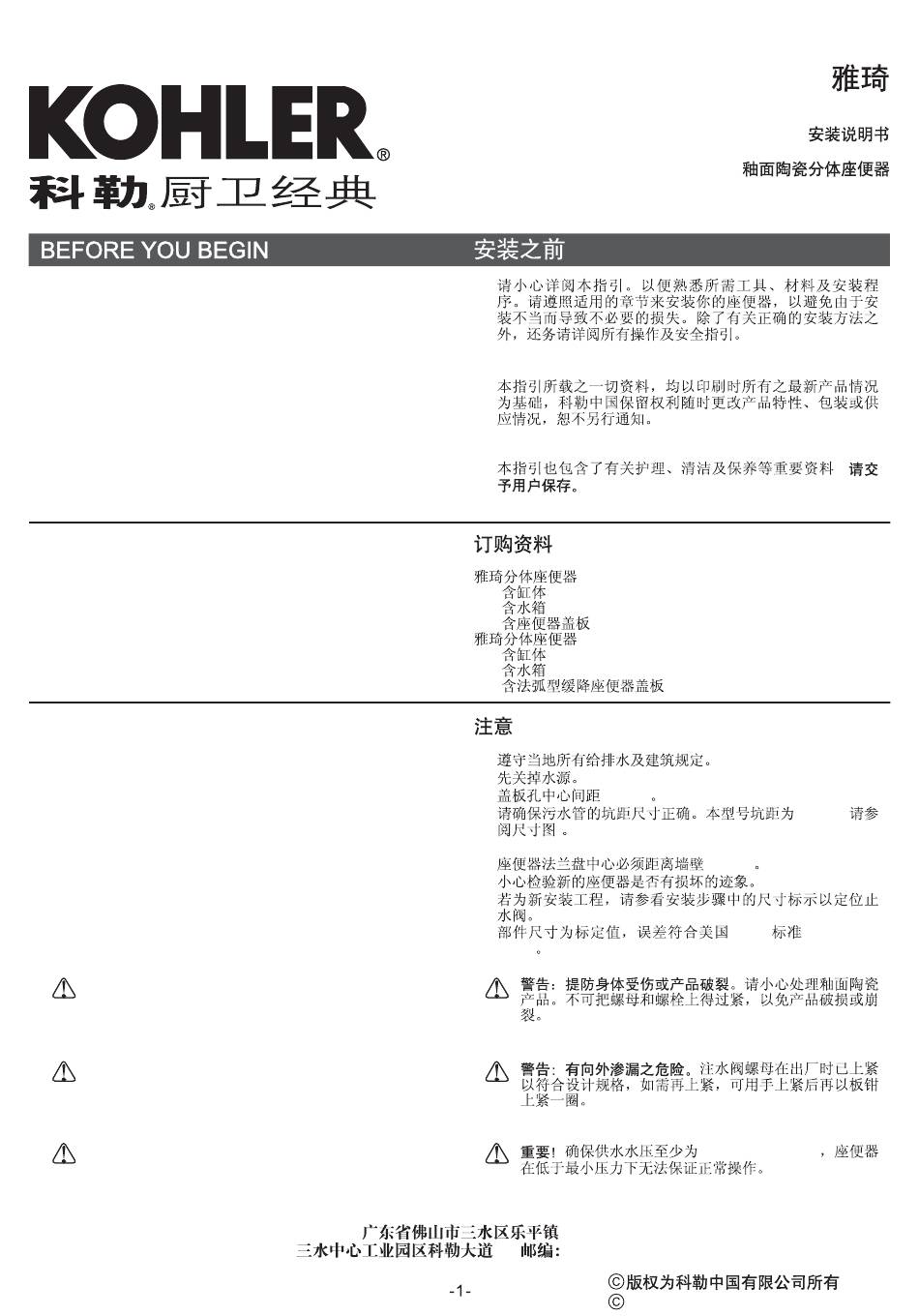

Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information -
please leave instructions for the
consumer
.
ORDERING INFORMATION
ARCHER Two-Piece Toilet
Includes Bowl .....................................................K-4311T-*
Includes Tank .....................................................K-4493T-*
Includes Toilet Seat ............................................K-4653T-*
ARCHER Two-Piece Toilet
Includes Bowl .....................................................K-4311T-*
Includes Tank .......................................................K-4493T-*
Includes French Curve Quiet-close Toilet Seat.......K-4713T-*
NOTES
·
Observe all local plumbing and building codes.
·
Shut off the water supply.
·
Seat post holes are on 140mm (5-1/2") centers.
·
Ensure that the new drain has the correct roughing-in
dimension. This toilet has a 305mm (12") roughing-in
dimension.
See Roughing-in
·
Closet flange must be 305mm (12") on-center from wall.
·
Carefully inspect the new fixture for any sign of damage.
·
For new construction, refer to the dimensions in
Installation step
for locating the shut-off valve.
·
Fixture dimensions are nominal and conform to tolerances
established by ASME Standards (A112.19.2-2003).
WARNING: Risk of personal injury or product
damage
: Handle vitreous china products very carefully.
Vitreous china can break and chip if you overtighten
bolts and nuts.
WARNING: Risk of external leakage
nut has been factory-tightened to design specifications.
If re-tightening is required, wrench tighten one turn
past finger tight .
IMPORTANT! Make sure the supply pressure is
a minimum of 35 psi (2.5 kg/cm ). The toilet will
not function properly without minimum Pressure.
1098812-T01-A
........................................K-3614T-*
....................................K-3614T-C-*
.
. The fill valve
2
VITREOUS CHINA TWO-PIECE TOILET
·
·
·
........................................................K-3614T-*
.................................................................K-4311T-*
................................................................K-4493T-*
......................................................K-4653T-*
.....................................................K-3614T-C-*
.................................................................K-4311T-*
................................................................K-4493T-*
·
·
·
140mm
·
)
·
·
·
·
2003)
528137
Copyright Kohler China Ltd., 2008
ARCHER
INSTALLATION INSTRUCTIONS
K-3614T/K-3614T-C
....................................K-4713T-*
305mm(
305mm
ASME
(A112.19.2-
2
2.5 kg/cm
35psi(
)
TM
-
, 2008
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kohler ARCHER K-3614T
Summary of Contents for Kohler ARCHER K-3614T
- Page 1 · · All information in these instructions is based upon the latest product information available at the time of publication. Kohler China reserves the right to make changes in product characteristics, packaging, or availability at any time without notice. ·...
- Page 2 " · 10mm NOTICE: If the existing toilet does not have a supply shut-off valve below the tank, install one before installing the new toilet. Unit: mm Supply Kohler reserves the right to change marked dimensions without prior notice. 1098812-T01-A...
- Page 3 INSTALLATION Install or relocate the supply and outlet as necessary to comform to the roughing-in dimensions. Supply Important: Toilet must have 305 mm minimum rough-in to install properly. 305mm If replacing a toilet, remove the old wax. 1098812-T01-A...
- Page 4 Insert new T-bolts. Install the wax seal. If installation of the new toilet is delayed, temporarily cover the closet flange hole with a rag. T-Bolts Closet Flange Wax Seal Apply weight evenly. Install floor mounting kit as shown in the figure. Do not overtighten.
- Page 5 Install the tank Connect supply and turn on the water. Install the bolts into the bracket and tighten evenly. Do not overtighten! Mounting Bracket tabs must contact vitreous for proper gasket compression. Bolt Bracket 10mm Supply Alimentation 10mm Flush several times and check for leaks. Turn here to adjust the water level if necessary.
- Page 6 A. Partially close the water supply shut-off valve if the water pressure to the toilet is too tank is filling. high. Check the toilet performance following any such adjustment. B. Remove dirt or obstructions from the valve head. Flush the lines.the lines. IMPORTANT: Use only genuine Kohler parts as shown to avoid property damage. 1098812-T01-A...
- Page 7 CAUTION: Don t use any cement while installing the toilet. Heat expansion of the toilet may damage the feet of the toilet. Kohler will not be responsible for any damage because of using cement. WARNING: Risk of product damage. Do not throw into the toilet what is easy to block it, such as newspaper, paper pilch, sanitary towel.
- Page 8 ARCHER SERVICE PARTS PAGE VITREOUS CHINA TWO-PIECE TOILET K-3614T/K-3614T-C K-3614T-* K-3614T-C-* K-4311T-* K-4311T-* K-4493T-* K-4493T-* K-4653T-* K-4713T-* 1046467-* Tank Cover 1062105 Seal Flush Valve Assy. Valve Head 1100274 Fill Valve Assy. 1033838 32572 1033209 Bolt Washer Tube 51533 Shank 1014065 Mounting Plate 1014580 1018165-A...
