- Page 1 NookBox Installation Guide Mini Door Contact MDC-1 Installation Guide Mini Door Contact (MDC-1)

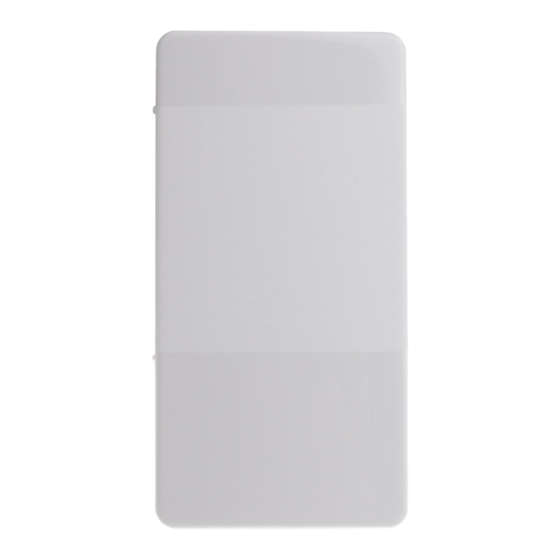

- Page 2 NookBox Installation Guide Mini Door Contact MDC-1 Mini Door Contact (MDC-1) The Mini Door Contact monitors the opening/closing of specified devices (e.g. door or win- dow). The Door Contact is fixed to the monitored device frame with an actuating magnet fixed to the device.
- Page 3 NookBox Installation Guide Mini Door Contact MDC-1 Identifying the parts 1. Rib Marks 2. Battery Insulator 3. Learn / Testbutton -Press the Test button to transmit a learn code. -Press the Test button once to enter Test Mode for 3 minutes.
- Page 4 Battery The MDC-1 uses one 3V CR2032 Lithium battery as its power source, The Door Contact is also capable of detecting low battery. When the battery is low, a low battery signal will be sent to the Control Panel along with regular transmission.
- Page 5 NookBox Installation Guide Mini Door Contact MDC-1 Installation To open the cover of the Door Contact: Step 1. Use a flat-headed screwdriver to fit into the cover opening hole on one side as (Pic1). Step 2. Push the flat-headed screwdriver upwards as (Pic2).
- Page 6 NookBox Installation Guide Mini Door Contact MDC-1 Mounting Methods for the Door Contact Screw Mounting The back cover has two Mounting Holes (knockouts), where the plastic is thinner, for mounting purpose. To mount the Door Contact: Remove the cover (See Installation above).
- Page 7 NookBox Installation Guide Mini Door Contact MDC-1 Mounting Methods for the Magnet Screw Mounting The back cover of the magnet has two Mounting Holes for mounting purpose. To mount the Magnet: Open the back cover by using a flat-headed screwdriver to fit into the caved in area and push upwards.
- Page 8 NookBox Installation Guide Mini Door Contact MDC-1 For more information visit: www.getnookbox.com...
