Summary of Contents for LEVTECH LSP-CRS422

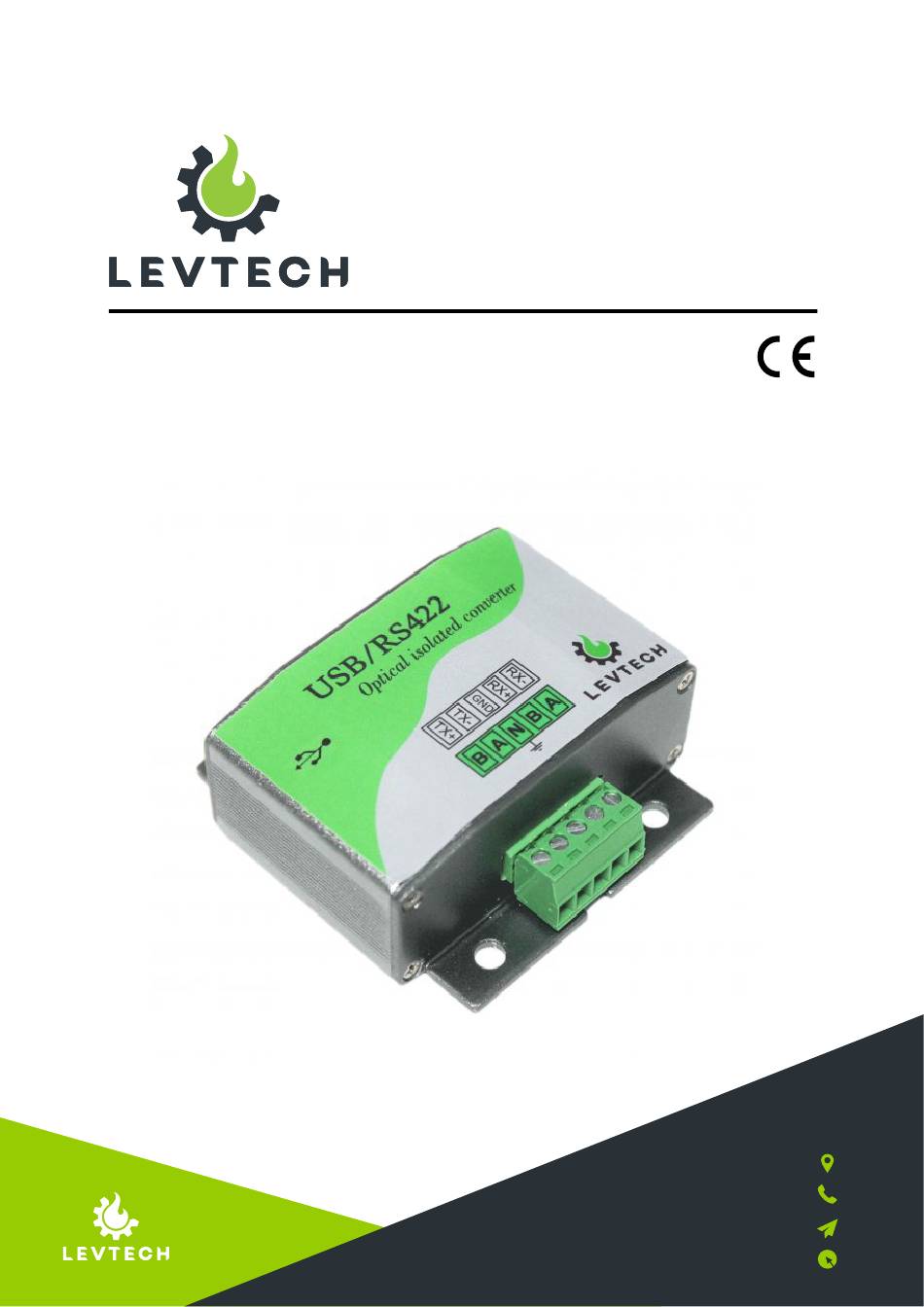

- Page 1 User Manual USB to RS422 CONVERTER LSP-CRS422 Lueta Nr. 319, Romania +40758576007 office@levtech.ro www.levtech.ro...
-
Page 2: Table Of Contents
Table of Contents PREFACE........................3 Document revisions....................... 4 1. INTRODUCTION....................... 5 1.1. General Information..................5 1.2. Support and Services................... 5 1.3. Disposal Remarks..................5 2. SAFETY INSTRUCTIONS..................6 2.1.Symbols......................6 2.2. Receipt and unpacking................. 6 2.3. Environment....................6 2.4. Mounting...................... 6 2.5. Cleaning.......................7 3. DESCRIPTION......................8 4. -
Page 3: Preface
All information in this User Manual is based on the latest product information available at the time of printing approval. Levtech reserves the right to make changes at any time without notice and without incurring any obligation. Please always keep this manual together with the isolator as a reference to everyone... -
Page 4: Document Revisions
Document Revisions Date Version Number Document Changes 03-11-2021 Initial draft 04-13-2021 Overall improvements 04-15-2021 Application examples added 04-22-2021 New images and formatting Approvals This document requires following approvals: Name Title Levi Mihaly General Manager... -
Page 5: Introduction
In order to ensure long product life, Levtech recommends that you utilize the product and perform maintenance by correctly following the instructions described in this guide. The manufacturer’s warranty does not cover any damage resulting from the neglect of these... -
Page 6: Safety Instructions
2. SAFETY INSTRUCTIONS 2.1. Symbols This symbol indicates information that, if ignored, could result possibly in WARNING personal injury or even death due to incorrect handling. This symbol indicates information that, if ignored, could possibly result in CAUTION personal injury or physical damage due to incorrect handling. Indicates information considered important, but not hazard-related. -
Page 7: Cleaning
WARNING To avoid the risk of electric shock and fire, the safety instructions of this guide must be observed and the guidelines followed. 2.5. Cleaning When disconnected, the device may be cleaned with a cloth moistened with distilled water. WARNING The specifications must not be exceeded, and the device must only be applied as described in the following. -
Page 8: Description
3. DESCRIPTION This USB to RS422 Serial converter is designed for industrial use. Simply connect it with you computer on USB port and a virtual COM Port will appear automatically. With its metal housing this converter is highly recommended for factory environment, but it is also suitable for any other industrial installations. -
Page 9: Specifications
5. SPECIFICATIONS Power Supply Supply Voltage 5VDC (Powered from USB) Power Consumption <100mW Reverse-Polarity Protection Enclosure IP Rating IP20 Dimensions (L x D x H) 65 x 63 x 25.5 mm Weight Mounting Wall mountable case with 4 screws Maximum Cable Cross 2.5mm (max.) Enviromental Conditions... -
Page 10: Dimensions
6. DIMENSIONS 63 mm 7. APPLICATION Found a new serial port: COM6 Up to 1200 meter USB to Computer... -
Page 11: Operation And Maintenance
8.2. Maintenance Levtech suggests a quick check for terminal tightness and general unit condition. Always adhere to any site requirements for programmed maintenance. 9. WARRANTY DISCLAIMER Levtech (“The Company”) makes no express, assumed or legal warranties (including... -
Page 12: Contact Information
10. CONTACT INFORMATION ADDRESS Lueta 319 Post Code 537140 Harghita Romania WEBSITE https://www.levtech.ro/ SOCIAL MEDIA Levtech @levtechsp @levtech_s_p COMPANY DATA LEVTECH SERVICE & PRODUCTION Fiscal code (CIF): RO35733217 Trade Register: RC J19/134/2016 IBAN: RO39RNCB0152150349440001 BCR BANK...
