Summary of Contents for Smart Digital SMART MIX SDM300

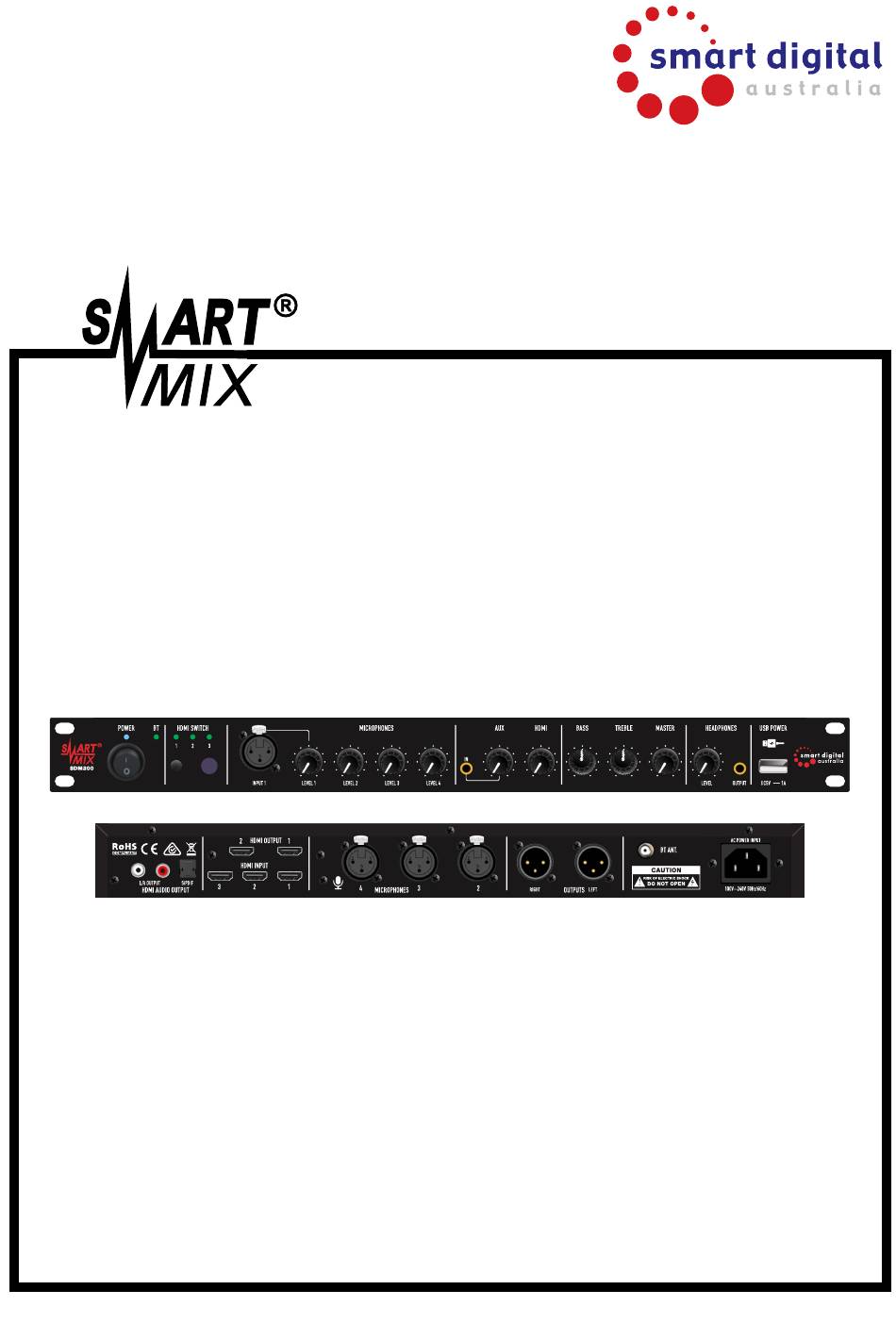

- Page 1 USER MANUAL SDM300 AUDIO Smart HDMI Switcher Mixer...
-
Page 2: Table Of Contents
Contents User Precautions -------------------------------2 Product Function Description ------------------3 Function Operating Instructions ----------------5 Product Connection Diagram ------------------7 Performance Specifcation Parameter -----------8 User Precautions 1.1 In order to effectively protect this product, please use it safely, and pay attention to the following: 1.1.1 Do not place bare flame sources, such as lighted candles, on this product. -
Page 3: Product Function Description

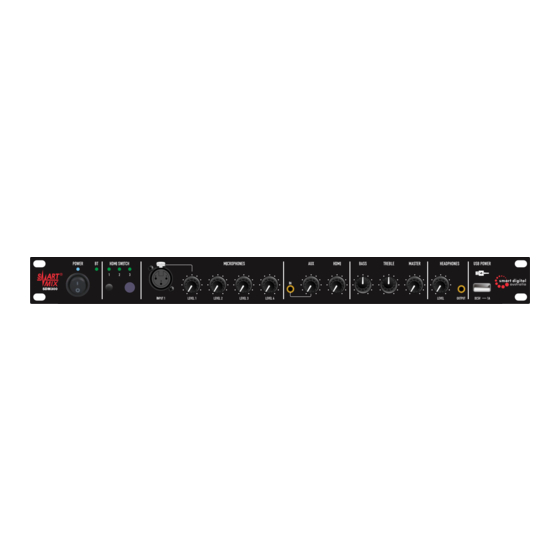

Product Function Description 2.1 Front panel diagram : 1、Installation Hole 2、Power Indicator Lamp 3、Bluetooth Indicator lamp 4、HDMI Channel Indicator 5、Power Switch 6、HDMI Selection Switch 7、Remote Control Receiving Window 8、Microphone Input 1 XLR 9、Microphone Volume Adjustment Knob 10、 AUX3.5 Input and Volume Adjustment Knob 11、HDMI Volume Adjustment Knob 12、... - Page 4 Product Function Description 2 . 2 Back panel diagram 1、 HDMI audio output 2、 HDMI Digital optical output 3、 HDMI Input 4、 HDMI Output 5、 Microphone I nput 2-4 XLR 6、 Left and right channel audio output 7、 Bluetooth Antenna 8、...
-
Page 5: Function Operating Instructions
Function Operating Instructions HDMI Switch The SDM300 includes a 3x1 HDMI switcher and splitter with three HDMI inputs and one dual HDMI output. It must be noted that the HDMI switcher is designed to provide a mian program output comprising full HDMI vision via the dual output and spell stereo audio via the main audio outputs. - Page 6 Function Operating Instructions If you are using the SDM300 as a part of a permanent equipment setup we highly recommend mounting the SDM300 in a standard 19” equipment rack to facilitate the integration of other equipment as required. Connect all HDMI sources, stereo auxiliary sources, microphones, HDMI outputs and main audio outputs to their respective ports on the rear panel.
-
Page 7: Product Connection Diagram
Product Connection Diagram... -
Page 8: Performance Specifcation Parameter
Performance Specifcation Parameter Equipment Model SDM300 MIC Input Sensitivity(MIC1/MIC2/MIC/MIC4) 600 ohms(Ω) 5mV, Balanced Line Input (AUX) 10k ohms(Ω) 300mV, Un-balanced Audio Signal Output (MAIN OUTPUTS) 10k ohms(Ω) 0.775V (0 dB), Balanced(L/R) 10k ohms(Ω) 0.775V (0 dB), Un-balanced Monitor Signal Output（HEADPHONE) Frequency Response 50Hz~18kHz(±3dB) Nonlinear Distortion THD...
