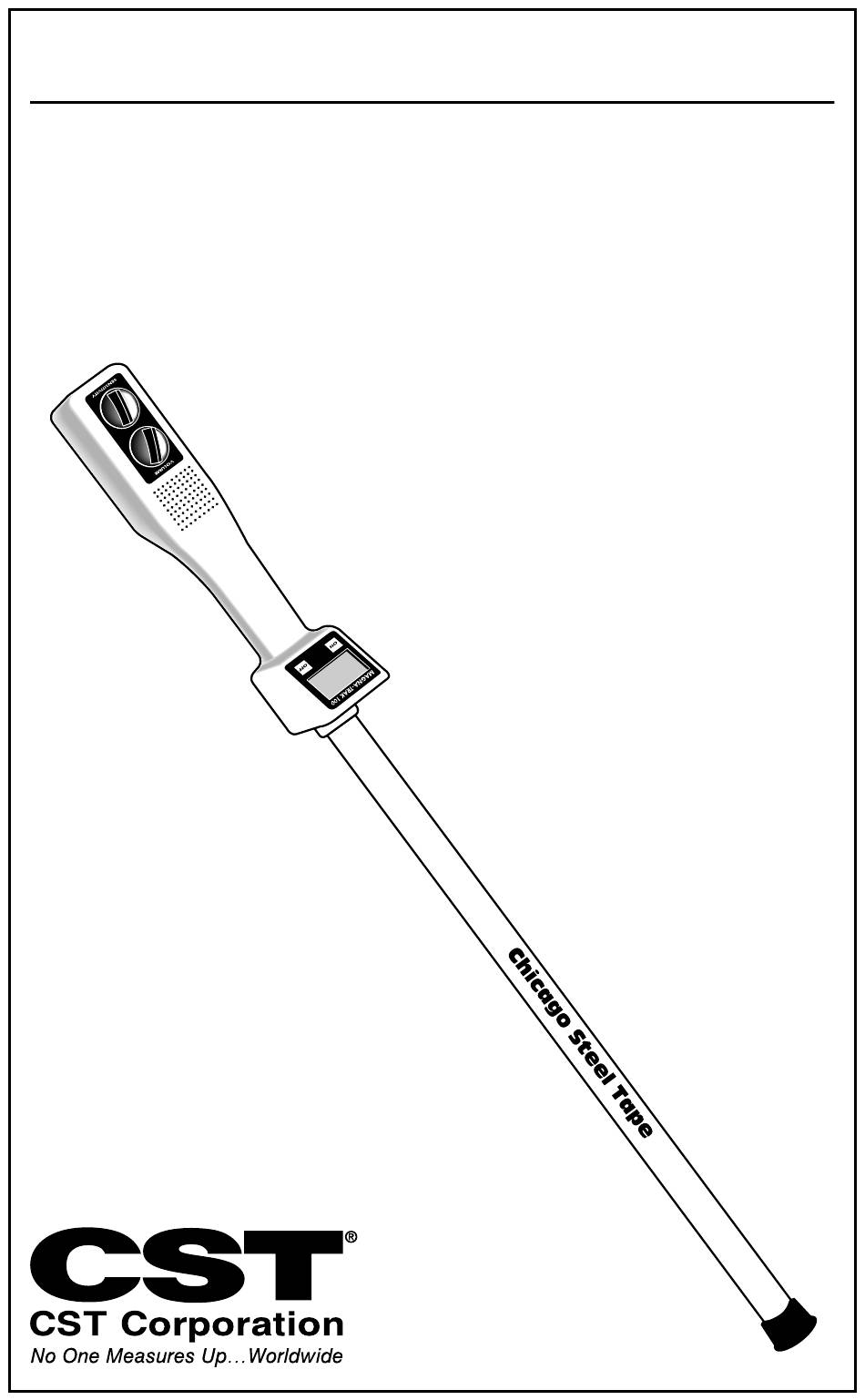

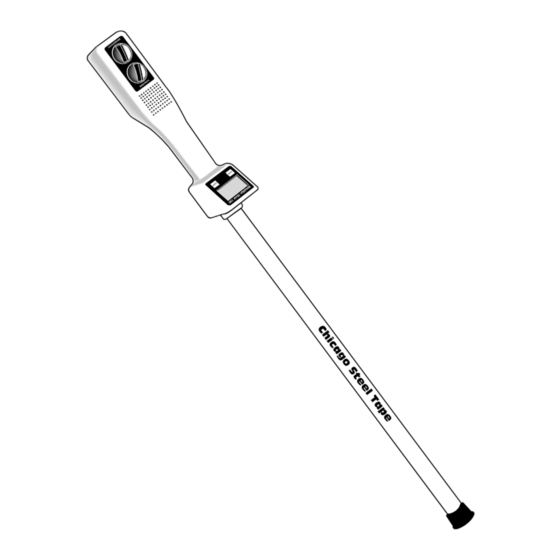

- Page 1 INSTRUCTION MANUAL ® Magna-Trak 100 Magnetic Locator...
-
Page 2: Table Of Contents
Thank you for purchasing the Magna-Trak 100 ® Magnetic Locator. Please read this manual thoroughly before operation. CONTENTS Introduction ......................3 Theory of Operation ....................3 Features ........................4 Basic Operation and Description ................5 4.1 Power ON/OFF Switches ..................... 5 4.2 Volume and Sensitivity Control Knobs ............... -
Page 3: Introduction
This instrument is the product of many years of experience and service provided by CST to the industry. 2. THEORY OF OPERATION The Magna-Trak 100 locator finds ferromagnetic objects by sensing the magnetic field radiated by the object. -
Page 4: Features
3. FEATURES • Rugged high-impact plastic enclosure with aluminum sensor pole • Powerful magnetic speaker with waterproof Mylar cone • Lightweight, comfortably balanced for easy handling • Easy view LCD display for visual signal strength and battery information: includes two digit numeric signal indicator, expanding analog Bar-Graph signal indicator, and flashing “Low Battery”... -
Page 5: Basic Operation And Description
4. BASIC OPERATION AND DESCRIPTION 4.1 Power On/Off Switches Press “ON” once to activate the locator circuitry. Press “OFF” once to turn the battery power off. 4.2 Volume and Sensitivity Control Knobs Rotate the volume knob to the desired audio volume level. Full volume is achieved when the knob is turned fully clockwise. -
Page 6: Battery Replacement
5. BATTERY REPLACEMENT The LCD will display a flashing “Low Battery” warning when the batteries fall below a predetermined voltage level, alerting you to replace the batteries soon. Several hours of battery life remain; however, in cold temperatures, this time may be shorter. Replace the batteries as follows: Turn the power off. -
Page 7: Field Operation
6. FIELD OPERATION The recommended search position is a 45° angle from the earth’s surface. Scan the locator pole from side-to-side in a slow sweeping motion while walking in a steady direction. Maintain a consistent height above the ground during the side-to-side sweeping motion. -
Page 8: Water Locations
6.1 Water Locations The pole section of the locator can be submerged into water, up to just under the plastic case (Fig. 3). Fig. 3 6.2 Locating Near a Steel Fence Move or slide the locator across the ground while holding the length of the locator body perpendicular to the fence. -
Page 9: Signal Response
7. SIGNAL RESPONSE Figure 5 shows audio and LCD visual signal response to: 1: no object, 2: one small deeper metal target, and 3: a second larger and shallower metal object. The LCD display indicates both the numeric digital and analog bar-graph response as the locator passes over the ground. -
Page 10: Typical Signal Responses
7.1 Typical Signal Responses The metal handles on the septic tank cover Signal Response will provide a usable signal to determine the location of the actual cover (Fig. 6). Fig. 6 Large metal objects may cause double Signal Response signals as indicated (Fig. -
Page 11: Specifications
If your magnetic locator needs service, you may return it to the dealer from which it was purchased or send it, transportation prepaid, directly to CST, 450 S. CIPS Street, Watseka, IL 60970 USA. Include model number, serial number, proof and date of purchase, your address and phone, and a written description of the problem encountered with the instrument with the return of the locator. - Page 12 450 S. CIPS Street • P.O. Box 359 Watseka, IL 60970 USA (815) 432-5237 Toll Free US: (800) 435-1859 FAX (815) 432-2417 http://www.cstsurvey.com Chicago Steel Tape Berger Instruments Magna-Trak ® LaserMark ® Tru-Lock™...
