Summary of Contents for SMART H2-TBW

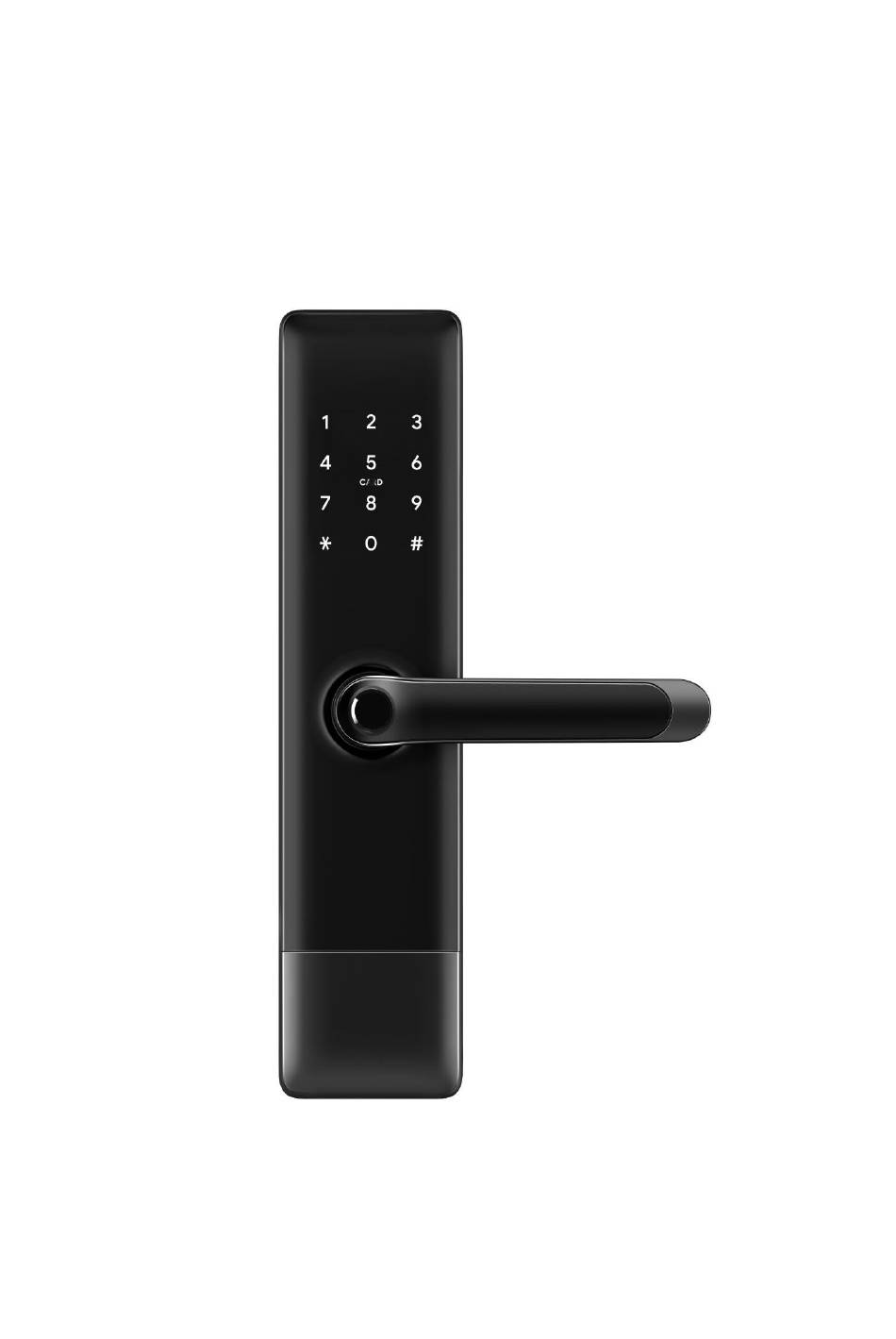

- Page 1 Smart User Manual H2-TBW Special Attention: 1. Mechanical keys please keep outdoor, just in case keys lock in doors. 2. Please replace for the battery when low wattage alarm. 3.Reading this manual carefully before installation, and keep it for future reference.
-
Page 2: Packing List
1. Introduction 1.1.Lock structure 1.2.Packing List Check the following drawing to check whether the package contains all the parts Name Name Front Panel Mortise Screws:M5*10mm (For Aluminum Door) Back Panel Mortise Screws:M4*20mm (For Wooden Door) Mortise 60mm Square shaft Card 80mm Square shaft Mechanical Key... -
Page 3: System Initialization
Suitable for Doors Aluminum door H2-TBW Models Applicable Wooden door Working Aluminum alloy Materials 6V/4x AA Batteries Voltage Door Thickness Lock Weight 35-65mm to Fit Bluetooth Fingerprint(option) Fingerprint ： 200 Unlocking Password Data Capacity Password ： 150 Card Card ： 200... - Page 4 2.1Turn the handle Notice: Adjust the handle according to the direction you open the door.
- Page 5 2.2. Installation Diagram(For 5572) Step 1 Install Mortise Step 2 Install Sliding Screw Casing Step 3 Install Back Panel and link wire Step 4 Install fixing screws Step 5 Install the battery Step 6 installation complete...
-
Page 6: Operation
3.Operation 3.1.Registration software (iOS version) downloaded from the app store, and the Android version can be downloaded from the application store of Google play, Yingyongbao, Baidu, Ali, 360, Huawei, and Xiaomi. 3.2. Connect lock to the phone 1) please scan the QR code to download the app 2) You can also search for TTLock in the APP store(Google Play)to download 4) Register a new account (phone number or email) or login with an existing account. - Page 7 3.3.Add locks 3.3.1 Add locks By Bluetooth TTLock supports multiple types of lock devices. The lock needs to be added by the app after entering the add mode. Generally, a lock that has not been added, as long as the lock keyboard is touched, it will enter the add mode. The default password is 123456 if not added by the phone 3.3.2 Connect WiFi...
-
Page 8: Setting Passcode
3.4.User Management 3.4.1. Bluetooth management Make sure there is no problem with Bluetooth communication. After connecting the phone to the door lock as above, Click " "to unlock.(the phone is within 5meters from the door lock) 3.4.2. Setting Passcode Passcodes are also a way to unlock. After entering the passcode on the locked keyboard, press the unlock button in the lower right corner to unlock. - Page 9 3.4.4.Add card Supports opening doors through various IC cards. Before an IC card is used to open the door, it needs to be added first. The adding process needs to be perform ed by the app beside the lock.The validity period of the IC can be set, it can be per manent, or it can be limited in time.
- Page 10 Check to see if the fingerprint is working properly(Press to see if there is any responds. 6）What is the reason why the smart lock a) Large standby power consumption consumes fast power? b) Short circuit 7）There is no response to pressing the...
- Page 11 Guarantee Customer Name： Customer Calls ： Purchase Date ： Product Name ： Product Model ： Note: Please keep this card so that you can use it when you need warranty service. We provide you with a one-year warranty from the date of purchase. This warranty service is valid for customers in any country in the world...
