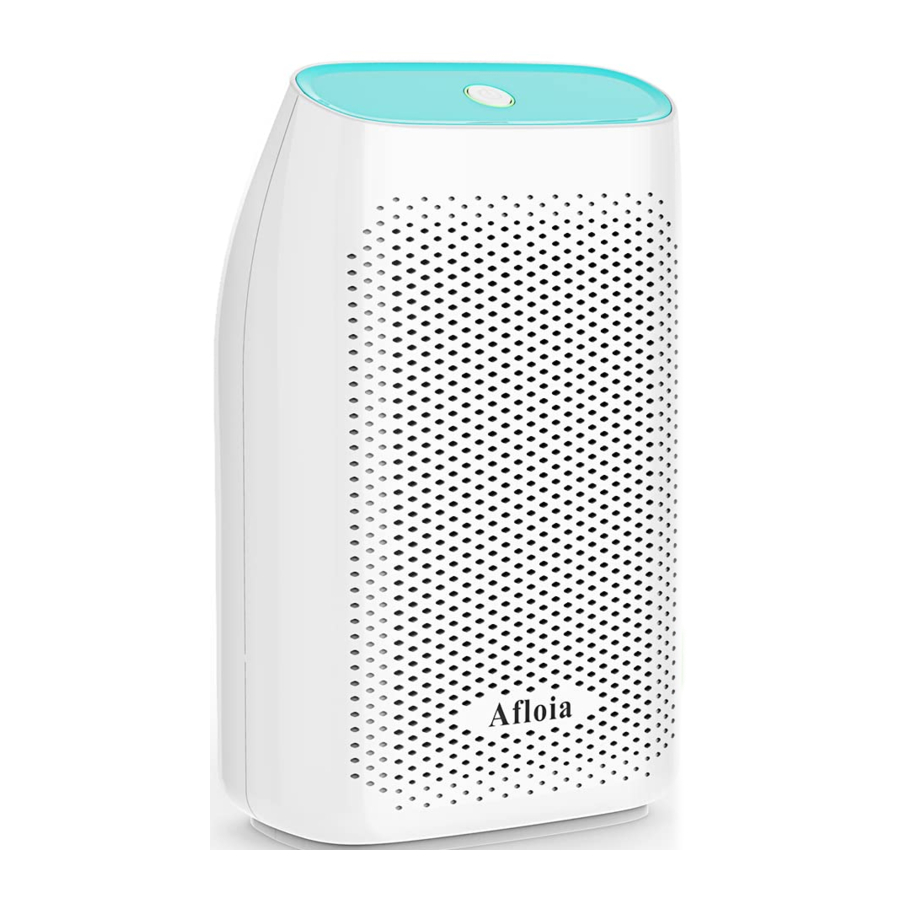

Afloia AX07, T8, T9 - 700ml Capacity Dehumidifier Manual

FEATURES

This dehumidifier uses Pettier Technology (not compressor) to make it lightweight and quiet. It is perfect for small and medium sized rooms and poorly ventilated areas that are susceptible to damp odors and fungus. Using this dehumidifier will help to eliminate unwanted moisture from the air.

1. ON/OFF Button
2. Indicator
3. Air Inlet
4. Air Outlet
5. DC Power Socket
6. Water Tank
7. Hydraulic Cut-Off
8. Water Outlet
9. DC Power Adapter

SPECIFICATIONS

• Model No.: AX07/T8/T9
• Size: 163*107*267mm
• Input: DC9V 2.5A
• Power: 23W
• Volume: 700ml
• Working Capacity: 300mI/D (30°C, RH80%)
• Applicable Ambient Temperature: 10-50°C
• Coverags Area<15m²

SIMPLE ONE-BUTTON CONTROL

1. Connect the power cable to the socket.
2. Switch the dehumidifier on using the ON/OFF Buttone The green light will turn on. To turn off the dehumidifier, press the ON/OFF Button again.
   When the water tank is full, the yellow light will turn on, and the dehumidifier will turn off automatically.


REMOVE THE WATER TANK

When the water tank is full, the yellow light will turn on and the dehumidifier will stop working automatically. Press the ON/OFF button to turn off the dehumidifier before removing the water tank.

1. Take the tank out

2. Pull out the rubber plug

3. Empty the water

4. Put the tank back


Attention: DO NOT forcibly open the lid of the water tankt or it may cause damage.

CLEANING

Ensure the dehumidifier is off and unplugged from the wall socket. Use a soft cloth to clean away any dust or debris from the surface of the unit and air inlets.

SAFETY INSTRUCTIONS

1. Ensure the dehumidifier's On/Off switch is set to off when the unit is not in use
2. DO NOT place the power cable in a wet or damp place. Avoid covering the cable.
3. Avoid placing power cable in areas where it can become a tripping hazard.
4. Avoid using extension cables as they may overheat and cause a fire risk.
5. Keep the front air inlets and side air outlets free from blockages.
6. Do not place the dehumidifier too close to other objects. ALWAYS keep the dehumidifier in an upright position to avoid leaks.
7. NEVER place anything on top of the dehumidifier. Do not cover it while in use.
8. ALWAYS empty the water tank before storing the dehumidifier away.
9. Dispose of water collected from the dehumidifier. This water is not drinkable.
10. This dehumidifier is not a toy, Children and pets should be supervised when the dehumidifier is in use.

Q&A

Is it a compressor dehumidifier?

No, it's a semiconductor dehumidifiert which is quieter and more compact than the compressor dehumidifier. We suggest to use the semiconductor dehumidifier for small space.

How could get a better efficiency of dehumidification

We suggest to use the dehumidifier in an environment where the relative humidity is over 60%. The most comfortable relative humidity for human is from 45% to 60%,

Can the unit work in low temperature

We don't suggest to use the dehumidifier when the temperature is below 10°C (50°F), as the dehumidifler doesn't have defrosting function. If working in low temperature, please shut down the device for 1 hour after 3 hours' working until the frost melts, and then turn it on again.

What square footage would this device be good for

It's suitable for the place less than 15m².

What could affect the dehumidification performance

The dehumidification performance is affected by many factors:
the environmental humidity, the temperature, the space size, the air flow speed (windows or door closed or not), and so on.
