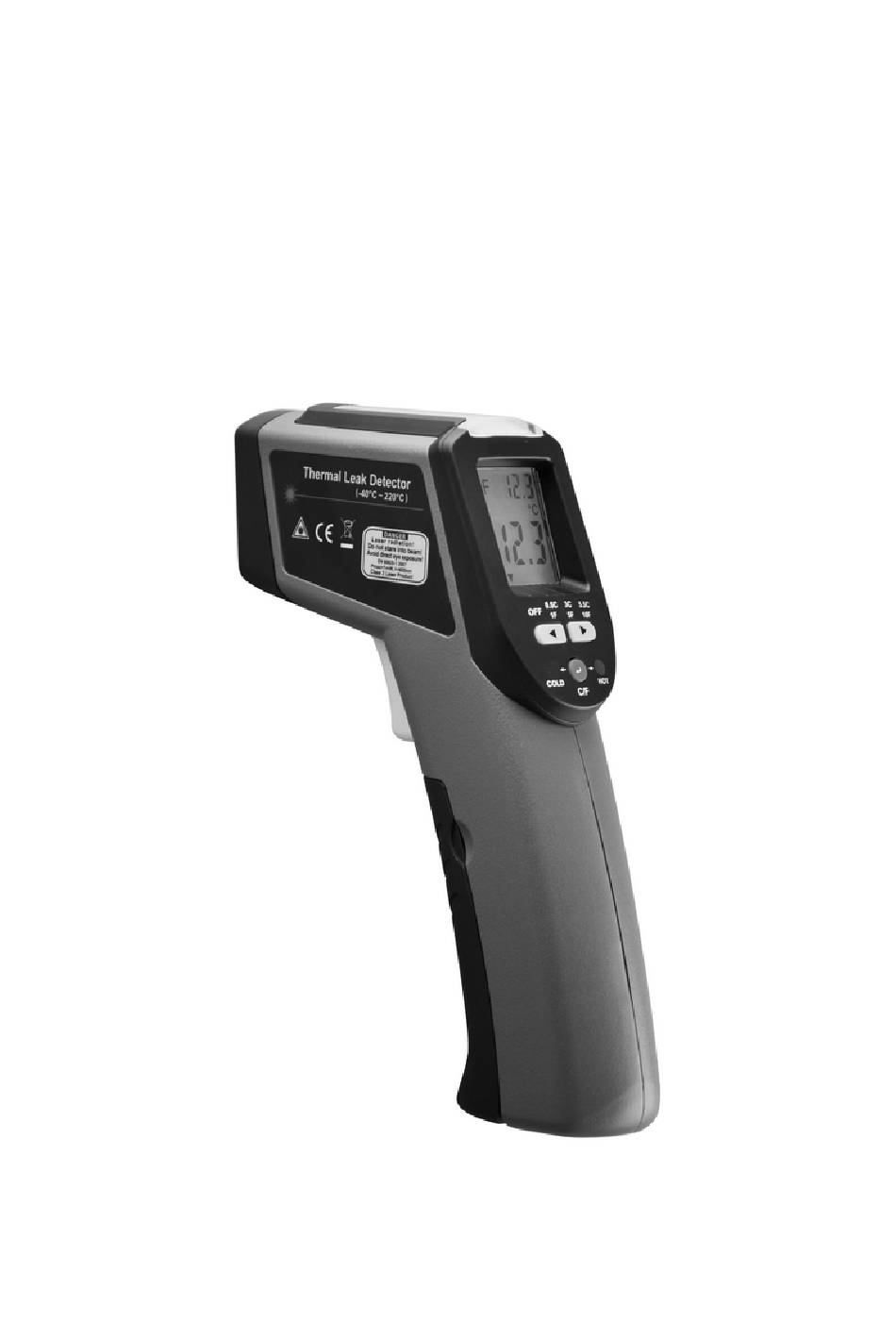

- Page 1 Infrared Thermal Leak Detector Model: KC-186 Operation Manual...
- Page 2 KC-186 is Class II laser product and accords with EN60825-1 safety standard. Safety Instructions Failure to follow the instructions listed below may cause personal injury.
- Page 3 ●Warning DANGER Class II Laser Product Maximum Power Output< 1mW Wavelength: 630-660nm Do not stare into beam! Avoid direct eye exposure! This tool emits a laser radiation! Battery Safety Instructions ●Please remove the batteries when clean the product. ●Remove the batteries before long term storage ●Please install the batteries properly as the instructions of the positive and negative charges ●Please dispose the batteries properly.
- Page 4 Illustration of display screen A．Reference data icon B．Low battery indicator C．Temperature units D．Scan temperature icon E．Scan and hold the data F. Arrows for different threshold Operation Steps 1、 The trigger is for starting measuring. Be sure to hold the trigger more than 0.5 seconds to have an accurate data.
- Page 5 ● Operation Notes 1、No glass, plastic or water vapor .etc should be placed between the product and target object. 2、Keep the device away from the following places, which will damage the devices: a、Environment has vapor and dust; b、EMF places（Electro-magnetic fields: such as arc welders、induction heaters）; c、Static environment;...
- Page 6 Technical Specifications Name Thermal Leak Detector Model KC-186 Measuring range -40℃～220℃(-40℉～428℉) Response wavelength 8～14μm ±2℃(±3.6℉) or ±2% of reading（when T>0℃） Measuring precision ±3℃(±5.4℉) or ±3% of reading, whichever is greater（when T ≤0℃） Repetition 1℃ Response time 500mSec，95% response Optical ratio（D：S）...
