Installation Guide
1000BASE-T SFP+ Module
Model AXM765v2
The AXM765v2 SFP+ module is a low-power, high-performance, 1000BASE-T transceiver.
The AXM765v2 delivers 10 Gb network connectivity with cabling up to 262.5 feet (80
meters) of Category 6a (Cat 6a) or Cat 7 Ethernet cable.
The module is compatible with the IEEE 802.3az/an standard.
The switch automatically detects the module, so you can simply plug it into an available
module slot. You can insert or remove the module while the switch is operational.

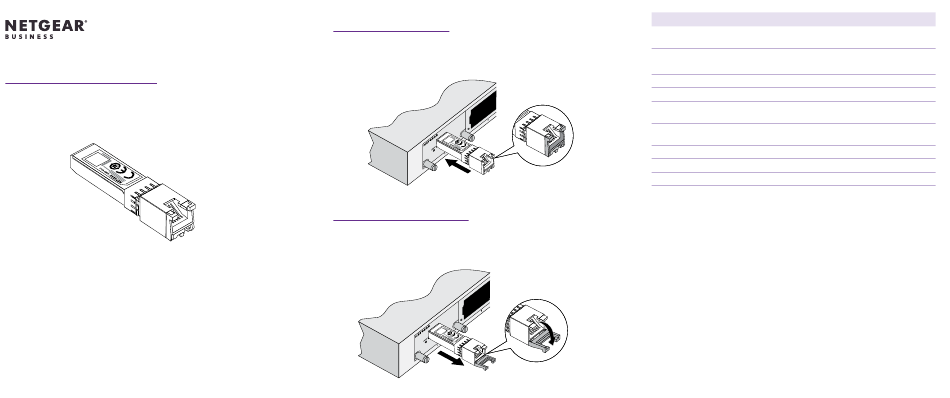

Install the Module
Insert the module firmly into a slot that supports the SFP+ interface. Make sure that
the cable you use is a Category 5e (Cat 5e) or a higher-rated Ethernet cable (Cat 6,
Cat 6a, or Cat 7). Supports links up to 80m using Cat 6a/7 Cable.
Remove the Module
1. Lower the latch on the front of the module.
2. Grasp the sides of the module and pull it straight forward out of the slot.
Technical Specifications
Standards IEEE 802.3an, IEEE 802.3az, SFF-8431 and SFF-8432
MSA-compliant
Dimensions (H x W x D) 0.54 in. x 0.54 in. x 2.71 in.
(13.8 mm x 13.7 mm x 68.8 mm)
Weight 0.5 oz (14.17 g)
Operating temperature 32–158ºF (0–70ºC)
Operative relative 85% at 77ºF (25ºC)
humidity
Operating distance 10GBASE-T up to 262.5 ft (80 m) with Cat 6a (or
higher rated) Ethernet cable
Connectors RJ45
Power consumption 2.5W
Safety certification IEC/EN 60950-1, UL60950
Environmental compliance RoHS
