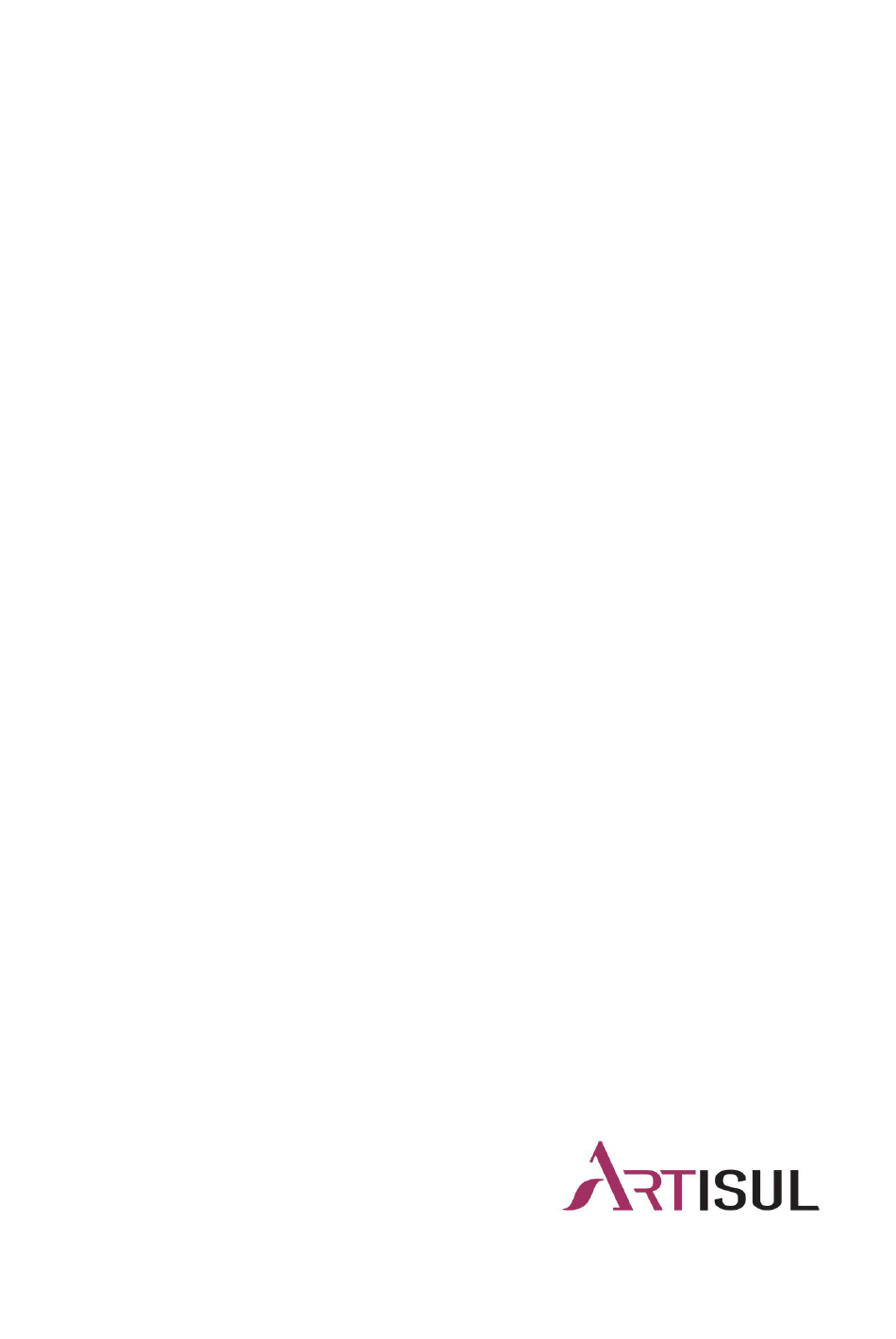

- Page 1 User Manual For Windows and Macintosh OS Artisul Pen Display | Model: D22S...
- Page 2 Precautions 1. Please read this manual carefully before using, and keep it well for future reference. 2. Before cleaning the display please unplug the USB cable and wipe with a soft damp cloth, do not use any kind of detergents. 3.
-
Page 3: Table Of Contents
Contents 1. Product Overview........................... 1 1.1 Display Introduction......................1 1.2 Product and Accessories....................... 1 1.3 Setting up Display........................3 1.4 Installing the Driver....................... 3 1.5 Pen Nib Replacement......................4 2. Product Basic Operation.........................4 2.1 Using The Pen........................4 2.2 OSD Setting..........................6 3. -
Page 4: Product Overview
1.1 Display Introduction ® Thanks for choosing Artisul D22S graphics display. This is a new generation of portable desktop-level professional drawing display, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience. - Page 5 1.2.2 Adjustable Stand We designed this ergonomic adjustable stand specially for your display, you can adjust the angle of the display according to your usage habit, and make you feel more comfortable when painting and creating. By dragging this switch to adjust the stand angle from 20°-80°...
-
Page 6: Setting Up Display
1.4.1 OS Support Windows 7 or later，macOS 10.12 or later 1.4.2 Install via Download Please download the driver from our website: www.artisul.com/downloads Notice： 1. Before installing, you need to uninstall other driver of similar products, including the old driver of this product. -
Page 7: Pen Nib Replacement
avoid unnecessary mistake. 1.5 Pen Nib Replacement The nib will be wear out after using for a long time, then you need to replace a new nib. 2. Product Basic Operation 2.1 Using The Pen 2.1.1 Hold the pen Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can toggle the side switch easily with your thumb or forefinger. - Page 8 2.1.2 Position the cursor Move the pen slightly above the active area without touching the screen surface, the cursor will move to the new position accordingly. Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click.
-
Page 9: Osd Setting
2.1.5 Use the side buttons The side buttons of the pen can be set to two different customizable functions. You can use the buttons whenever the pen tip is within 10mm of the display active area. You do not have to touch the pen tip to the display in order to use the switch. 2.2 OSD Setting 2.2.1 OSD Buttons POWER --- Power on/off the display. -
Page 10: Function Setting
3. Function Setting 3.1 Device Connection Prompt 1. Device disconnected: The computer does not recognize the tablet. 2. Device connected: The computer has recognized the tablet. 3.2 Working Area Setting 3.2.1 Using Multiple Monitors When the display and other monitors are used in the same system, the movement of the screen cursor on the standard display depends on the system configuration. - Page 11 3.2.2 Working Area Setting Define the display area that will be mapped to the screen area. 1. Full Area: the entire active area of the Display. This is the default setting. 2. Same Ratio with LCD. 3. Customized Area: 1.> Enter coordinate values. or2>. Drag the corners of the foreground graphic to select the screen area.
-
Page 12: Pen Button Function Setting
3.3 Pen Button Function Setting Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect. 3.4 Pressure Sensitivity Setting The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more sensitive the pressure. -
Page 13: Pen Pressure Testing
3.5 Pen Pressure Testing Click “start pressure test”, you can gradually apply pressure to the stylus on the screen to test the pressure level. Click “Clear” button to clear all the ink. 3.6 Calibration Screen Calibration: Click the red point of the cross center appearing on the screen to complete the calibration. -
Page 14: Enable The Windows Ink Feature
3.7 Enable the Windows Ink feature Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office、Windows Journal、Adobe Photoshop CC、 SketchBook 6 and so on. 3.8 Data Export and Import The driver supports exporting and importing your customized configuration data of the product, which is convenient for you to use different software and avoid the trouble of repeated settings. -
Page 15: Specifications
4. Specifications ITEM D22S Panel Size 21.5 inch Resolution 1920 x 1080(16:9) LCD Type TFT LCD IPS Active Area 476.64 x 268.11mm Brightness 250cd/m Screen Response Time 14ms 89°/89°(H)/89°/89°(V) View Angle (Typ.)(CR＞10) Gamut 72%(NTSC) Display Color 16.7M Touch Type Electromagnetic Resonance... -
Page 16: Trouble Shooting
5. Trouble Shooting 5.1 Possible Breakdowns Related to DISPLAY Abnormal Phenomena Possible Solutions Power indicator does not *Make sure power is on *Check the socket and power cable flash 1. Make sure power is on. 2. Correctly connect the cable. 3. -
Page 17: After-Service Contact
10mm There is a deviation Try calibration between the tip and the cursor 6. After-service Contact If you have any questions, please feel free to contact us at: Website: www.artisul.com Email: service@artisul.com 14 /...
