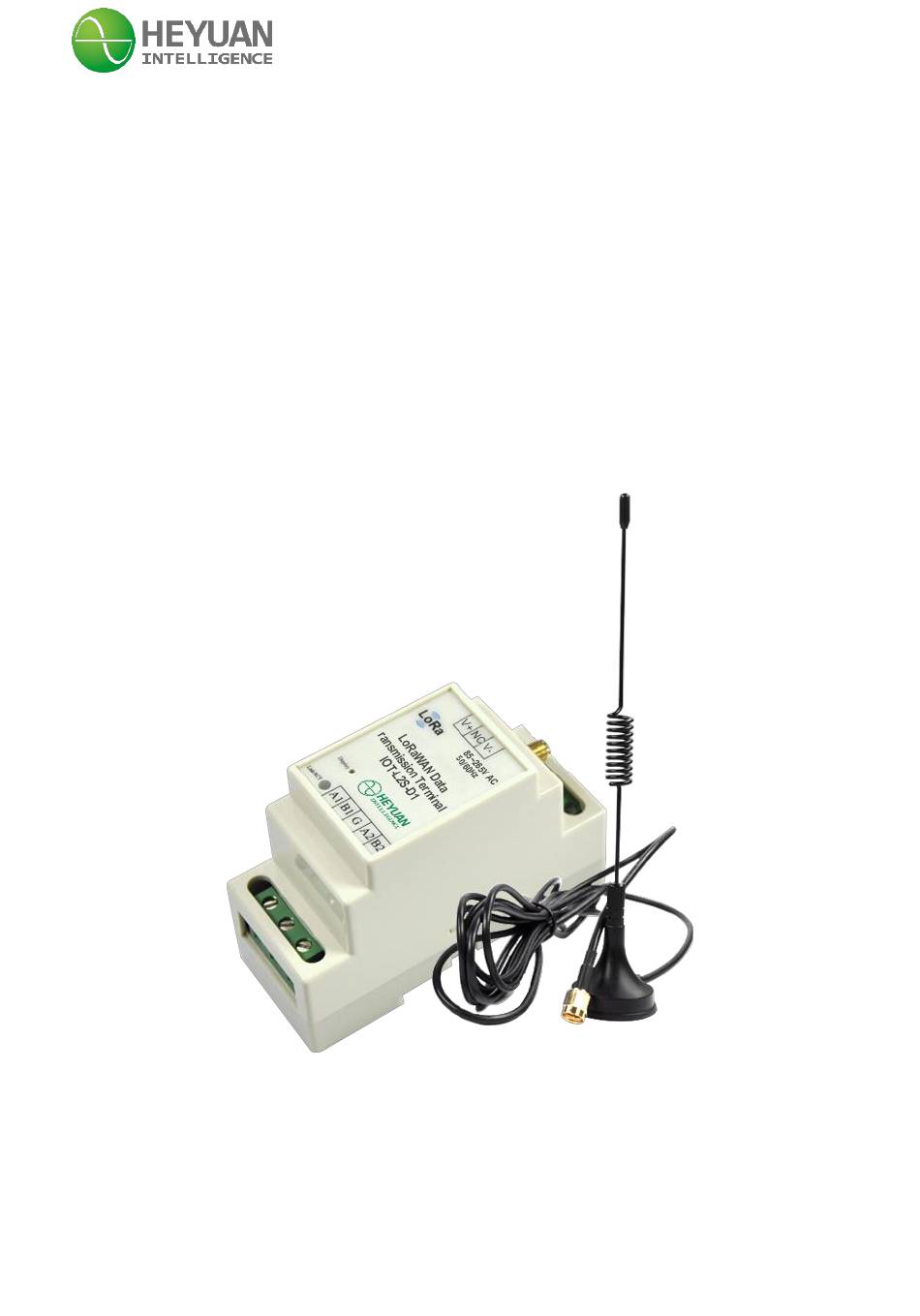

- Page 1 LoRaWAN Data Transmission Terminals Model IOT-L2S-D1 User Manual (V1.0) Heyuan Intelligence Technology Co., Ltd...
- Page 2 IMPORTANT DECLARATIONS 1. This document is an instruction manual. Its content will change as product is upgraded without notice. Please contact with Heyuan Intelligence Technology Co., Ltd to get the latest product specifications if it is needed. 2. Heyuan shall not be responsible or liable for any damages or injuries caused by improper meter installation and/or operation.
- Page 3 Chapter 1 Product Introduction The LoRa Data Transmission Terminal, Model No.IOT-L2S-D1 is universal communication interactive equipment which is designed and manufactured by our company based on the LoRa RF chip. It integrates two interfaces of industrial standard RS485 and supports a variety of protocols to realize data transmission between wired and wireless devices.
- Page 4 Wireless parameters Model RS485 Power Supply Working Network Mode Frequency IOT-L2S-D1 AC85~265V 865MHz LoRaWAN 2.4 Parameter Configuration All the parameters of LoRaWAN series products developed by our company can be set by the user. The setting steps are as follows: 2.4.1 Wiring...
- Page 5 2.4.2 Enter Configuration Mode Method 1: After wiring, power on and press button “Deploy” longer than 5S to make LoRa device enter the configuration mode. After that, the LINK/ACT indicator lights flash at a fixed frequency (flashing once per second) and release the button. Method 2: Press the button “Deploy”...
- Page 6 Chapter 3 Installation Introduction 3.1 Dimension...
- Page 7 3.2 Terminal Definition Name Definition Line L of Power Input Line N of Power Input Not Connection RS485-1 Communication Interface A1 RS485-1 Communication Interface B1 RS485-2 Communication Interface A2 RS485-2 Communication Interface B2 GND (Grounding) Chapter 4 Typical Application 4.1 Application System Example 4.2 Application Areas...
- Page 8 Chapter 5 After-sales Service Product Warranty 1. The product warranty period is one year. 2. The company is responsible for free maintenance or exchange within one-year warranty period. 3. The cost of the components and freight shall be charged for improper meter installation and/or operation.
