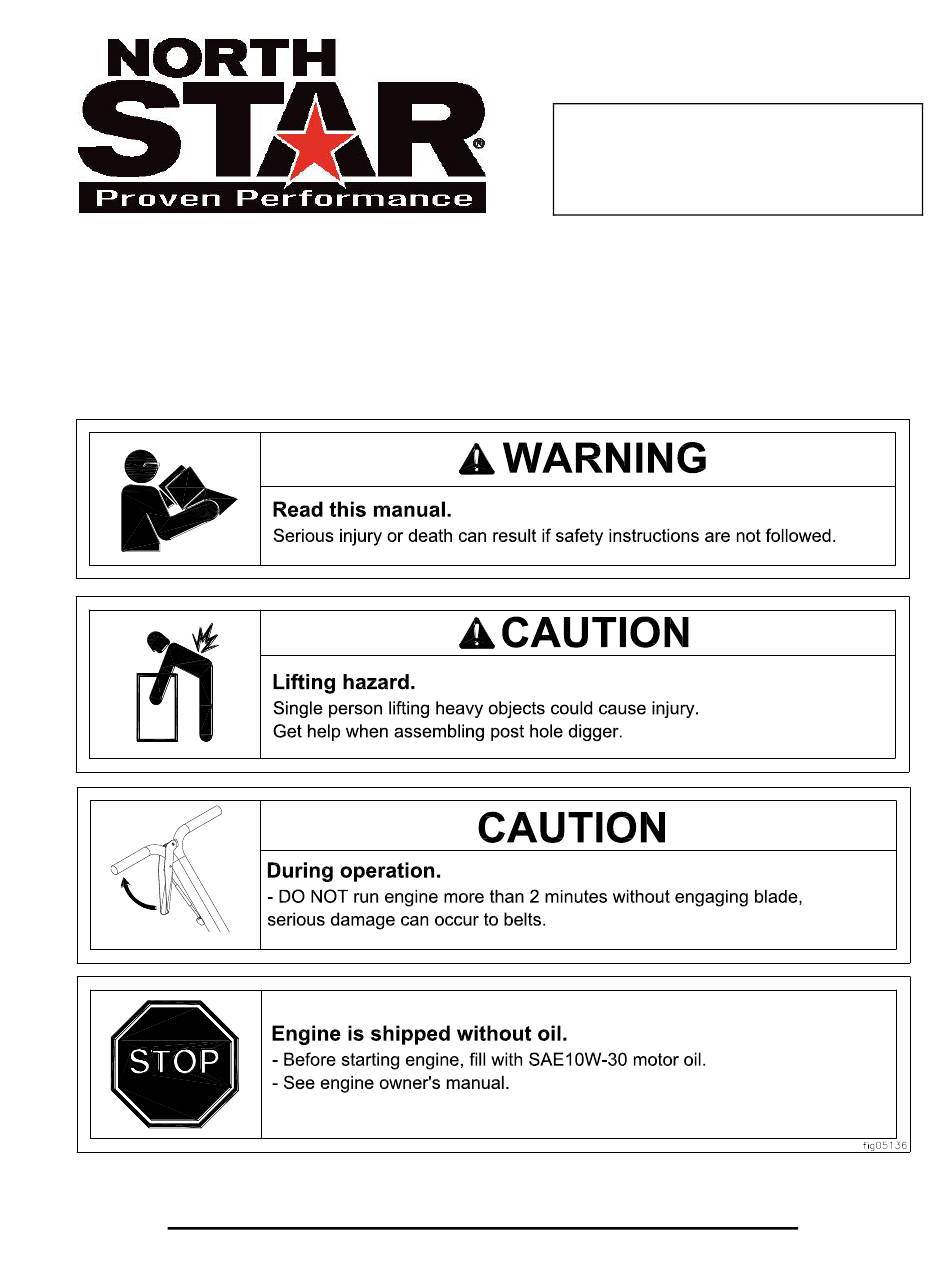

- Page 1 M191185C.7 191185 ITEM NUMBER SERIAL NUMBER Owner’s Manual Trencher/Edger: Cuts trenches in dirt. Any Questions, Comments, Problems or Parts Orders Call NorthStar Product Support 1-800-270-0810...
-
Page 2: Table Of Contents
Table of Contents Hazard Signal Word Definitions………………………………..2 Important Safety Rules ..........………..3,4 Warning Label Locations ..........…………5 Unpacking ..............……………6-7 Parts Identification ..........…….….6 Fastener Identification ........…..……7 Assembly Instructions ............…………. 8-9 Machine Component Identification.........…….10 Operation Instructions ..........………..11-13 Work Site Preparation and Operating Zones ..……... 11 Trenching ............……….12 Changing Trench Depth &... -
Page 3: Important Safety Rules
Important Safety Rules... - Page 4 Important Safety Rules WARNING 3.) Fire hazard. Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel. -Stop the engine and keep heat, sparks, and flame away. -Handle fuel only outdoors. Wipe up spills immediately. 4.) Tripping hazard.
-
Page 5: Warning Label Locations
Warning Label Locations DANGER 1.) Read safety manual completely. WARNING Serious injury or death will result if safety instructions are not followed. 2.) Rotating blade. Blade will cut and crush skin and bones. Keep hands clear. Follow lockout procedure before servicing. -
Page 6: Unpacking
Unpacking Closely inspect all contents in the shipping carton. - If you have missing or damaged components: Contact Product Support at 1-800-270-0810. ENGINE/FRAME ASSEMBLY HANDLE ASSEMBLY (4) WHEEL FRONT AXLE FIG01705... -
Page 7: Fastener Identification
Unpacking Fastener Identification... -
Page 8: Assembly Instructions
Assembly Instructions 1.) Handle Assembly. - Use (1) 5/16” x 3/4” bolt, (1) 5/16” x 2” bolt, & (2) 5/16” nuts to fasten the handle to the frame. - Make sure the tab engages the slot. - Install the 3/8” x 3 1/4” bolt and 3/8” nut. - Loop the zip tie around the 3/8”... - Page 9 Assembly Instructions 2.) Wheel Assembly - Check tires for correct air pressure prior to assembly. - Use a 5/32” hex wrench to attach (2) wheels to the front axle with (2) wheel retainers. Use (2) 5/16 x 3/4” bolts to fasten the front axle to the frame. - Fasten the (2) wheels to the frame with (2) wheel retainers.
-
Page 10: Machine Component Identification
Machine Component Identification 1.) Control Lever. Used to start and stop cutting blade. 2.) Turnbuckle. Adjusts belt tension. As belts wear, retensioning may be required. See “Belt Tension” section of this manual. 3.) Engine. Air-cooled engine provides power for cutting blade. 4.) Engine on/off switch. -
Page 11: Operation Instructions
Operation Instructions Work Site Preparation The Trencher/Edger is operated by pulling the machine along a planned path. Mark your path before starting the trenching operation. Locate any aboveground obstacles in your path and plan a safe route to avoid them. Mark a well defined, easy to follow path. Move or cover objects that could be damaged by flying objects (windows, cars, siding, etc.). -
Page 12: Trenching
Operation Instructions Trenching DANGER DO NOT PUSH MACHINE DURING OPERATION Trencher is designed as a “PULL” type machine only. Pushing the machine will expose the operator to flying debris. 1.) Starting Engine Refer to Engine Owners’ Manual for proper engine starting procedure. DO NOT run engine more than 2 minutes without engaging blade, serious damage can occur to belts. -
Page 13: Changing Trench Depth & Blades
Operation Instructions Changing Trench Depth The Trencher/Edger can cut a 7,6 or 5” deep trench. Simply unbolt the axle assembly and move it to the next hole pattern, or “flip” the axle assembly to achieve the desired cutting depth. 5” Trench 6”... -
Page 14: Lockout Procedure, Maintenance And Storage
Maintenance and Storage Lockout Procedure Before performing maintenance, the trencher/edger must be placed in lockout mode. 1.) Turn off engine. 2.) Disconnect engine spark plug wire. Belt Tension 1. The ideal belt tension is the lowest tension at which the belts will not slip under peak load conditions. - Belts are too loose if a “squealing”... -
Page 15: Sheave Alignment And Storage
Maintenance and Storage Sheave Alignment Eventually, sheave removal or replacement may become necessary. Inspect sheaves for cracks or a groove bottom that is shiny. Sheaves must be aligned to within 1/16” when reinstalled. 1/16” INCORRECT CORRECT CHECK ALIGNMENT CAUTION: After performing maintenance, make sure all guards, shields, and safety features are put back in place. -
Page 16: Specifications And Troubleshooting
Specifications Engine..........6.5 hp Honda Trench Depth (with standard blade)..7” Trench Width (with standard blade)..1 1/2” Overall Dimensions......65 1/2” L x 26” W x 36 1/2” H Dry Weight.......... 137 lbs. Belt Size..........A30K (Kevlar™ Reinforced) Blade RPM.......... 1850 The manufacturer reserves the right to make improvements in design and/or changes in specifications at any time without incurring any obligation to install them on units previously sold. -
Page 17: Parts Explosion
Parts Explosion – Rev C.7 ITEM PART# DESCRIPTION ITEM PART# DESCRIPTION 606512 6.5 Honda Engine 37977 Idler Pulley 3/16” x 2” Shaft Key 82142 38068 Belt Guard 2AK27-3/4” Sheave 37978 37968 Control Cable 37938 Trencher Frame 37962 Protective Mat 788813 Wheel 37964 Guard Retainer... - Page 18 This page has intentionally been left blank.
-
Page 19: Limited Warranty
