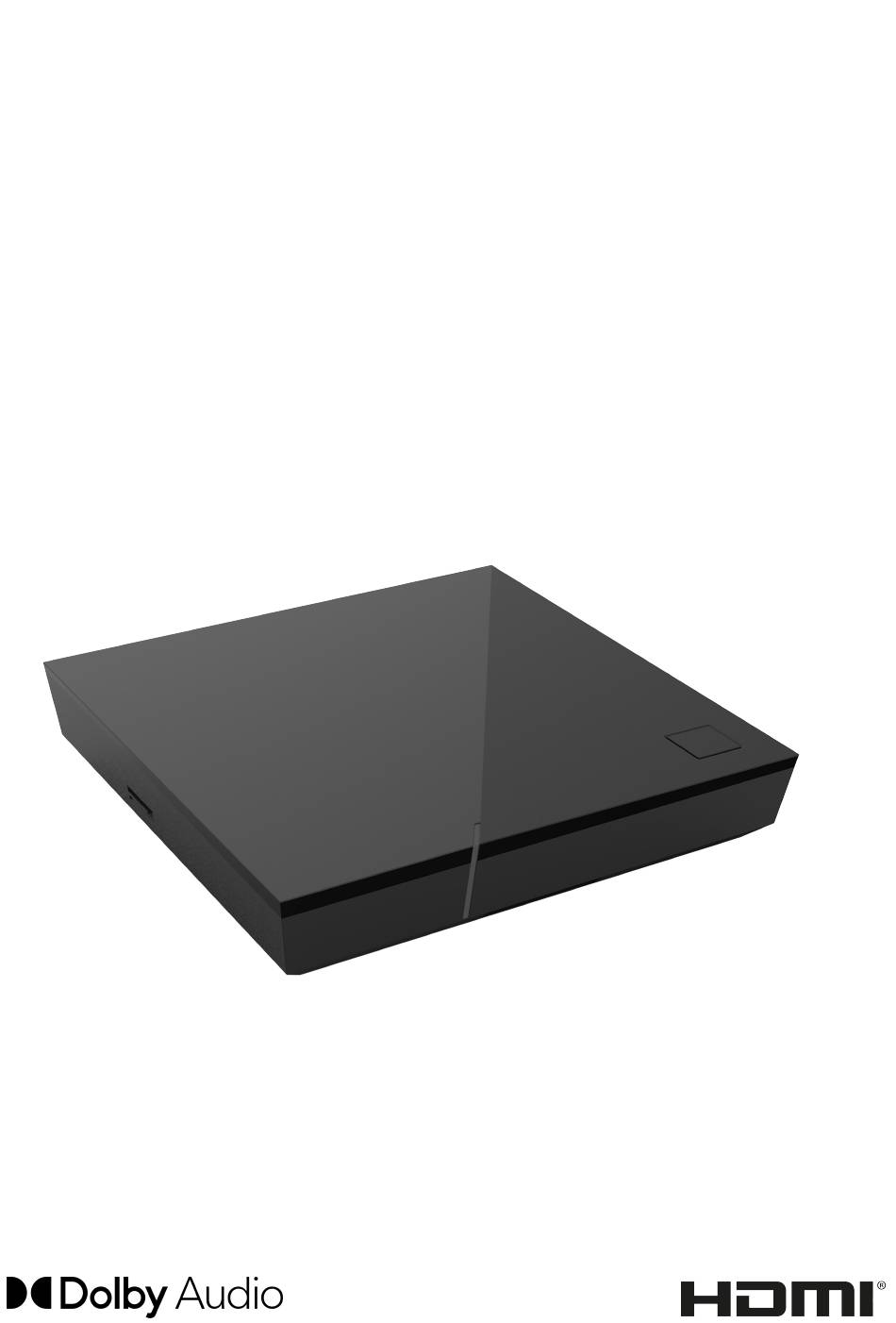

- Page 1 P570 Hybrid IPTV set-top box Instructions for use Important: Read carefully before use and retain for future reference.
-
Page 2: Table Of Contents
Resetting the remote control..............20 Cleaning....................21 Returning used devices................21 Troubleshooting..................22 10 Legal notes..................... 25 10.1 Registered trademarks and notes on licences........25 10.2 Open Source Software.................. 25 11 Declaration of conformity............... 25 12 Technical specifications................. 26 2 | P570 Hybrid... -
Page 3: Safety Information
Maintain the following minimum clearances around the set-top box: 10 cm above, 5 cm behind, 2 cm on the sides. Never put the set-top box into a cabinet or shelf with insufficient ventilation. P570 Hybrid | 3... - Page 4 The heating of the set-top box is in the permissible range. However, sensitive furniture finishes may become discoloured over time due to ongoing heat exposure. The base can cause discolouration of furniture finishes. Place the set- top box on a suitable underlay if needed. 4 | P570 Hybrid...
-
Page 5: Intended Use
Modification of the hardware and software 3 Scope of delivery Set-top box Remote control Power supply 2 x alkaline batteries type AAA High speed HDMI Cable (1,5 m) Instructions for use ® Network cable (3 m) P570 Hybrid | 5... -
Page 6: Connections
Connect the cables to the set-top box in the correct order. Make sure that the network cable engages audibly. Interrupting the power supply during installation Never disconnect the power to the set-top box box during installation or when updating the software. This avoids possible damage. 6 | P570 Hybrid... -
Page 7: Inserting The Batteries Into The Remote Control
5.2 Cable connections 1. Connect the set-top box as shown in Figure 3 on page 8. Observe the correct connection sequence: HDMI cable ® Network cable Coax cable Power supply 2. Turn on your TV set. P570 Hybrid | 7... -
Page 8: Pairing The Remote Control With The Set-Top Box
After the remote control is paired with the set-top box, the language selection options are displayed. Select the language of your choice for the user interface. 1. Select the language you want. 2. Confirm your selection by pressing the OK button. 8 | P570 Hybrid... -
Page 9: Establishing The Network Connection
Section "Establishing a WiFi connection" on page 9. 5.5.1 Establishing a WiFi connection Various methods are available for establishing a WiFi connection: Search: The set-top box searches for available WiFi networks. Advanced: Use WPS, or enter the SSID manually. P570 Hybrid | 9... - Page 10 4. Use the on-screen keyboard that is displayed to enter the WiFi password and confirm your input by pressing OK. 5. Wait until the connection is established and then press Quit repeatedly until the message Successfully established the network connection. is displayed. Figure 5: WiFi setup 10 | P570 Hybrid...
- Page 11 To establish a WiFi connection using the advanced WiFi setup, proceed as follows: 1. In the setup menu, activate the button Advanced. 2. Navigate to the setup method of your choice. 3. Then follow the instructions on the TV set. P570 Hybrid | 11...
- Page 12 5.5.2 Checking the WiFi status In the WiFi status: menu, you can access the current data for your WiFi connection such as the signal strength or the MAC address of your WiFi adapter. Figure 8: WiFi status overview 12 | P570 Hybrid...
-
Page 13: Software Updates
TV set. This allows you to control the set-top box and your TV set with the remote control. To change the operating mode (Bluetooth or infrared), see Section "Changing the operating mode" on page 16. P570 Hybrid | 13... -
Page 14: Button Functions
6.1 Button functions Figure 9: Button functions 14 | P570 Hybrid... - Page 15 Page up/down End playback (recorder/replay/ Show quick guide video on demand) Show programme details Current programme (TV guide) Delete character Open stream settings Go to previous programme Turn screen off (radio) Show help Show list of favourites P570 Hybrid | 15...
-
Page 16: Changing The Operating Mode
Note the specifications for the respective programming type. If you deviate from them or do not press a button for 15 seconds, the programming process is cancelled. This is shown by the green LED flashing once. 16 | P570 Hybrid... - Page 17 If the TV set does not respond to the command, complete steps 2 through 4 using other codes from the TV code list until the TV set turns off. 5. Switch the TV set on again and repeat step 4 to try other buttons, checking whether they work correctly. P570 Hybrid | 17...
- Page 18 4. Press the button to confirm the TV code. The red LED flashes twice in quick succession. Brand Code Brand Code Samsung Loewe Grundig Sony Sharp Philips Toshiba Panasonic Table 2: Brand codes 18 | P570 Hybrid...
-
Page 19: Controlling The Tv
TV set’s original remote control. After programming a valid code, you can control your TV set. Press and hold the button, and then press the desired button to control your TV set. P570 Hybrid | 19... -
Page 20: Unpairing The Remote Control (Bluetooth Mode)
If the green LED flashes twice in quick succession, the remote control has been reset to the factory settings. The remote control is in Bluetooth mode. The Bluetooth connection to the set-top box and the programmed TV code (if any) have been erased. 20 | P570 Hybrid... -
Page 21: Cleaning
Reusing materials and recycling used devices makes an important contribution to protecting our environment. To facilitate the disposal of used devices containing batteries, the batteries have to be removed before the devices are brought to a public collection centre. P570 Hybrid | 21... -
Page 22: Troubleshooting
If the problem box. persists, you have to pair the remote control again (see Section "Pairing the remote control with the set-top box" on page 8). 22 | P570 Hybrid... - Page 23 8). No picture No mains connection. Check that the power supply unit and cable are properly connected. Defective cable Check cable connections connection. to make sure they are tight. P570 Hybrid | 23...
- Page 24 15 minutes. was performed This may take up to 15 minutes. Table 3: Troubleshooting In case of further issues, contact your network operator. 24 | P570 Hybrid...
-
Page 25: Legal Notes
10 Legal notes 10.1 Registered trademarks and notes on licences Dolby, Dolby Audio and the double-D symbol are registered trade- marks of Dolby Laboratories Licensing Corporation. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. -
Page 26: Technical Specifications
Interfaces Bluetooth Infrared 36 KHz (RC-5:SAT2) Wifi IEEE 802.11 b/g/n/ac/ax (2,4 / 5 GHz) Wifi security WPA / WPA2 PSK Copy protection Verimatrix Viewright HDMI HDCP 2.2 ® Table 4: Technical specifications of the set-top box 26 | P570 Hybrid... - Page 27 Environmental conditions Temperature +5 - +40 °C Humidity 20 - 80 % Details of the radio standard Frequency band 2,402 - 2,480 GHz Max. transmitter power 1 mW Table 6: Technical specifications of the remote control P570 Hybrid | 27...
- Page 28 Version 2.7 Date 02-10-2023 Manufacturer: Ocilion IPTV Technologies GmbH Schärdinger Straße 35 • 4910 Ried im Innkreis / AUSTRIA Telephone: +43 7752 2144-0 • Internet: www.ocilion.com In the course of product improvements, we reserve the right to make technical and visual changes to the devices described in these instructions for use.
