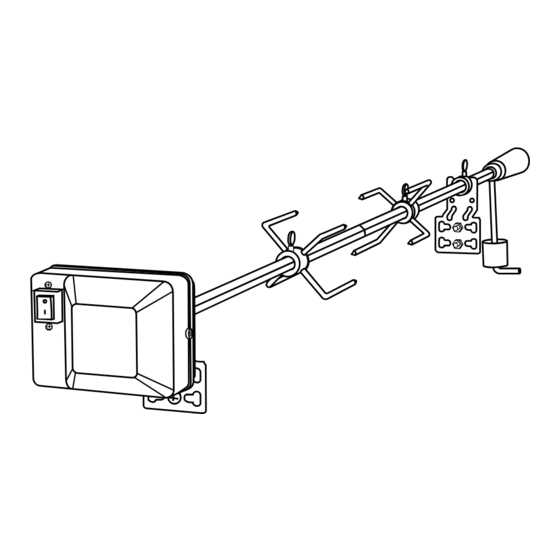

- Page 1 ROTISSERIE MODEL: RK45 KEEP THIS USER MANUAL FOR FUTURE REFERENCE.
-
Page 2: Rotisserie Kit
ROTISSERIE MODEL: RK45 KEEP THIS USER MANUAL FOR FUTURE REFERENCE. -
Page 3: Safety Instructions
Safety Instructions • Read all instructions before using your rotisserie motor. • Remove the motor and store it in a dry place when not in use. • This rotisserie motor is not for use by children. • Do not touch hot surfaces. Use barbecue mitts. •... -
Page 4: Parts List
Parts List Part Descri ption Part Descri ption Motor Rod Bushing Motor Mount Counterweight Motor Mount Support Bracket Rod Support Bracket 17in Spit Rod ×2 Rod Handle 11in Extension Spit Rod M4 Screw ×4 4-Prong Meat Fork × 2 1/4” Bolt & Nut & Washer ×4... - Page 5 Preparation Before beginning assembly or operation, make sure all parts are present. Compare parts with parts list. If any part is missing or damaged, do not attempt to assemble or operate the product. Contact customer service for replacement parts. • Tools Required for Assembly (not included): Screwdriver, Pliers 1.
- Page 6 3. Assemble your spit rod to the length that you need. a. Screw the 17in Spit Rods(D) together. Tighten the spit rods securely with pliers. Fits grills with a cookbox up to 28" wide. b. Screw the 17in Spit Rods(D) and 11in Extension Spit Rod(E) together. Tighten the spit rods securely with pliers.
- Page 7 5. Attach the Rod Support Bracket(I) on the outside of the grill's right side with 1/4” Bolts & Nut & Washers (L). 6. Mount the Motor (A) onto the Motor Mount (B).
- Page 8 7. Slide Spit Rod into Motor socket, make sure the Rod Bushing(G) is resting on the Rod Support Bracket(I) and that Spit Rod is aligned properly with the rotisserie Motor(A). Using a combination of sections, securely assemble the spit rod to a length that will rest on both the Motor socket and the Rod Support Bracket.
-
Page 9: Operating Tips
• If foods are too heavy or are irregular shapes, they may not rotate well and should be cooked by the indirect cooking method without using the rotisserie. Warranty Information TURBRO provides 1-year limited warranty for FIRESIDE Rotisserie Kit, from the date of purchase, subject to the following conditions and limitations. WHAT IS COVERED? •...
