Cudy GS1028PS2 Quick Installation Manual

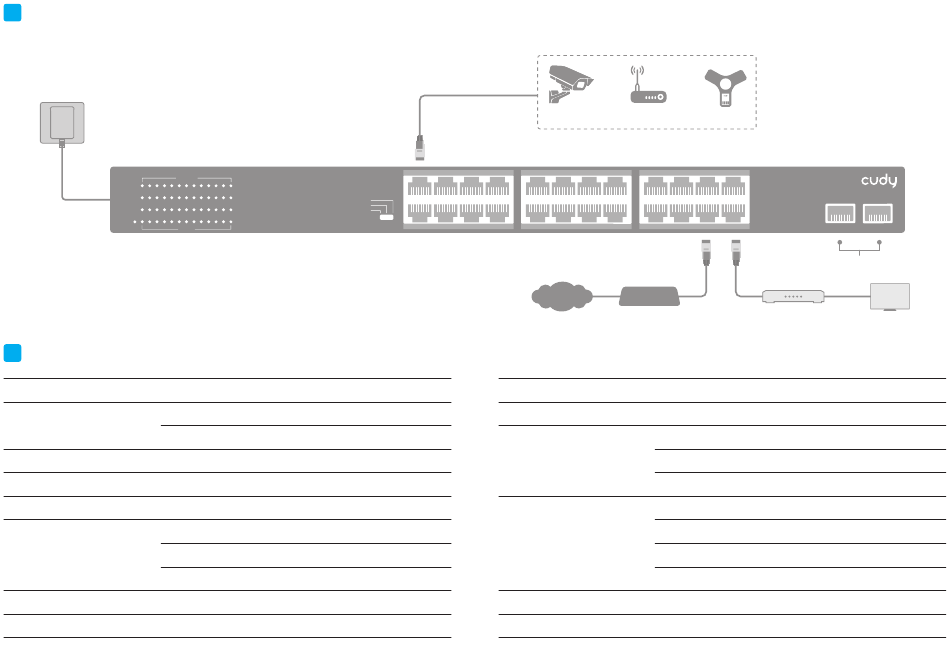

1 Hardware Connection
Power Socket
LNK/ACT
2 4 6 8 10 12 14 16 18 20 22 24 26
Power input:
1 3 5 7 9 11 13 15 17 19 21 23 25
PWR
AC100-240V
1000M
2
Specifications
Model GS1028PS2
IEEE802.3 / IEEE802.3u / /IEEE802.3x
Network Protocol
IEEE802.3ab / IEEE802.3z / IEEE802.3af/at
PoE Standard IEEE802.3af (15.4w) and IEEE802.3at (30W)
POE port output DC48-55V
Power Pin Power over spare pairs 1/2(+) , 3/6 (-)
10BASE-T: Cat3、4、5 or higher UTP(≤100 meter)
100BASE-TX: Cat5 or UTP (≤100 meter)
Network Media
1000BASE-TX: Cat5 or UTP (≤100 meter)
Bandwidth 8K
MAC 4M
Act
1000M
Extend(17-24)
Default
Act VLAN(1-24)
1000M
Powered Device (PD)
IP Camera
2 4 6 8 10 12 14
1 3 5 7 9 11 13
Internet
Packet Buffer Memory
Packet Forwarding Rate
Power Supply
Optical
MTBF
Product Dimension
Wireless AP Smart VoIP
16 18 20 22 24

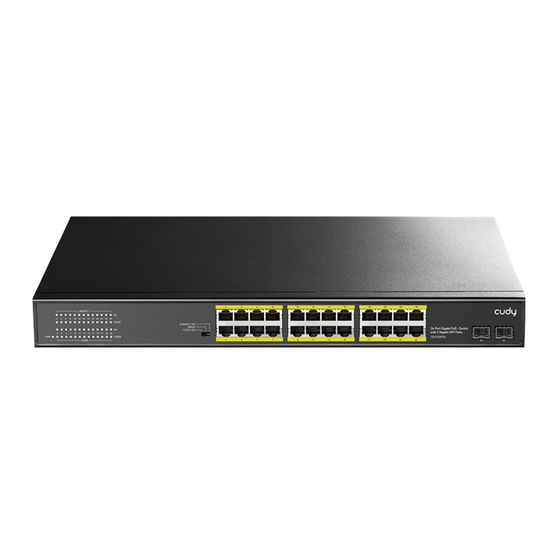

24-Port Gigabit PoE+ Switch
with 2 Gigabit SFP Ports
GS1028PS2
15 17 19 21 23
Router
NVR
52Gbps
38.7Mpps
Power input: AC100-240V 50/60Hz
Output: 52V5.76A
Power Budget: 300W
Single-Mode Fiber: 850nm, 1310nm
Transmission Distance: 550m/2Km
Single-Mode Fiber: 1310nm, 1550nm
Transmission Distance: 20/40/60/80/100/120km
100,000 hours
410x185x44.5mm
26 25
SFP Slot
Monitor
