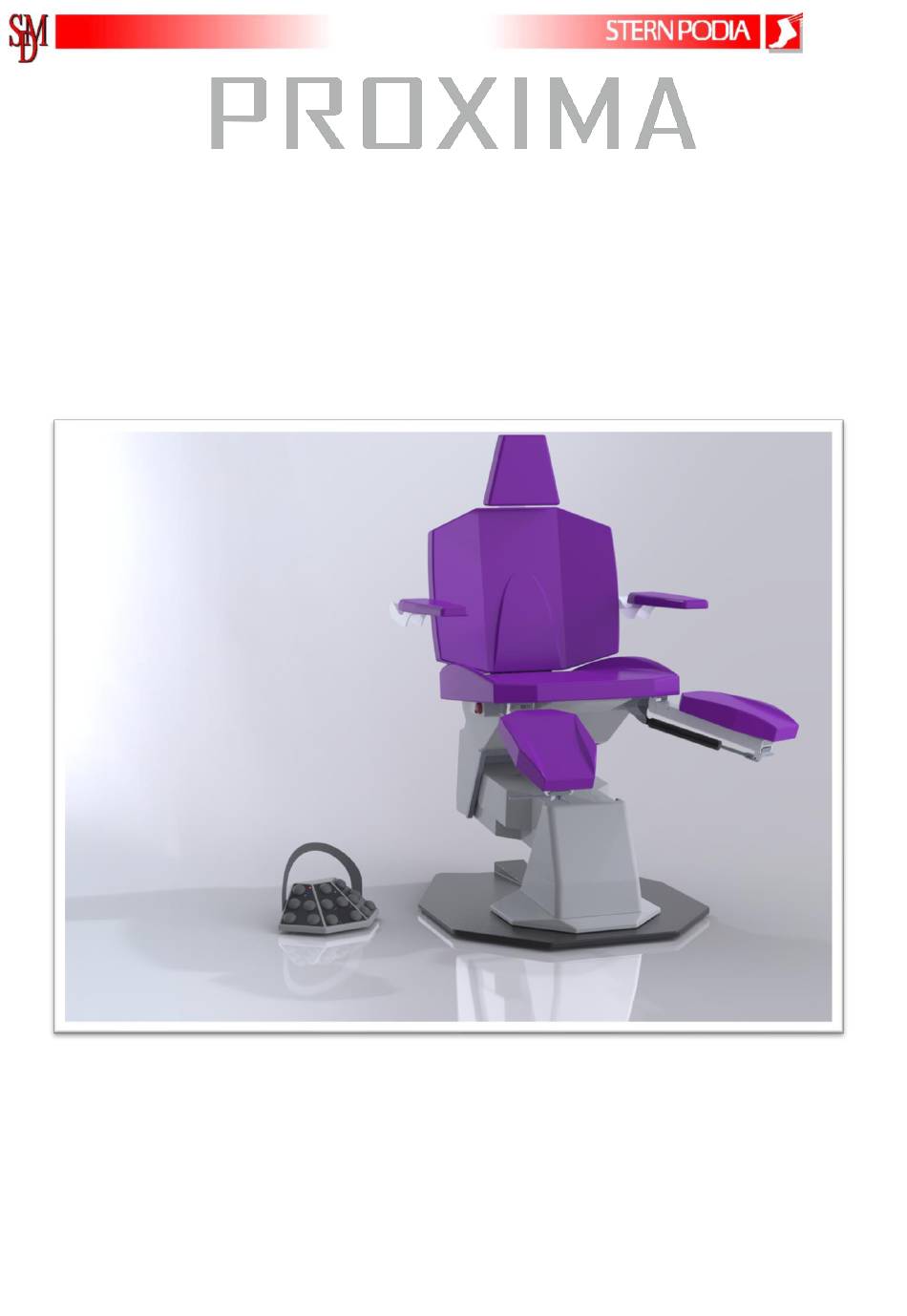

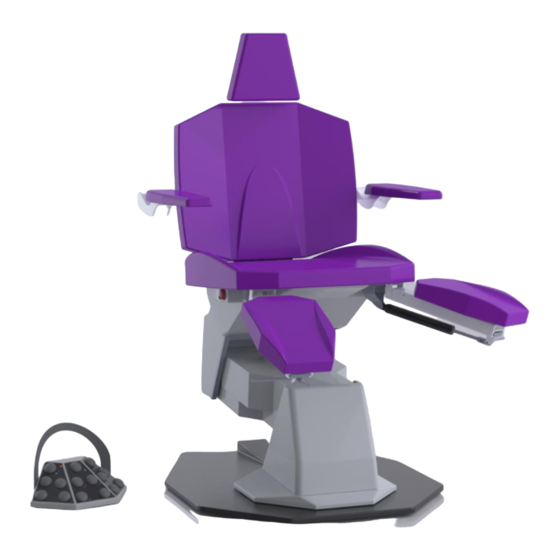

  • Page 1 Podiatry chair USER MANUAL Page 1 Rev.00 dated 31/01/2023...

  • Page 2: Table Of Contents

    Thank you for choosing STERN PODIA products. STERN PODIA products have been designed and manufactured to meet your present needs and, thanks to its in-built versatility and adaptability, your future needs too. Before using this unit, it is good practice to read this handbook carefully and keep it safely.

  • Page 3: Warnings

    ▪ Proxima podiatry chair is a device used by the podiatrist for the patient support during podiatry interventions. ▪ Proxima has been developed and constructed for the use with patients of both sexes of all ages, with a maximum weight of 220 Kg.

  • Page 4: Identification

    S.M.D. cannot be held liable for any damages deriving from failure to observe the warnings and instructions contained in this handbook. 1. I DENTIFICATION The chair can be identified by the ID plate, positioned in the back, where the technical and identification data of the product are displayed.

  • Page 5: Description Of Components And Operation

    ESCRIPTION OF COMPONENTS AND OPERATION Headrest Backrest C Seat D Armrests Leg-rests on/off switch G Emergency button H Foot pedal 1.1. Turning on and off After connecting the chair to the mains, using the appropriate cable supplied, turn on the on/off switch (F) located on the back of the chair.
  • Page 6 1.3. Automatic controls The automatic movements of the Proxima podiatry chair are made possible thanks to the presence of three motors, which can be activated and regulated using the foot pedal (H). The foot pedal allows you to control the movements of the chair with the Single Touch function.
  • Page 7 Backrest movement By pressing the button 6 and 7 the inclination of the backrest of the chair is made possible. The backrest inclination range is between 0° and 80°. Warning: while performing this movement make sure not to put the patient in an uncomfortable position. 1.4.
  • Page 8 Each armrest is independent and can be adjusted. The armrests are easily tipping, helping the patient to get on and off the chair. Proxima is an ambidextrous chair, this feature allows the patient to access it both from the front and from the side.

  • Page 9: Wireless System

    2. W IRELESS SYSTEM The WIRELESS SYSTEM allows the activation of the movements of the PROXIMA chair without using the connection cable. The pedal uses rechargeable batteries (type AA with a power of 2500 mA) housed in a special compartment accessible in the base of the foot pedal.

  • Page 10: Cleaning And Maintenance

    PLEASE NOTE: It is advisable to use disposable protections for the fabric parts of the chair. Proxima podiatry chair does not require particular maintenance, however it is advisable to foresee periodic checks to be performed by the Authorized Assistance Service.

  • Page 11: Technical Specifications

    4. T ECHNICAL SPECIFICATIONS Power supply 230 VAC single phase /50Hz Operating voltage 32 V Podiatry chair absorption 300 VA Allowed mains voltage fluctuation +/- 10% Mains fuses n.1 (T.6,3A/250V) Electrical protection rating Class 1 – Type B Liquids protection rating IPX 0 Separate on-off switch Capacity 16A/ trip threshold 10 mA...

  • Page 12: Key To Symbols

    5. K EY TO SYMBOLS See the operative Alternating Current instructions WARNING: see Earth connection instruction manual before use Customer Support Class 1 - Type B Service (task to be Equipment done by qualified S.P.V. technical staff only) High Voltage (230 V) Part than can be sterilized in autoclave (connected to power...

  • Page 13: Dimensions

    6. D IMENSIONS Dimensions are expressed in mm. Page 13 Rev.00 dated 31/01/2023...

  • Page 14: Conformity Declaration

    UDI-DI from ÷ to 3920000 3920000-00000 3920000-99999 08058946990291 ÷ Podiatry 3920010 3920010-00000 3920010-99999 08058946990307 ÷ Proxima chair 3920100 3920100-00000 3920100-99999 08058946990314 ÷ 3920110 3920110-00000 3920110-99999 08058946990321 ÷ Device used by the podiatrist to support the patient during outpatient Intended use procedures.
