MBoS User Manual
Modular Breakout System -
Breakout Box & Fault Insertion Unit
pickeringtest.com
Issue 6.3 July 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MBoS and is the answer not in the manual?

Questions and answers

Related Manuals for Pickering MBoS

Summary of Contents for Pickering MBoS

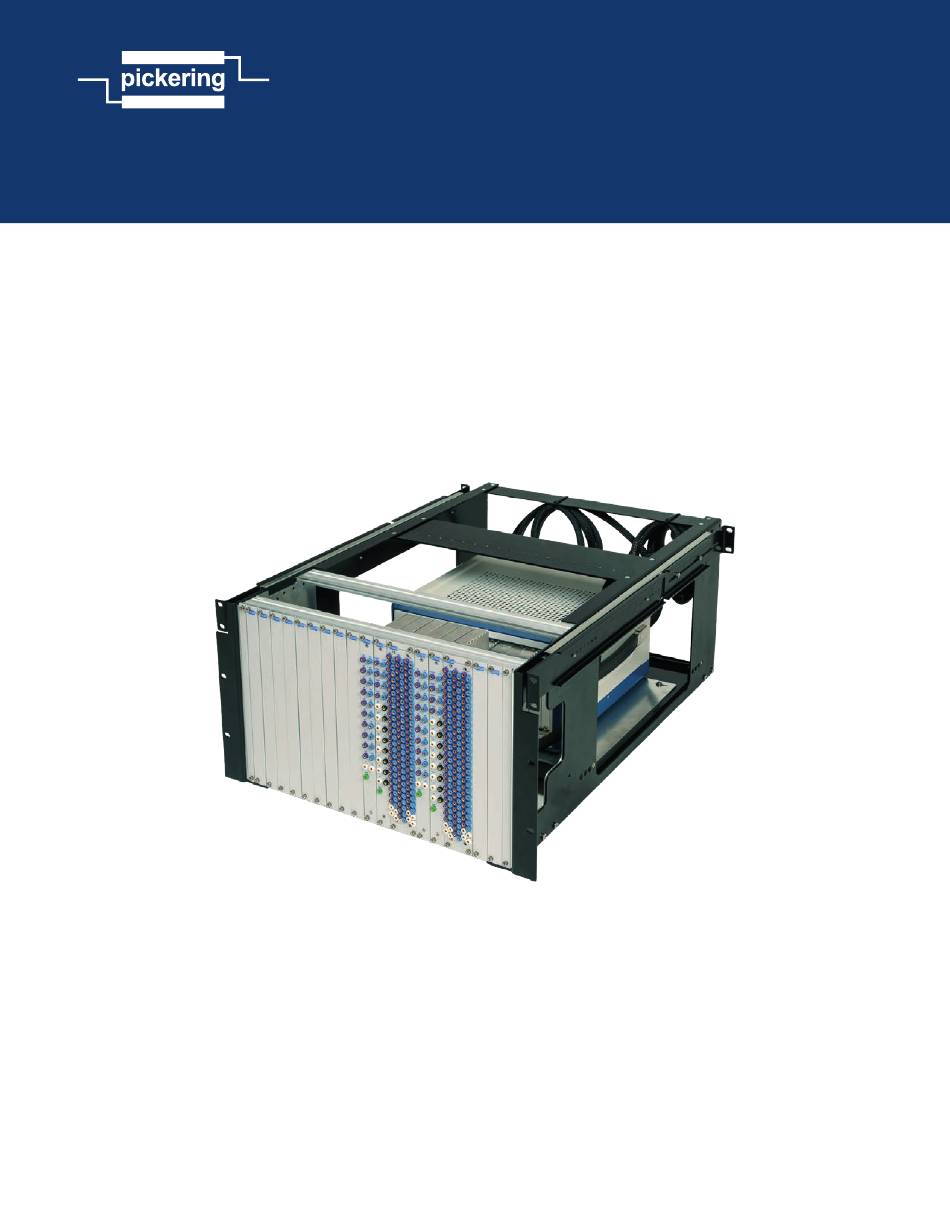

  • Page 1 MBoS User Manual Modular Breakout System - Breakout Box & Fault Insertion Unit pickeringtest.com Issue 6.3 July 2023...
  • Page 2 MBoS, Modular Breakout System © Copyright (2023) Pickering Interfaces. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
  • Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

  • Page 4: Product Safety

    Product Safety MBoS, Modular Breakout System Safety Symbols The following safety symbols may be used on the product and throughout the product documentation. Meaning / Description Symbol PROTECTIVE EARTH (GROUND) To identify any terminal which is intended for connection to an external conductor for protection against electric shock in case of a fault, or the terminal of a protective earth (ground) electrode.

  • Page 5: Table Of Contents

    Contents (this page) ........................... v Warnings and Cautions ........................vii Section 1 - Technical Specification ....................1.1 MBoS Chassis Mounting Frame....................1.1 MBoS Breakout Modules ......................1.4 Section 2 - Technical Description ....................2.1 Introduction ..........................2.1 MBoS Frame ..........

  • Page 6: Warnings And Cautions

    Unused slots in this chassis are populated with blanking plates to prevent access to user I/O signals that may be present. Blanking panels are available to order from Pickering in a variety of slot widths. If the product is not used in this manner for example by using an extender card then additional care must be taken to avoid contact with exposed signals.

  • Page 7: Section 1 - Technical Specification

    As the modular design uses PXI, users can take advantage prior to writing test code. The majority of the BoBs and FIU of Pickering’s large range of FIU modules - the largest in the systems available today are not modular and are fixed in industry.
  • Page 8 See individual Breakout Module data Insertion Switches & Programmable Resistors - see sheets for more information. individual Breakout data sheets for details 672mm (95-901-00x versions) 872mm (95-901-10x versions) 638mm (95-901-00x versions) 838mm (95-901-10x versions) MBoS Chassis Mounting Frame Dimensions pickeringtest.com Page 1.2...
  • Page 9 95-901-104 New Designs Large for NI PXIe-1092, 10-slot chassis 95-901-105 Pickering is always looking to expand our catalog of FIU and Obsolete: Breakout System options. If you don’t see what you need, Small for 40-922-001, 8-slot contact us and we will see if we can accommodate your test...

  • Page 10: Mbos Breakout Modules

    Pickering PXI, hybrid or LXI Modular connector of the PXI module, and signals for the UUT and Chassis which in turn is fitted into a Pickering MBoS frame. Simulation system are accessible via separate connectors (same connector family as PXI module front panel) located The MBoS system is primarily designed for Hardware-in- toward the rear face of the breakout module.
  • Page 11 Section 1 - Technical Specification MBoS, Modular Breakout System Available Breakout Modules Specification - 95-192-001 The currently available Breakout modules are listed below PXI Module Compatibility: 40-192 PXI 10 A Fault and the following tables outline their specifications. Insertion Switch module.
  • Page 12 Section 1 - Technical Specification MBoS, Modular Breakout System Specification - 95-196-001 Specification - 95-199-001 PXI Module Compatibility: 40-196 PXI 5 A Fault Insertion PXI Module Compatibility: 40-199 PXI 10 A Fault Switch modules. Insertion Switch modules. Breakout Module Size...
  • Page 13 Section 1 - Technical Specification MBoS, Modular Breakout System Specification - 95-293-001 Specification - 95-296-001 PXI Module Compatibility: 40-293 series of PXI PXI Module Compatibility: 40-296 series of PXI Programmable Resistor & Programmable Relay modules. Potentiometer modules. Breakout Module Size...
  • Page 14 95-196-001 40-525A Signal Insertion & Monitor Matrix 95-525A-001 Product Customization Pickering modules are designed and manufactured on our own flexible manufacturing lines, giving complete product control and enabling simple customization to meet very specific requirements. All customized products are given a unique part number, fully documented and may be ordered at any time in the future.

  • Page 15: Section 2 - Technical Description

    MBoS Frame The MBoS frame is a 19 inch full rack width mounting frame for a PXI, Hybrid or LXI chassis. Breakout modules mount on the front of the frame and mate with the front panels of the PXI modules installed in the chassis. The frame has sufficient clearance above and below the chassis to allow cabling to be routed in a way best suited to the application - this would usually be out of the rear of the frame.

  • Page 16: Cabling

    Programmable Resistor modules. A Breakout Module is designed to mate with the front panel connector(s) of a specific PXI module fitted into a PXI, Hybrid or LXI chassis which is in turn fitted into the MBoS frame. The user signals from the PXI module are routed to the front panel of the Breakout Module where they are accessible via individual terminals.

  • Page 17: How To Use The Breakout System

    MBoS, Modular Breakout System How to Use The Breakout System Once the MBoS has been integrated into a test system, the terminals on the front panel of the Breakout Modules can be used in a number of ways: • Manually simulate short and open circuit conditions between signals to confirm a test process before it is automated using the fault insertion module.
  • Page 18 Breakout Breakout or Ethernet Module Terminals (LXI Chassis) From Simulator Figure 2.2 - System Diagram For Typical Application of the MBoS With 40-190B & 40-199 PXI Fault Insertion Switch Modules and a 40-294 PXI Programmable Resistor Module pickeringtest.com Page 2.4...
  • Page 19 Section 2 - Technical Description MBoS, Modular Breakout System Connections to Unit Under Test (78-Pin Female D-Type) PXI, Hybrid 40-190B PXI 2A Fault Insertion 95-190B-003 or LXI Host Switch Module Breakout Chassis Module For pinout details of the 95-190B-003 breakout module see Figure 3.1...
  • Page 20 Section 2 - Technical Description MBoS, Modular Breakout System Connections to Unit Under Test (8-Pin Female Power D-Type) PXI, Hybrid 40-191 PXI 30A Fault Insertion Switch Module 95-191-002 or LXI Host Breakout Chassis Module For pinout details of the 95-191-002...
  • Page 21 Section 2 - Technical Description MBoS, Modular Breakout System Connections to Unit Under Test (8-Pin Female Power D-Type) PXI, Hybrid 40-192 PXI 10A Fault Insertion Switch Module 95-192-001 or LXI Host Breakout Chassis Module For pinout details of the 95-192-001...
  • Page 22 Section 2 - Technical Description MBoS, Modular Breakout System Connections to Unit Under Test (8-Pin Female Power D-Type) PXI, Hybrid 40-193 PXI 20A Fault Insertion Switch Module 95-193-001 or LXI Host Breakout For pinout Chassis Module details of the 95-193-001...
  • Page 23 Section 2 - Technical Description MBoS, Modular Breakout System Connections to Unit Under Test (8-Pin Female Power D-Type) PXI, Hybrid 40-194 PXI 20A Fault Insertion Switch Module 95-194-001 or LXI Host Breakout For pinout Chassis Module details of the 95-194-001...
  • Page 24 Section 2 - Technical Description MBoS, Modular Breakout System Connections to Unit Under Test (50-Pin Female D-Type) PXI, Hybrid 40-196 PXI 5A Fault Insertion 95-196-001 or LXI Host Switch Module Breakout Chassis Module For pinout details of the 95-196-001 breakout module see Figure 3.6...
  • Page 25 Section 2 - Technical Description MBoS, Modular Breakout System Connections to Unit Under Test (78-Pin Female D-Type) PXI, Hybrid 40-197A PXI 2A Fault Insertion 95-197A-001 or LXI Host Switch Module Breakout Chassis Module For pinout details of the 95-197A-001 breakout module see Figure 3.7...
  • Page 26 Section 2 - Technical Description MBoS, Modular Breakout System Connections to Unit Under Test (50-Pin Female D-Type) PXI, Hybrid or 40-198 PXI 2A Fault Insertion 95-198-001 LXI Host Chassis Switch Module Breakout Module For pinout details of the 95-198-001 breakout module see Figure 3.8...
  • Page 27 Section 2 - Technical Description MBoS, Modular Breakout System Connections to Unit Under Test (20-Pin Female GMCT) PXI, Hybrid or 40-199 PXI 10A Fault Insertion 95-199-004 LXI Host Chassis Switch Module Breakout Module For pinout PXI Module’s details of the...
  • Page 28 Section 2 - Technical Description MBoS, Modular Breakout System Connections to Unit Under Test (78-Pin Female D-Type) PXI, Hybrid or 40-200 PXI Differential Bus LXI Host Fault Insertion Switch Module For pinout Chassis details of the PXI Module’s Signal 95-200-001...
  • Page 29 Section 2 - Technical Description MBoS, Modular Breakout System Connections to Unit Under Test (78-Pin Female D-Type) PXI, Hybrid or 40-201 PXI Ethernet Fault LXI Host Chassis Insertion Switch Module For pinout PXI Module’s Signal Connector (78-Pin details of the...
  • Page 30 Section 2 - Technical Description MBoS, Modular Breakout System Connections to Unit Under Test (37-Pin Female D-Type) For pinout details of the PXI, Hybrid or LXI 40-293 PXI Programmable 95-293-001 95-293-001 Host Chassis Resistor & Relay Module Breakout breakout Module module see Figure 3.12...
  • Page 31 Section 2 - Technical Description MBoS, Modular Breakout System Connections to Unit Under Test (78-Pin Female D-Type) For pinout details of the PXI, Hybrid or LXI 40-294 PXI Programmable 95-294-001 95-294-001 Host Chassis Resistor & Relay Module Breakout breakout Module module see Figure 3.13...
  • Page 32 Section 2 - Technical Description MBoS, Modular Breakout System Connections to Unit Under Test (37-Pin Female D-Type) For pinout details of the PXI, Hybrid or LXI 40-295 PXI Programmable 95-295-001 95-295-001 Host Chassis Resistor & Relay Module Breakout breakout Module module see Figure 3.14...
  • Page 33 Section 2 - Technical Description MBoS, Modular Breakout System Connections to Unit Under Test (37-Pin Female D-Type) For pinout details of the PXI, Hybrid or LXI 40-296 PXI Programmable 95-296-001 95-296-001 Host Chassis Potentiometer Module Breakout breakout Module module see Figure 3.15...
  • Page 34 Section 2 - Technical Description MBoS, Modular Breakout System Connections to Unit Under Test (78-Pin Female D-Type) For pinout details of the PXI, Hybrid 40-525A PXI Signal Insertion PXI Module’s Signal 95-525A-001 or LXI & Monitor Matrix Module Connector (78-Pin...
  • Page 35 Section 3 - Connectors MBoS, Modular Breakout System Introduction The following pages provide the connector pinout allocations for all the breakout modules currently available in the Pickering MBoS range: Figure 3.1 - 95-190B-003 Breakout Module for 40-190B 2A Fault Insertion Switch Figure 3.2 - 95-191-002 Breakout Module for 40-191 30A Fault Insertion Switch...
  • Page 36 Section 3 - Connectors MBoS, Modular Breakout System Figure 3.1 - Pinouts: 95-190B-003 Breakout Module for 40-190B 78-Pin Female D-Type Connector (for connection to Unit Under Test) 95-190B-003 Breakout Module MON1 MON2 160-Pin Female DIN 41612 Connector (connects to 78-Pin Male...
  • Page 37 Section 3 - Connectors MBoS, Modular Breakout System Figure 3.2 - Pinouts: 95-191-002 Breakout Module for 40-191 8-Pin Female D-Type Power Connector (for connection to Unit Under Test) 95-191-002 Breakout Module COM1 COM2 COM2 COM1 2x 8-Pin Female D-Type COM1...
  • Page 38 Section 3 - Connectors MBoS, Modular Breakout System Figure 3.3 - Pinouts: 95-192-001 Breakout Module for 40-192 8-Pin Female D-Type Power Connector (for connection to Unit Under Test) 95-192-001 Breakout Module COM1 COM2 COM2 COM1 2x 8-Pin Female D-Type COM1...
  • Page 39 Section 3 - Connectors MBoS, Modular Breakout System Figure 3.4 - Pinouts: 95-193-001 Breakout Module for 40-193 8-Pin Female D-Type Power Connector (for connection to Unit Under Test) COM2 95-193-001 Breakout Module COM1 COM2 COM1 2x 8-Pin Female D-Type COM1...
  • Page 40 Section 3 - Connectors MBoS, Modular Breakout System Figure 3.5 - Pinouts: 95-194-001 Breakout Module for 40-194 8-Pin Female D-Type Power Connector (for connection to Unit Under Test) COM2 95-194-001 Breakout Module COM1 COM2 COM1 2x 8-Pin Female D-Type COM1...
  • Page 41 Section 3 - Connectors MBoS, Modular Breakout System Figure 3.6 - Pinouts: 95-196-001 50-Pin Female Breakout Module for 40-196 D-Type Connector OUT3.1 (for connection to OUT1.1 OUT2.1 Unit Under Test) OUT1.2 OUT3.2 OUT2.2 OUT6.1 IN1.1 OUT1.1 OUT4.1 OUT5.1 IN1.2 OUT1.2 OUT4.2...
  • Page 42 Section 3 - Connectors MBoS, Modular Breakout System Figure 3.7 - Pinouts: 95-197A-001 Breakout Module for 40-197A 78-Pin Female D-Type Connector (for connection to Unit Under Test) FP_GND FP_GND 95-197A-001 Breakout Module FP_GND FP_GND 78-Pin Female D-Type Connector (connects FP_GND...
  • Page 43 Section 3 - Connectors MBoS, Modular Breakout System Figure 3.8 - Pinouts: 95-198-001 Breakout Module for 40-198 50-Pin Female D-Type Connector (for connection to Unit Under Test) FP_GND 95-198-001 Breakout Module FP_GND 50-Pin Female D-Type Connector (connects FP_GND to front panel of...
  • Page 44 Section 3 - Connectors MBoS, Modular Breakout System Figure 3.9 - Pinouts: 95-199-004 Breakout Module for 40-199 20-Pin Female GMCT Connector (for connection to Unit Under Test) FP_GND 95-199-004 Breakout Module 3-Pin Female Power D-Type & 20-Pin Female GMCT Connectors...
  • Page 45 Section 3 - Connectors MBoS, Modular Breakout System Figure 3.10 - Pinouts: 95-200-001 Breakout Module for 40-200 CH8.2 OUT 78-Pin Female CH8.1 OUT D-Type Connector CH7.2 OUT (for connection to CH7.1 OUT Unit Under Test) CH6.2 OUT CH6.1 OUT CH5.2 OUT CH5.1 OUT...
  • Page 46 Section 3 - Connectors MBoS, Modular Breakout System Figure 3.11 - Pinouts: 95-201-001 78-Pin Female D-Type Connector Breakout Module for 40-201 (for connection to FP_GND FP_GND Unit Under Test) DB_IN2+/RX_IN2+ DB_IN1+/RX_IN1+ DA_IN2+/TX_IN2+ DA_IN1+/TX_IN1+ DB_IN2-/RX_IN2- DB_IN1-/RX_IN1- DA_IN2-/TX_IN2- DA_IN1-/TX_IN1- DD_IN2- DA_OUT1+/TX_OUT1+ DD_IN2+...
  • Page 47 Section 3 - Connectors MBoS, Modular Breakout System Figure 3.12 - Pinouts: 95-293-001 Breakout Module for 40-293 CH1 OUT 37-Pin Female CH2 OUT D-Type Connector CH3 OUT (for connection to CH4 OUT Unit Under Test) * CH1 OUT CH1 IN...
  • Page 48 MBoS, Modular Breakout System Table 3.1 - Pin-out Differences for 40-293 Module Signal Definition Per Module Adaptor Legend Module Pin 40-293-02x & 40-293-12x & 40-293-01x 40-293-11x 40-293-03x 40-293-13x CH1 OUT CH1 OUT No Connect CH1 OUT No Connect CH2 OUT...
  • Page 49 Section 3 - Connectors MBoS, Modular Breakout System Figure 3.13 - Pinouts: 95-294-001 Breakout Module for 40-294 CH4 OUT CH2 OUT CH3 OUT CH1 OUT 78-Pin Female D-Type Connector (for connection to Unit Under Test) * CH1 OUT CH1 IN...
  • Page 50 MBoS, Modular Breakout System Table 3.2 - Pin-out Differences for 40-294 Module Signal Definition Per Module Adaptor Legend Module Pin 40-294-02x & 40-294-12x & 40-294-01x 40-294-11x 40-294-03x 40-294-13x CH1 OUT CH1 OUT No Connect CH1 OUT No Connect CH2 OUT...
  • Page 51 Section 3 - Connectors MBoS, Modular Breakout System Figure 3.14 - Pinouts: 95-295-001 Breakout Module for 40-295 CH1 OUT 37-Pin Female CH2 OUT D-Type Connector CH3 OUT (for connection to CH4 OUT Unit Under Test) * CH5 OUT CH6 OUT...
  • Page 52 MBoS, Modular Breakout System Table 3.3 - Pin-out Differences for 40-295 Module Signal Definition Per Module Adaptor Legend Module Pin 40-295-021-5/12 & 40-295-121-10/12 & 40-295-021-3/24 40-295-121-6/24 40-295-021-10/8 40-295-121-18/8 40-295-021-5/16 40-295-121-10/16 CH1 OUT No Connect No Connect No Connect No Connect...
  • Page 53 Section 3 - Connectors MBoS, Modular Breakout System Figure 3.15 - Pinouts: 95-296-001 Breakout Module for 40-296 37-Pin Female CH1 Terminal B D-Type Connector (for connection to CH2 Terminal B Unit Under Test) * CH3 Terminal B CH1 Terminal B...
  • Page 54 MBoS, Modular Breakout System Table 3.4 - Pin-out Differences for 40-296 Module Signal Definition Per Module Adaptor Legend Module Pin 40-296-021-2/12 & 40-296-121-4/12 & 40-296-021-5/8 40-296-121-9/8 40-296-021-2/16 40-296-121-4/16 No Connect No Connect No Connect No Connect No Connect CH1 Terminal B...
  • Page 55 Section 3 - Connectors MBoS, Modular Breakout System Figure 3.16 - Pinouts: 95-525A-001 Breakout Module for 40-525A 78-Pin Female D-Type Connector (for connection to Unit Under Test) LX18 LX19 LX20 LX21 LX22 LX23 LX24 LX25 LX26 LX10 LX27 LX11 LX28...
