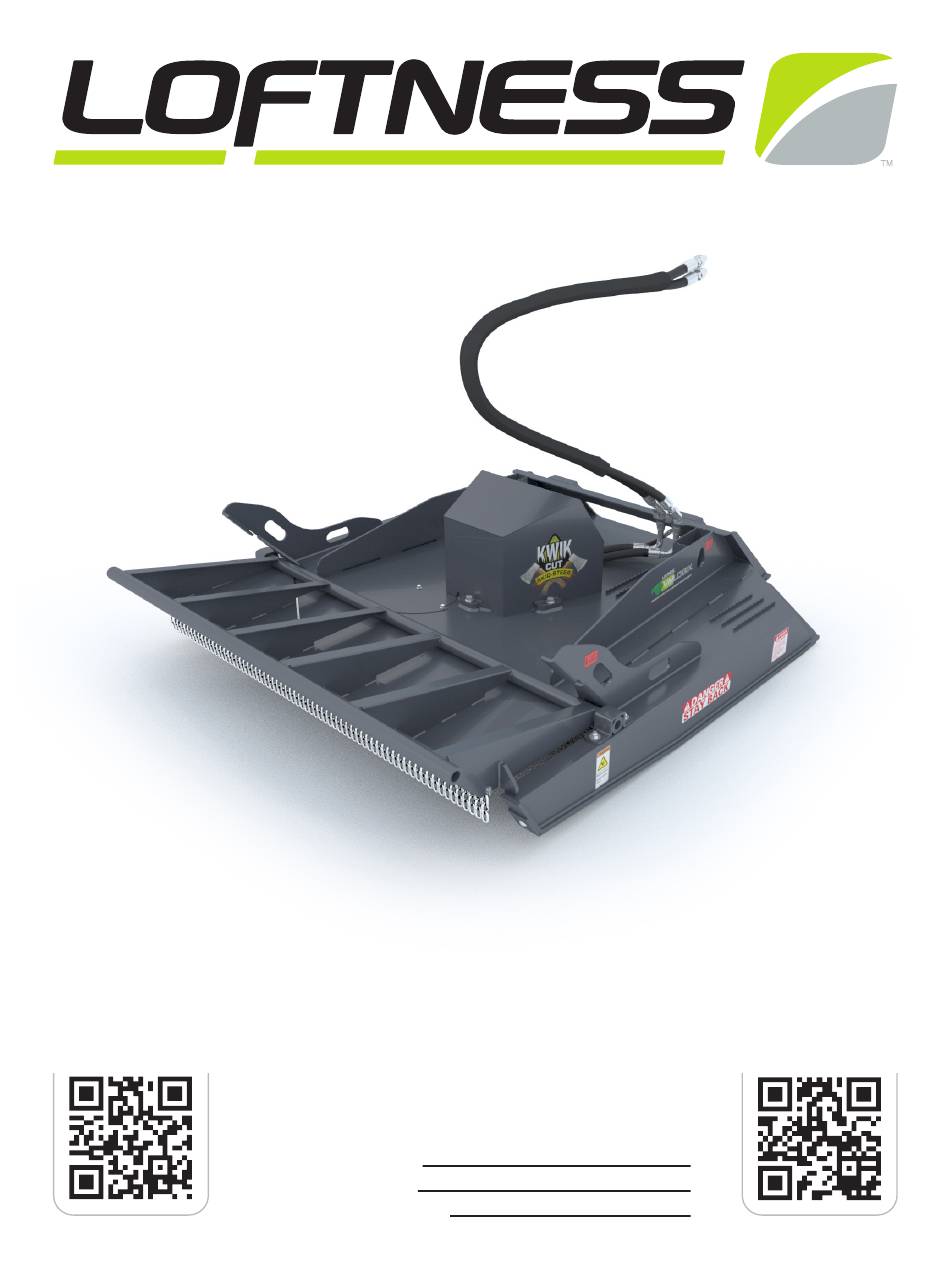

Kwik Cut
Skid Loader Brush Cutter
Owner's Manual and Parts Book
(Originating with Serial Number 112-101)
Model Number:
Serial Number:
Date of Purchase:
201480 Rev. A
07.07.23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kwik Cut and is the answer not in the manual?

Questions and answers

Summary of Contents for LOFTNESS Kwik Cut

  • Page 1 Kwik Cut Skid Loader Brush Cutter Owner’s Manual and Parts Book (Originating with Serial Number 112-101) Model Number: Serial Number: Date of Purchase: 201480 Rev. A 07.07.23...
  • Page 3 Extreme, Bad Ax Skid Steer, Timber Ax Skid Steer. All other Loftness products have a one (1) year limited warranty. If any Loftness product is used as rental or leased equipment the limited warranty period is for only 30 days from the delivery date to the original customers.
  • Page 5 ____ Assisted customer with completing / submitting Warranty Registration Form to Loftness by one of the below options. Dealer also needs to submit a copy of this completed PDI to Loftness and maintain the copy in owner’s manual for unit.
  • Page 7 ____ Assisted customer with completing / submitting Warranty Registration Form to Loftness by one of the below options. Dealer also needs to submit a copy of this completed PDI to Loftness and maintain the copy in owner’s manual for unit.

  • Page 9: Table Of Contents

    Detaching the Kwik Cut from the Skid Loader ....... . .
  • Page 10 Metric Hardware and Lock Nuts ..........46 Kwik Cut Brush Cutter OM...

  • Page 11: Ordering Code

    Ordering Code Ordering Code Kwik Cut Brush Cutter (Example) The ordering code will consist of two numbers (machine size), two letters (machine type), two numbers (machine series), and one number (motor system). An example for a brush cutter of this type would be as shown below.
  • Page 12 Kwik Cut Brush Cutter OM...

  • Page 13: Introduction

    To access a digital owner’s manual, use a smart phone to scan the QR Code (1) located below the pressure gauge. This code will link to the Kwik Cut owner’s manual on the Loftness website. Kwik Cut Brush Cutter OM...

  • Page 14: Kwik Cut Features

    18 Bolt-on Replaceable Carbide Teeth for Stump Grinding • Bearing Anti-wrap Protection • Premium Strength Steel Body & Disc • Floating Door - doubles as push bar and debris control • Universal Skid-Steer Mount • Hoses included (couplers not included) Kwik Cut Brush Cutter OM...

  • Page 15: Safety Instructions

    Safety First Be certain all machine operators are aware of the dangers indicated by safety decals applied to the machine, and be certain they follow all safety decal Safety Alert Symbol instructions. Contact Loftness for safety decal replacement. This message alert...

  • Page 16: Mandatory Shut-Down Procedure

    Kwik Cut Brush Cutter OM...

  • Page 17: Maintenance Safety

    • Do not smoke while servicing the machine. • Do not touch loader or any attachment parts which might be hot from operation. Allow such parts to cool before attempting to maintain, adjust or service. Kwik Cut Brush Cutter OM...

  • Page 18: Hydraulic Safety

    Mineral Oil, which is known to the State of California to cause cancer. For more information, go to www.p65warnings.ca.gov. A decal with this warning statement is adhered to the machine. If the decal should become worn or missing, replace immediately. Kwik Cut Brush Cutter OM...

  • Page 19: Kwik Cut Identification

    Safety Instructions Kwik Cut Identification Kwik Cut Brush Cutter OM...

  • Page 20: Safety Decal Locations

    SKIN PUNCTURE HAZARD. HYDRAULIC LINES. Protect hands and body from high pressure fluids. N23506 Part No. N23506 Part No. 203264 Part No. N20661 Part No. N68724 Part No. 200491 Part No. N28385 Part No. N68716 Kwik Cut Brush Cutter OM...
  • Page 21 Safety Instructions Safety Decal Locations (Cont’d) Part No. N28386 Part No. 4334 Part No. N29769 Part No. N23507 Part No. 208824 Kwik Cut Brush Cutter OM...
  • Page 22 Kwik Cut Brush Cutter OM...

  • Page 23: Set-Up Instructions

    (1) on the Kwik Cut mounting system for proper operation of the Kwik Cut. plate. Be careful not to damage the locking levers on the loader mounting plate.

  • Page 24: Checking Disc Rotation

    NOTE: If the disc rotates in the wrong direction, shut down the loader and verify that the quick couplers are connected properly. Re-install the couplers on the loader and test for correct disc rotation. Kwik Cut Brush Cutter OM...

  • Page 25: Operating Instructions

    Check for loose or missing parts. Check all bolts for tightness. match the hydraulic flow GPM (Gallons Per Minute) of your machine. Make sure the Kwik Cut is properly attached to the power unit. WARNING: Flying debris can gather on the power unit and needs to be cleaned off, Check all bolts, nuts and set screws for tightness.

  • Page 26: Operation

    Allow the disc to get back up to speed before mulching the next tree. Position the Kwik Cut so the stump is either to the left or right side of the drive center as shown above. In wet conditions, operate at a slower speed and...

  • Page 27: Hydraulic Hose Storage

    Disengage hydraulics. Raise the Kwik Cut high enough so that the disc can not come in contact with the ground during travel. Ensure the operator has a clear vision of the path ahead.
  • Page 28 Kwik Cut Brush Cutter OM...

  • Page 29: Maintenance

    7 and become familiar with the safety rules before performing any maintenance DANGER: Shut down power from the loader or service on the Kwik Cut. before lubricating. To ensure efficient operation, you should inspect, lubricate, and make necessary adjustments and repairs Use a #2 general purpose lithium based grease unless at regular intervals.

  • Page 30: Changing Bearing Support Gear Lube

    Use a power hoist and proper lifting equipment. Allow only trained personnel to lift the Kwik Cut. With the Kwik Cut on its side, use a 6 mm Allen wrench to remove the plug from the uppermost port (1) on the bearing support.

  • Page 31: Removing Motor Cover

    Use care when Six lifting points are located on the Kwik Cut (three on removing the cover to prevent damage to each side of the machine). The decal shown above is the hose.

  • Page 32: Disc Removal

    Kwik Cut. Use the hoist and chains (or straps) (1) to lift and overturn the Kwik Cut as shown, making sure it is stable and secure for this procedure. NOTE: The hoist/lifting device and chains or strap must be in good condition and of adequate size to lift the Kwik Cut.

  • Page 33: Motor Removal

    When disc removal is complete, return the Kwik Cut back The access plate located on the top of the Kwik Cut to the upright position before starting the motor removal frame provides access to the disc blades and teeth when procedure.

  • Page 34: Blade And Tooth Removal/Replacement

    Maintenance Blade and Tooth Removal/ From the front of the Kwik Cut, reach under and remove the blade with the spacer, making note of the orientation Replacement of the cutting edge (edge up, or edge down). The new blade must be returned in the same orientation. If needed, refer to the exploded view on page 34 for assembly.

  • Page 35: Cutting Teeth

    Using a 15/16" socket, remove the nut (1) and washer (2). When removed, the tooth on the underside of the disc will drop through. From the front of the Kwik Cut, reach under and collect the tooth. Follow this process to remove all teeth.

  • Page 36: Gpm Chart

    Maintenance GPM Chart Radial Piston Motor 5000 PSI Piston Motor Disc RPM Displacement Loftness Part number Number 150 Max Displacement 209767 1009 1035 1060 1085 1110 1136 Kwik Cut Brush Cutter OM...

  • Page 37: Troubleshooting

    Disc jammed. Remove material from disc. Quick couplers at loader are installed Check hose connections. incorrectly. Oil Leak At Hydraulic Control Valve Pinched case drain hose. Check hose. Cover. Disconnected case drain hose. Reconnect hose. Kwik Cut Brush Cutter OM...
  • Page 38 Kwik Cut Brush Cutter OM...

  • Page 39: Parts Identification

    Parts Identification PARTS IDENTIFICATION Kwik Cut Brush Cutter OM...

  • Page 40: Cutter Door; Skid Plates; Access Plate

    Parts Identification Cutter Door; Skid Plates; Access Plate Kwik Cut Brush Cutter OM...
  • Page 41 GREASEZERK,45 DEG SCW-IN 1/8NPT N36497 BOLT, 3/8" X 3/4" SER FLG 201457 PLATE, TOOTH ACCESS 201465 PLATE, SKID REPLACEMENT 4039 BOLT, CARRIAGE 1/2" X 1-1/2" N29075 NUT, LOCK 1/2" SERRATED FLANGE 201480 MANUAL, ROTARY CUTTER Kwik Cut Brush Cutter OM...

  • Page 42: Drive Motor; Motor Cover; Cutter

    Parts Identification Drive Motor; Motor Cover; Cutter For breakdown of replacement parts for item 12, SAI motor (209767), see page 38. ** For parts breakdown of item 13, Cutter Assembly (201430), see page 34. Kwik Cut Brush Cutter OM...
  • Page 43 WASHER, LOCK 5/8" 4997 WASHER, FLAT 5/8" SAE N16476 BOLT, 5/8"-11 X 1-3/4" GR 8 209767 MOTOR, 150CC SAI SAE PORTS 201430 ASSEMBLY, CUTTER N16474 WASHER, 3/4 NORDLOCK 201481 BOLT, 3/4"-10 X 3" GRADE 8 Kwik Cut Brush Cutter OM...

  • Page 44: Cutter Assembly (201430)

    Parts Identification Cutter Assembly (201430) Kwik Cut Brush Cutter OM...
  • Page 45 BLADE, DUAL EDGE 201429 WELDMENT, BLADE HOLDER 201425 PLATE, MOUNT SPACER N16510 BOLT, 3/4" X 2-3/4" FN TH GR8 201433 TOOTH, 5/8" UNF STUMP CUTTER N16473 WASHER, 5/8 NORDLOCK 4057 NUT, 5/8" FINE THREAD TOP LOCK Kwik Cut Brush Cutter OM...

  • Page 46: Hydraulics

    Parts Identification Hydraulics Kwik Cut Brush Cutter OM...
  • Page 47 ELBOW, 90 DEG -6MJIC -4MBSPP N88334 WRAP, HOSE 70 N24775 ADAPTER, BULKHEAD - 6MJIC-6MJIC 206509 HOSE, 3/8 X 23 -6FJIC -6FJIC, 3000PSI N28846 ADAPTER, -6MJIC -4MBSPP 207880 ADAPTER, -8MOR -6FJIC N157054 VALVE, RELIEF 100PSI N17022 ADAPTER, 6MJIC - 8MOR Kwik Cut Brush Cutter OM...

  • Page 48: Sai Motor (209767)

    SAI Motor (209767) QTY. PART # DESCRIPTION 206999 KIT, FS30A1/A2 MOTOR SEAL (Includes items 1, 2 and 3) NOT SOLD SEPARATELY SEAL, SHAFT NOT SOLD SEPARATELY RING, RETAINING SB70 NOT SOLD SEPARATELY RING, HIGH PRESSURE BACKUP Kwik Cut Brush Cutter OM...

  • Page 49: Seal, Sai Bearing Support Shaft (212126)

    Parts Identification Seal, SAI Bearing Support Shaft (212126) QTY. PART # DESCRIPTION 212126 SEAL, SAI BEARNG SUPPORT SHAFT Kwik Cut Brush Cutter OM...

  • Page 50: Machine Decals And Signs

    Part No. N17013 Part No. N68716 Part No. N20661 Part No. N28386 Part No. N23506 WARNING SKIN PUNCTURE HAZARD. Part No. 200491 HYDRAULIC LINES. Protect hands and body from high pressure fluids. N23506 Part No. 4334 Kwik Cut Brush Cutter OM...
  • Page 51 Machine Decals and Signs (Cont’d) Part No. N68724 Part No. N23507 Part No. 208824 Part No. 207851 CASE DRAIN PROTECTION DO NOT CAP 207851 Part No. N29769 Part No. N28012 Part No. N24823 Part No. N24822 Part No. 203264 Kwik Cut Brush Cutter OM...
  • Page 52 Parts Identification Machine Decals and Signs (Cont’d) Part No. N13721 Part No. N28576 Part No. 201542 Part No. 209449 Part No. N13517 Part No. 4138 Kwik Cut Brush Cutter OM...

  • Page 53: Appendix

    72 in. (183.9 cm) Capacity Monitor Pressure Gauge Motor Radial Piston - 150cc Mount Universal Skid Type Cutters 4 Dual-Edge Beveled Blades; 18 Carbide Cutting Teeth on Underside of Disc Skid Shoes Abrasive resistant Deflector Chains Kwik Cut Brush Cutter OM...

  • Page 54: Dimensions

    25 in. (63.5 cm) Overall Length (D) 92 in. (233.7 cm) 4 Dual-Edge Beveled Blades; Cutters 18 Carbide Cutting Teeth on Underside of Disc Weight 2,167 lbs. (982.9) kg Crated Weight 2,317 lbs. (1051.0) kg Kwik Cut Brush Cutter OM...

  • Page 55: Torque Specifications

    Appendix Torque Specifications Inches Hardware and Lock Nuts Kwik Cut Brush Cutter OM...

  • Page 56: Metric Hardware And Lock Nuts

    Appendix Torque Specifications (Cont’d) Metric Hardware and Lock Nuts Kwik Cut Brush Cutter OM...
  • Page 58 Loftness Specialized Equipment, Inc. 650 So. Main Street • PO Box 337 • Hector, MN 55342 Tel: 320.848.6266 • Fax: 320.848.6269 • Toll Free: 1.800.828.7624 Printed in USA © Loftness 2023...
