Summary of Contents for Hero Electronix Qubo QBOOK HCA04

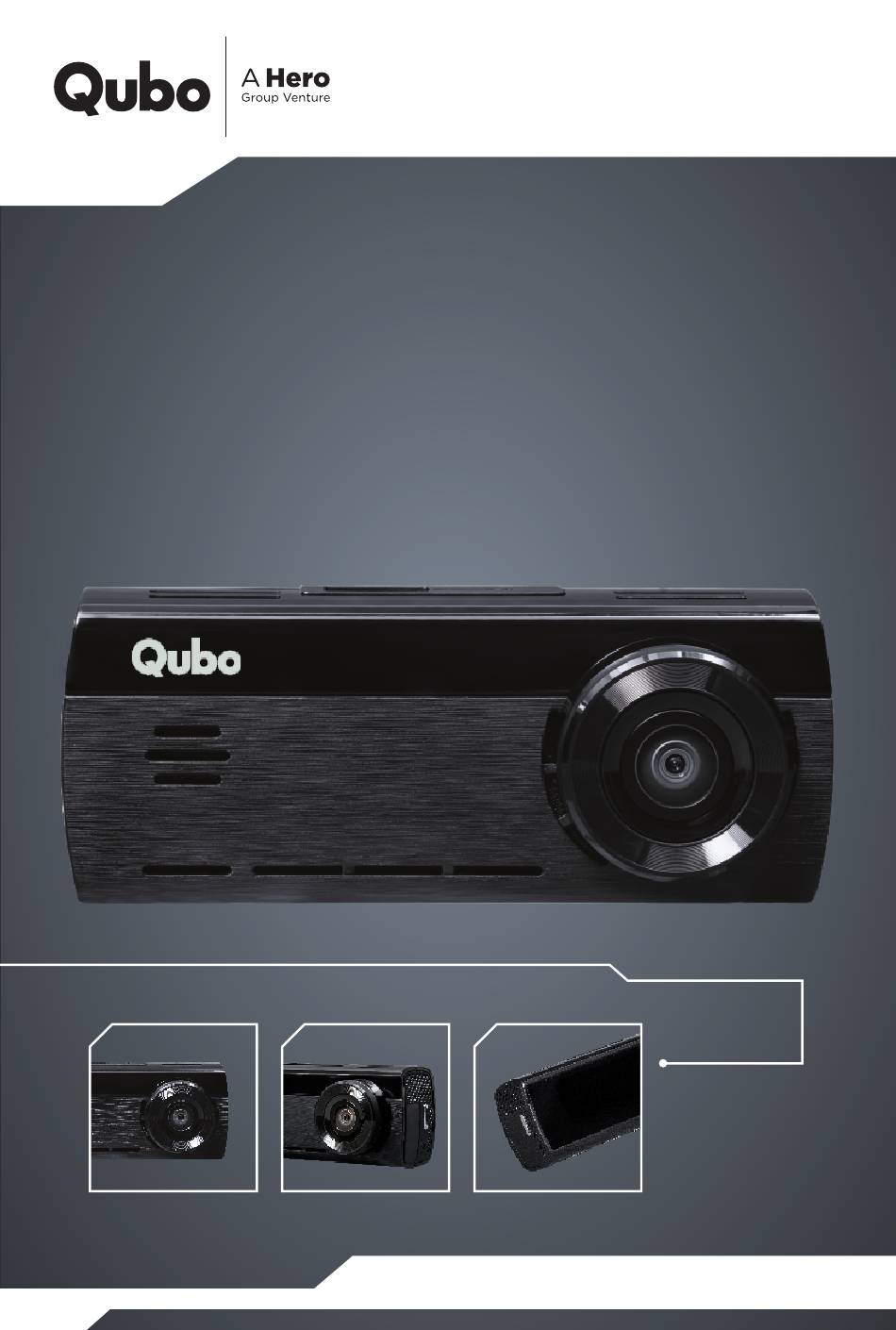

- Page 1 QBOOK Qubo 4K DashCam...
-
Page 2: Product Introduction
Product Introduction A Smart Video Camera for your car to records event happening on road in Ultra HD(4K) format 1. Function Key 2. Microphone 3. Display Screen 4. Suction holder slot 5. Rear Cam Channel Slot 6. Air Vents 7. Reset Key 8. -
Page 3: In Box Items
Product Specifications & Packaging Contents Model number HCA04 Front Cam 3840 x 2160P Rear Cam 1920 x 1080P Extended Storage MicroSD card, upto 1TB, C10, U3, V30, 4K UHDSD cards Recommended SD Cards IEEE 802.11 b/g/n 2.4GHz Wi-Fi In Box Items: 1. -
Page 4: Reset Key
Reset Key This key reboots the device. Please reboot the device if the Device hangs or functions abnormally. Power Button Functionality Function Action Display On Press Once Power Key Display Off Press Once Power Key Factory Reset Long press Power Key& Hold for 10 Sec till the LED stops Blinking Function Keys Function... - Page 5 Behavior Situation Behavior Power On Steady Red Ready for Commission Red Blink If commission not initiated Red Blink from mobile for long time Factory Reset Initiated Steady Green Factory Reset Completed Steady Red than Red Blink Format SD Card Steady Green If User not inserted SD card Red Blink Any Alert on device...
-
Page 6: Camera Feature
Camera Feature Journey Vlogging: Users while travelling through Scenic Routes can utilize Dashcam for Vlogging 2 GPS Logging: With GPS Logging user can view the Event and Trip along with Map access 3 Video Quality: Qubo Dashcam Pro 4K has UHD Video Quality for Recording Purpose and Live View Video Resolution - 3840 * 2160, 2848 * 1600 &... - Page 7 ADAS ADAS (Advanced Driver Assistant System) is a system that alarms the driver in certain critical situations. It keeps an eye on the road in case the driver seems to have lost attention. ADAS usually consists of the following functions that can be turned on and off separately. •...
- Page 8 Installation Process Front Camera Ideal mount area Tuck-in cable 1. Clean the Windshield area where the Dashcam is to be installed. 2. Remove the protective film from the device, Connect the Dashcam with suction mount provided in the box and place your device on the windshield 3.
-
Page 9: Specifications
Rear Camera Product Instructions 1. Rear Camera 2. Mount with double sided tape 3. Rear Camera Power Cable 4. Mini USB 8PIN Power Port Note: Illustrations of the product, accessories, and user interface in the user manual are for reference purposes only. The actual product and functions may vary. - Page 10 Installation Process Rear Camera 1. Paste the electrostatic sticker: Clean the rear windshield and apply electrostatic sticker on the recommended area as shown in the figure below. Step back from edge of the windshield and choose a flat and smooth installation surface. 2.
- Page 11 The installation and wiring methods for different vehicles may differ from what described in the Quick Start Guide. We recommend installation shall be conducted by a professional installer.
- Page 12 App Download Instructions Step 1. Search for QuboPro on the Google Play Store and App Store or you can Scan the below QR Code to download the App- App Link - https://bit.ly/3Pjsl2n Step 2. Install QuboPro App To Connect the 4k Dashcam with the App Open the App and Choose the 4k Dashcam.
- Page 13 App Screen Attributes Help Dashcam Pro 4K Settings Delete Compass Altitude from Mute/Unmute Sea Level Speedometer Screenshot Download Full Screen Time View Lapse Calendar Wi-Fi Connectivity On-Demand Recording Time Scrubber Trips Log Events Downloaded Images/Videos...
- Page 14 Settings Screen Attributes Option to enable/ disable audio track recordings Sensitivity of the Jolts To enable/ disable audio alerts and sound from Dashcam To enable/ To enable/ disable parking disable mode (works GPS Mode with Hardwiring Kit only) To enable/ disable and set the SD Card...
- Page 15 Recording Access Options Dashcam Pro 4K CONTINUOUS RECORDING To access all the captured recordings, please use the Timeline Bar (Marked in red). Green color marks the area which has the stored recordings. EVENT BASED The Dashcam Pro 4K records specific Events like Jolt detection, Ride start &...
