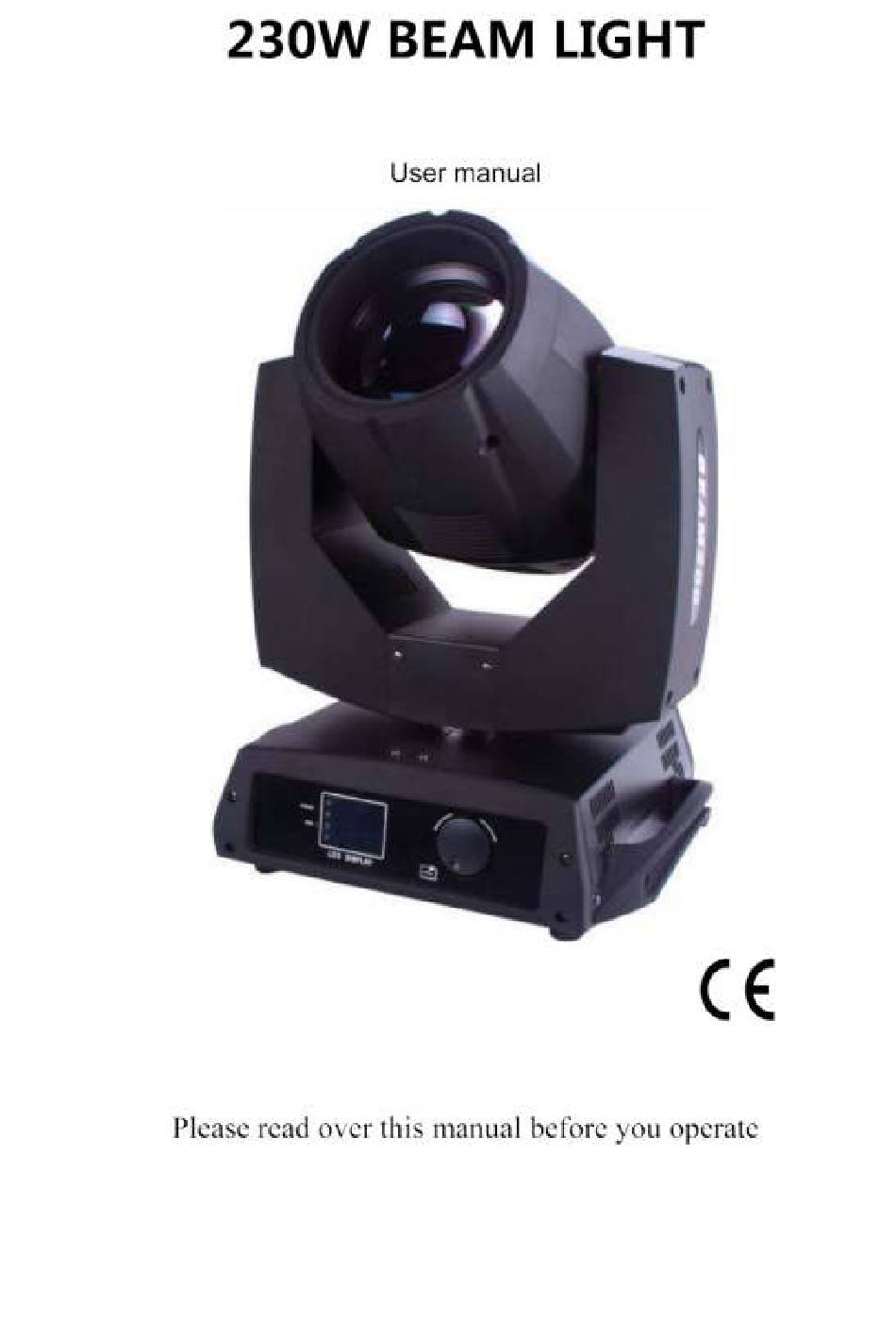

Summary of Contents for Newfeellight Beam 230
- Page 2 Beam230 User Manual Catalogue 1. Installation of computer light. 2. Installation of lamp. 3. Power supply. 4. Connection of control signal line. 5. Corrective maintenance. 6. Cleanly maintenance 7. Warning. 8. Difficulty disposal. 9. Qualification. 10.Channel Function Notice: because the policy of improve the products quality of our company. Maybe some data in the instructions will change in future.
- Page 3 Beam230 User Manual influence service life of lamp, and damage components of circuit board. After finish it, please strengthen the metallic gobo flag and heat guard of two sides of lamp firstly. Then using adhesive tape to fold covering shell, and strengthen screws of right-and-left of it.
- Page 4 Beam230 User Manual login all place of electrical machines which controlled by it. It will bring electric noise in computer interior, when modulator tube damage or burnout. Maybe it will disturb normal operation of MPU. computer light has an electronic monitoring system that can watch operation of MPU, and ensure that will start up reinstallation function when it is disturbed.
- Page 5 Beam230 User Manual 5. Corrective maintenance If lens of computer light be damaged or broken, please replace a new one, and the same to modulator tube. If light turn dark, it means service life of modulator tube is up, should be replaced in time. The old modulator tube can explode. When computer light works out of order, fuse in back panel should be checked.
- Page 6 Beam230 User Manual Problem The way to solve Computer light can’t start. Check fuse of back-panel. Though it shine, computer light don’t Check data startup address (see accept dictate of control. section 5), and check connection of communication control line (see section 4).
- Page 7 Beam230 User Manual Channels: 16 Inputs: DMX512 Pan/Tilt: 540°/270° Resolution: Pan = 2.11°, Pan Fine = 0.008°, Tilt = 0.98°, Tilt Fine =0.004° IP rating: IP20 Cooling: Forced ventilation with axial fans. 10. Channels Function Channel DMX value Description 0-255 Pan fine 0-255 Tilt...
-
Page 8: Gobo Rotation
Beam230 User Manual Gobo White Gobo1 8-14 Gobo2 15-21 Gobo3 22-28 Gobo4 29-35 Gobo5 36-42 Gobo6 43-49 Gobo7 Gobo8 50-56 Gobo9 57-63 Gobo10 64-70 Gobo11 71-77 Gobo12 78-84 85-91 Gobo13 92-98 Gobo14 99-105 Gobo15 106-112 Gobo16 113-119 Gobo17 Gobo18 120-126 127-190 (Inverted water) Gobo rotation:...
