Summary of Contents for UNIARCH SW-2106-P

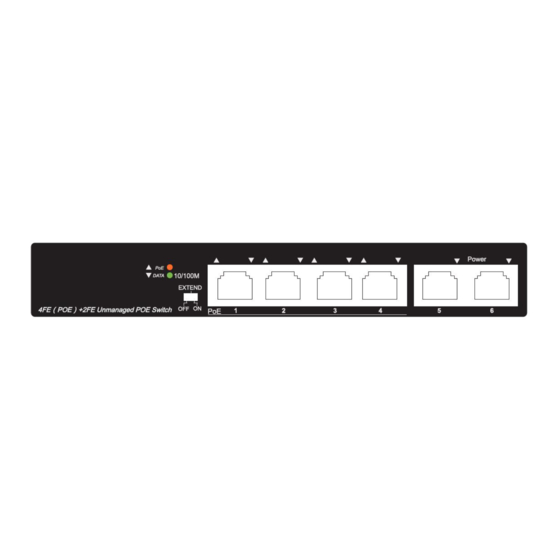

- Page 1 PoE Networking Solution User Guide 4*10/100Mbps+2FE PoE Switch...
- Page 2 Package Contents Check the following contents of your package: PoE Switch ×1 User Guide ×1 Power Cord ×1 Accessories(Feet*4) If any part is lost and damaged, please contact your local agent immediately. FCC statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 3 Introduction The switch provides the seamless network connection. The PoE ports (Port1~4) can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PD). The electrical power is transmitted along with date in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as AP, IP Phones, etc.
- Page 4 LED indicator Color Function Off: No Power supply. Orange Light: Indicates the switch has power. Off: No device is connected to the corresponding port. Light: Indicates the link through that port is successfully DATA Green established at 10/100Mbps. Blink: Indicates that the switch is actively sending or receiving data over that port.
- Page 5 Desktop Installation Install the switch on a desktop, please attach these cushioning rubber feet provided on the bottom at each corner of the switch in case of the external vibration. Allow adequate space for ventilation between the device and the objects around it. Wall-mounted installation In the first two fixed screw on the wall as shown in the figure below Aim at the two fixed hole switches, and the machine smoothly on the screw...
- Page 6 Specifications Model 4*10/100Mbps+2FE PoE switch Standard IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af, IEEE802.3at 10BASE-T: UTP category 3, 4, 5 cable (≤100m) Network Media(Cable) 100BASE-Tx: UTP category 5 cable (≤100m) MAC Address Table 2K, Auto-learning, Auto-aging Transfer mode Store-and-Forward 10BASE-T: 14881pps/Port Frame Forward Rate 100BASE-Tx: 148810pps/Port Switching Capacity 1.2G...
