Summary of Contents for Philips 243V5LHAB5/00

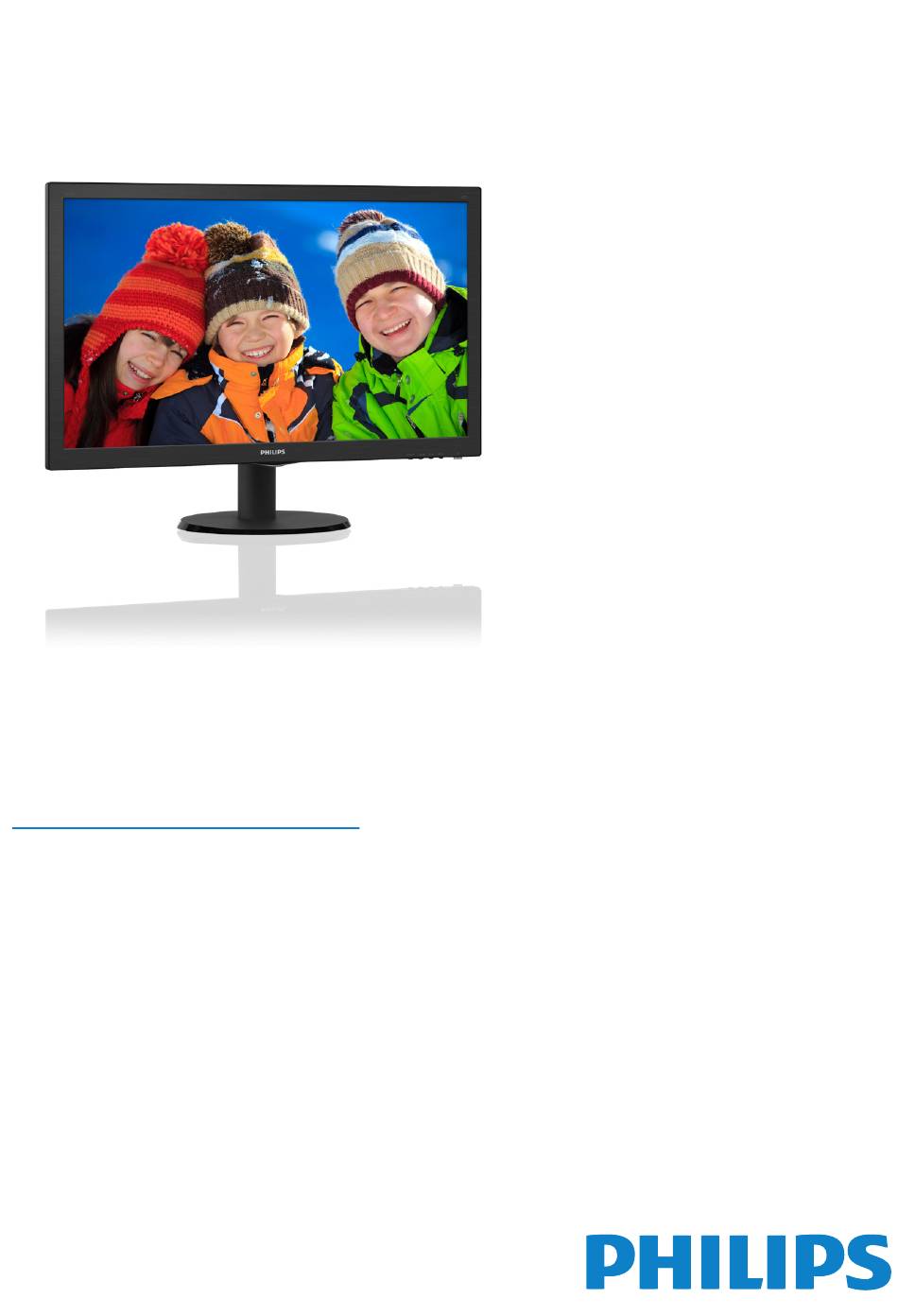

  • Page 1 243V5 www.philips.com/welcome EN User manual Customer care and warranty Troubleshooting & FAQs...
  • Page 2: Table Of Contents

    4. Technical Specifications ......10 4.1 Resolution & Preset Modes....12 5. Power Management ......13 6. Customer care and warrant .....14 6.1 Philips’ Flat Panel Monitors Pixel Defect Policy ..........14 6.2 Customer Care & Warranty ....16 7. Troubleshooting & FAQs ....17 7.1 Troubleshooting ...........17...
  • Page 3: Important

    1. Important • Please use approved power cord provided 1. Important by Philips all the time. If your power cord is missing, please contact with your local This electronic user’s guide is intended for service center. (Please refer to Customer anyone who uses the Philips monitor.
  • Page 4: Notational Descriptions

    1. Important • Temperature: 0-40°C 32-104°F 1.2 Notational Descriptions • Humidity: 20-80% RH The following subsections describe notational Important information for Burn-in/Ghost conventions used in this document. image Notes, Cautions and Warnings • Always activate a moving screen saver Throughout this guide, blocks of text may be program when you leave your monitor accompanied by an icon and printed in bold or unattended.
  • Page 5: Disposal Of Product And Packing

    From the planning, design and production waste. You are responsible for disposal of stages, Philips emphasizes the important of this equipment through a designated waste making products that can easily be recycled. At electrical and electronic equipment collection.
  • Page 6: Setting Up The Monitor

    Contents: User’s Manual Monitor drivers 保留备用 SmartControl software www.philips.com/welcome Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. * Audio cable * HDMI 3. Hold the monitor base stand with both...
  • Page 7 2. Setting up the monitor Connecting to your PC AC power input HDMI input 243V5LSB5/243V5LSW5 DVI-D input VGA input Audio input Earphone jack Kensington anti-theft lock Connect to PC 1. Connect the power cord to the back of the monitor firmly. 2.
  • Page 8: Operating The Monitor

    Description of the On Screen Display What is On-Screen Display (OSD)? On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window.
  • Page 9 2. Setting up the monitor In the OSD shown above, you can press The OSD Menu buttons at the front bezel of the monitor Below is an overall view of the structure of to move the cursor, and press OK button to the On-Screen Display.
  • Page 10: Remove Base Stand And Base

    2. Setting up the monitor Resolution notification 2.3 Remove Base Stand and Base This monitor is designed for optimal Remove the Base Stand performance at its native resolution, 1920 × 1080 @ 60 Hz. When the monitor is powered Before you start disassembling the monitor on at a different resolution, an alert is displayed base, please follow the instructions below to on screen: Use 1920 ×...
  • Page 11 2. Setting up the monitor Note This monitor accepts a 100mm × 100mm mounting interface. 100mm 100mm Caution For use only with UL Listed Wall Mount Bracket with minimum weight/load 3.5Kg...
  • Page 12: Image Optimization

    3. Image Optimization 3. Image Optimization 3.1 SmartContrast What is it? A unique technology that dynamically analyzes displayed content and automatically optimizes an LCD monitor's contrast ratio for maximum visual clarity and viewing enjoyment, stepping up backlighting for clearer, crisper and brighter images or dimming backlighting for clear display of images on dark backgrounds.
  • Page 13: Technical Specifications

    4. Technical Specifications 4. Technical Specifications Picture/Display Monitor Panel Type TN-LCD Backlight W-LED system Panel Size 23.6" W (59.9 cm) Aspect Ratio 16:9 Pixel Pitch 0.272 × 0.272 mm SmartContrast 10,000,000:1 Response Time (typ.) SmartResponse 1ms(GtG) for 243V5LHSB5/243V5LHAB5 Optimum Resolution 1920 ×...
  • Page 14 CE Mark, FCC Class B, TCO Certified, ETL, ISO9241- 307, Regulatory Approvals BSMI, PSB, RCM, UKRAINIAN, EPA,KC,KCC,CECP, CCC Cabinet Color Black/White Finish Texture Note 1. EPEAT Gold or Silver is valid only where Philips registers the product. Please visit www.epeat.net...
  • Page 15: Resolution & Preset Modes

    4.1 Resolution & Preset Modes 2. This data is subject to change without Maximum Resolution notice. Go to www.philips.com/support to 1920 × 1080 @ 60 Hz (analog input) download the latest version of leaflet. 1920 × 1080 @ 60 Hz (digital input) 3.
  • Page 16: Power Management

    5. Power Management 5. Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically.
  • Page 17: Customer Care And Warrant

    No manufacturer can guarantee the types of bright dot defects. that all panels will be free from pixel defects, but Philips guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This notice explains the different types of pixel defects and defines acceptable defect levels for each type.
  • Page 18 In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT Monitor panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables.
  • Page 19: Customer Care & Warranty

    Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below.
  • Page 20: Troubleshooting & Faqs

    • Disconnect the monitor from mains power after you have tried these solutions, contact source immediately for safety Philips customer service representative. • Contact with Philips customer service representative immediately. Common Problems Imaging Problems No Picture (Power LED not lit) Image is not centered • Make sure the power cord is plugged into...
  • Page 21: General Faqs

    × 1080 @ 60 Hz. unchanging static content. • Shut down your computer, disconnect your • Severe” burn-in” or “after-image” or “ghost old monitor and reconnect your Philips image” symptoms will not disappear and LCD monitor. cannot be repaired. The damage mentioned • Turn on your monitor and then turn on...
  • Page 22 When handling the monitor, PC, workstation or Mac? make sure that there is no pressure or Ans.: Yes. All Philips LCD monitors are fully force applied to the panel surface side. compatible with standard PCs, Macs This may affect your warranty conditions.
  • Page 23 7. Troubleshooting & FAQs period of time after the power has been switched off. Always activate a moving screen saver program when you leave your monitor unattended. Always activate a periodic screen refresh application if your LCD monitor will display unchanging static content.
  • Page 24 © 2016 Koninklijke Philips N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. Specifications are subject to change without notice. Version: M5243V2T...
