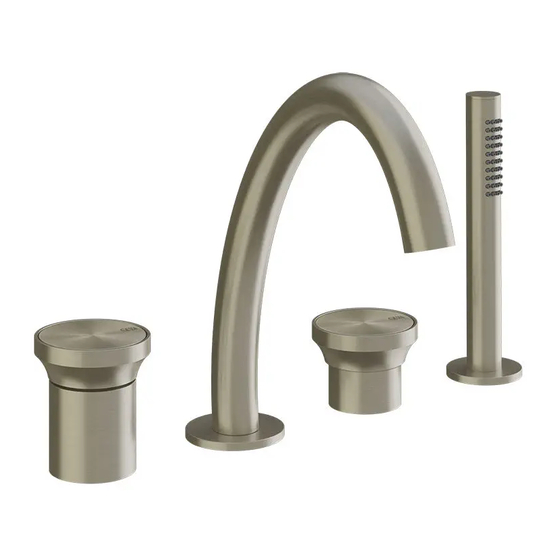

- Page 1 BATH MIXING PROGRAM PROGRAMME DU MITIGEUR POUR LA SALLE DE BAIN PROGRAMA MEZCLADORES BAÑO Art. 66037 GESSI SpA Parco Gessi - 13037 Serravalle Sesia (Vercelli) ITALY Tel. +39 0163 454111 Fax +39 0163 459273 www.gessi.com - gessi@gessi.it...
-
Page 2: Caution - Warning
MUST NEVER BE EXCEEDED, as it may damage and/or cause ruptures and/or leakages and/or even break the product, and present a potential hazard and danger to safety, health and/or property. Following are the technical data with respect to the installation of Gessi plumbing products. ► W orkingpressureshouldnotbelowerthan0,5bar(7,25psi)andnotbehigherthan5bar(72Psi).In case of higher working pressure use a pressure reducer valve. - Page 3 Ci-dessous nous indiquons les données techniques concernant l’installation des produits sanitaires Gessi. ► L apressiondeservicenedoitpasêtreinférieureà0,5bar(7,25psi)etsupérieureà5bar(72Psi).En cas de pressions de service plus hautes utiliser une soupape de réduction de la pression.
- Page 4 1 - ¡CUIDADO!! LES ROGAMOS QUE TENGAN EN CUENTA QUE NUNCA la presión y/o la temperatura máximaaconsejadaNOTIENEQUESERSUPERADA,yaquepodríadañary/ocausarrupturasy/o pérdidasy/oaveríasdelproductoy,porlotanto,representarunriesgoyunpeligropotencialpara la seguridad, la saludad y/o la propiedad. A continuación Les proporcionamos los datos técnicos relativosalainstalacióndelosproductosdegriferíaGessi. ► L apresióndeejercicionotienequeserinferiora0,5bar(7,25psi)ysuperiora5bar(72Psi).Encaso depresionesdeejerciciomayores,utilicenunaválvuladereduccióndelapresión. ►Presiónmáximadeensayodurantelainstalación:8bar(116psi). ► E vitengrandesdiferenciasdepresiónentrelaalimentacióndelaguafríayaquelladelaguacaliente. Lasdiferenciasdepresión,elaguaconunalatocontenidomineralylassustanciasjabonosaspueden...
- Page 5 PRE-INSTALLATION INFORMATION - PRÉALABLES - PRELIMINARES ART. 66037...
-
Page 6: Technical Data
PRE-INSTALLATION INFORMATION - PRÉALABLES - PRELIMINARES Before installation and setting to work Attention! The feeding pipes have to be rinsed thoroughly before the installation of the mixer, so that no shavings, welding or hemp residual or other dirt can be found in the pipes. Foreign bodies can enter the mixer through the rinsed pipes or the general water plant and could damage the washers/ring washers. - Page 7 PRE-INSTALLATION INFORMATION - PRÉALABLES - PRELIMINARES...
- Page 8 PRE-INSTALLATION INFORMATION - PRÉALABLES - PRELIMINARES Package content: L - Flexible de connexion pour douchette A - Opening control M - Poignée du déviateur B - Diverter N - Bouchon de fermeture C - Hand shower support O - Douille pour déviateur D - Fastening set for shower support P-RéductionG3/4”-G1/2”...
- Page 9 PRE-INSTALLATION INFORMATION - PRÉALABLES - PRELIMINARES 1/8” 5/8” 12/16” 15/16” [2.5 mm] [16 mm] [19 mm] [24 mm] 1-2/16” 1-3/16” 1-4/16” [29 mm] [30 mm] [31 mm] - Installation tools - Outils nécessaires pour l’installation - Herramienta necesaria para la instalación...
- Page 10 PRE-INSTALLATION INFORMATION - PRÉALABLES - PRELIMINARES 15/16” [24 mm]...
-
Page 11: Installation - Installation - Instalación
INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 1 Fig. 2 1-4/16” 1/8” 1-4/16” [31 mm] [2.5 mm] [31 mm] 1-4/16” [31 mm]... - Page 12 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 3 1-3/16” [30 mm] 1-2/16” [29 mm] Fig. 4 15/16” [24 mm]...
- Page 13 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 5 12/16” [19 mm] Fig. 6 Fig. 7 Filter washer Jointe filtre Junta-filtro...
- Page 14 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 8 Fig. 9 1/8” [2.5 mm] 15/16” [24 mm] 15/16” [24 mm] Fig. 10 Blue 5/8” [16 mm] Cold...
- Page 15 WORKING - FONCTIONNEMENT - FUNCIONAMIENTO Fig. 11 Fig. 12 COLD Fig. 13 Fig. 14 PUSH Fig. 15...
-
Page 16: Maintenance
MAINTENANCE - ENTRETIEN - MANUTENCIÓN MAINTENANCE • Should it be necessary to replace one or more components, contact an authorized retailerorvisitWWW.GESSI.COM • Product maintenance should be made only by qualified staff ENTRETIEN • S’il est nécessaire de remplacer un ou plusieurs composants, contacter un centre autoriséouvisiterlesiteWWW.GESSI.COM... - Page 17 MAINTENANCE - ENTRETIEN - MANUTENCIÓN CARTRIDGE REPLACEMENT - SUBSTITUTION DE LA CARTOUCHE - SUSTITUCIÓN DEL CARTUCHO Fig. 1 Fig. 2 1/8” [2.5 mm] 1/8” [3 mm] Fig. 3 Fig. 4 1-3/16” [30 mm]...
- Page 18 MAINTENANCE - ENTRETIEN - MANUTENCIÓN AERATOR CLEANING / REPLACING - NETTOYAGE / SUBSTITUTION DE L’AERATEUR - LIMPIEZA / SUSTITUCIÓN DEL AIREADOR Fig. 1 Fig. 2 Supplied Fourni Incluido en el suministro...
- Page 19 MAINTENANCE - ENTRETIEN - MANUTENCIÓN DIVERTER REPLACEMENT - REMPLACEMENT DU DEVIATEUR - SUSTITUCIÓN DEL DESVIADOR Fig. 1 Fig. 2 1/8” [2.5 mm] Fig. 3 11/16” [18 mm]...
- Page 20 MAINTENANCE - ENTRETIEN - MANUTENCIÓN REPLACEMENT OF THE HANDSHOWER FLEXIBLE - REMPLACEMENT DU FLEXIBLE DE LA DOUCHETTE - SUSTITUCIÓN DEL FLEXIBLE DE LA DUCHA Fig. 1 Fig. 2...
