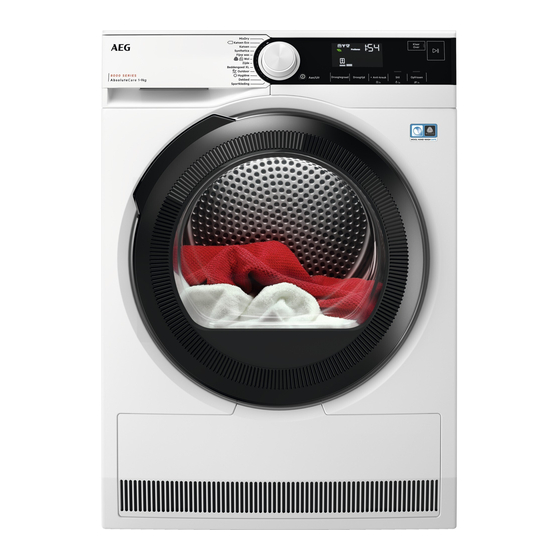

- Page 1 TR859P4B User Manual Tumble Dryer USER MANUAL...
-
Page 2: Table Of Contents
15. ENVIRONMENTAL CONCERNS..............31 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it. -
Page 3: Safety Information
ENGLISH SAFETY INFORMATION Before beginning the installation and use of this appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. - Page 4 Keep children and pets away from the appliance when • the door is open. If the appliance has a child safety device, it should be • activated. Children shall not carry out cleaning and user • maintenance of the appliance without supervision.
- Page 5 ENGLISH Connect the mains plug to the mains socket only at • the end of the installation process. Make sure that the mains plug is accessible after installation. Ensure good air ventilation in the room where the • appliance is installed to avoid the backflow of unwanted gases into the room from appliances burning gas or other fuels, including open fires.
-
Page 6: Safety Instructions
Fabric softeners, or similar products, should only be • used as specified by the product manufacturer’s instructions. Remove all objects from items that could be a source • of fire ignition such as lighters or matches. WARNING: Never stop a tumble dryer before the end •... - Page 7 ENGLISH 2.3 Use Warning: Risk of fire / Flammable WARNING! materials. The appliance contains Risk of injury, electric shock, flammable gas, propane (R290), a gas fire, burns or damage to the with a high level of environmental appliance. compatibility. Keep fire and ignition sources away from the appliance.
-
Page 8: Product Description
Warning: Risk of fire / Risk of • Remove the door catch to prevent material damage and damage to the children or pets from becoming appliance. trapped in the drum. -
Page 9: Control Panel
ENGLISH The rating plate reports: A. model name Mod. xxxxxxxxx Prod.No. 910000000 00 B. product number 000V ~ 00Hz 0000 W C. electrical ratings 00000000 D. serial number A B C 4. CONTROL PANEL Programmes Options Auto Off function Programme dial Aan/Uit button with Display Start/Pauze button... -
Page 10: Programma's
Symbol on the display Symbol description cycle time indication maximum load finish in selection (up to 24h) + Antikreuk option on buzzer off child lock on laundry dryness: iron dry, cupboard dry, extra dry Droogtijd option on drain the water container... - Page 11 ENGLISH Programma's Load Properties / Fabric mark Cotton fabrics programme designed 9,0 kg for maximum energy saving. Katoen Eco White and coloured cotton fabrics Katoen 9,0 kg programme. Default setting is for ready to store dryness level. Blended garments containing mostly Synthetica 4,0 kg synthetic fibres like polyester, polya‐...
- Page 12 Programma's Load Properties / Fabric mark Maintains the functionality of outdoor fabrics made of technical textile and restores water repellency on water‐ 2,0 kg Outdoor proof jackets and shell jackets with removable linings (suitable for drying in tumble dryer).
- Page 13 ENGLISH Options Droogte‐ + Anti‐ Droogtijd Stil Opfrissen Programma's graad kreuk Fijne was Zijde Beddengoed XL Outdoor Hygiëne Dekbed Sportkleding 1) Aside from the programme, you can set one or more options at the same time. 2) Set by default 3) See chapter OPTIONS: Droogtijd on Wol programme 5.2 Consumption data Stated values are obtained in laboratory conditions with relevant stand‐...
-
Page 14: Options
Energy consump‐ Program Spun at / residual humidity Drying time tion Katoen Eco 4,5 kg 1400 rpm / 50% 107 min 0,82 kWh kastdroog 1000 rpm / 60% 130 min 0,98 kWh Synthetica 4,0 kg 1200 rpm / 40%... -
Page 15: Before First Use
ENGLISH 6.7 Klaar Over appliance operates slowly with longer cycle time. This option allows choosing 6.5 Opfrissen the time at which a programme should To refresh clothes that were in storage. terminate. Once activated Maximal load cannot exceed 1 kg. the machine waits for the right moment to begin the 6.6 Zoemer... - Page 16 After product unpacking you can feel an Working fans. unusual smell. This is normal for brand new products. Appliance is built of several different types of material which all together can generate unusual smell. Over usage time, after few drying cycles unusual smell gradually disappears.
-
Page 17: Daily Use
ENGLISH 8. DAILY USE 8.1 Preparing the laundry • Always set the programme suitable for the type of laundry. Very often the clothes after • Do not put light and dark colours washing cycle are kneaded together. and tangled altogether. •... - Page 18 8.3 Turning on the appliance Real drying time will depend on type of the load (quantity and composition), the room temperature and the humidity of your laundry after spin drying phase. 8.6 Options Together with the programme you can set 1 or more options.
- Page 19 ENGLISH 3. Touch and hold down + Antikreuk maximum load amount for the button by around 3 seconds. selected programme. The symbol appears on the display. In case of drum overload, 4. To deactivate the child lock, touch the maximum declared load the above button again until the indicator comes on again symbol disappears.
-
Page 20: Hints And Tips
3. Remove the laundry. Touch and hold down Stil button by 4. Close the appliance door. around 3 seconds. Possible causes of unsatisfactory drying The light inside the drum is on. results: 8.13 Possible causes of • Inadequate default dryness level... -
Page 21: Care And Cleaning
ENGLISH 9.3 Deactivating the tank 3. Touch and hold down Stil and Opfrissen buttons at the same time. indicator One of 2 configurations is possible: The water container indicator is activated • the watertank indicator: is on if by default. It illuminates at the end of the the symbol appears - the drying cycle or during the cycle if the... - Page 22 10.3 Cleaning the condenser condensator flashes on If the symbol the display, inspect the condenser and its compartment. If it is dirty, clean it. Do the check not less than once a 6 months. WARNING! Do not touch the metal surface with bare hands.
-
Page 23: Troubleshooting
ENGLISH 4. Lower the condenser lid. Use a standard neutral soap detergent to clean the inner surface of the drum and drum lifters. Dry the cleaned surfaces with a soft cloth. CAUTION! Do not use abrasive materials or steel wool to clean the drum. - Page 24 Error code Possible cause Remedy Appliance motor overloaded. The programme was not comple‐ Too much laundry or entrap in the ted. Remove the laundry from the drum. drum, set the programme and re‐ start the cycle. Internal fail. No communication be‐...
- Page 25 ENGLISH Problem Possible cause Remedy Incorrect program selection. Select a suitable program. The filter is clogged. Clean the filter. Droogtegraad option was set to Change Droogtegraad option to a higher level. strijkdroog . The load was too large. Do not exceed the maximum load size.
-
Page 26: Technical Data
Problem Possible cause Remedy The load size is small. Select a time program. The time value must be related to the load. To dry one item or a small amount of laundry we recommend short The drying cycle drying times. - Page 27 ENGLISH Voltage 230 V Frequency 50 Hz Sound power level 66 dB Total power 700 W Energy efficiency class Energy consumption on the standard cotton 1,98 kWh programme with the full load. Energy consumption on the standard cotton 0,98 kWh programme with the partial load.
-
Page 28: Quick Guide
13. QUICK GUIDE 13.1 Daily use 1. Push the Aan/Uit button to turn on 4. Touch the Start/Pauze button. the appliance. 5. The appliance starts. 2. Use the programme dial to set the programme. 3. To activate or deactivate an option touch the relevant button or 2 buttons combination. - Page 29 ENGLISH 13.3 Programma's Programma's Load Properties / Fabric mark Designed for routine drying of what you wash without MixDry 5,0 kg sorting. Dries evenly clothes made of cotton, cotton- synthetic blends and synthetic. Cotton fabrics programme designed for maximum en‐ 9,0 kg Katoen Eco ergy saving.
-
Page 30: Product Information Sheet In Reference To E.u. Regulation 1369/2017
14. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U. REGULATION 1369/2017 Product Information Sheet Trade Mark Model TR859P4B PNC916099297 Rated capacity in kg Air vented or condenser tumble dryer Condenser Energy efficiency class Energy consumption in kWh per year, based on 160 drying cy‐... -
Page 31: Environmental Concerns
ENGLISH Average condensation efficiency of the standard cotton pro‐ gramme at partial load as a percentage Weighted condensation efficiency for the 'standard cotton pro‐ gramme at full and partial load' Sound power level in dB Built in appliance Y/N The information given in the chart above is compliant with the EU Commission regulation 392/2012 implementing directive 2009/125/EC. - Page 32 www.aeg.com/shop...
