Summary of Contents for XTM XTM477PK

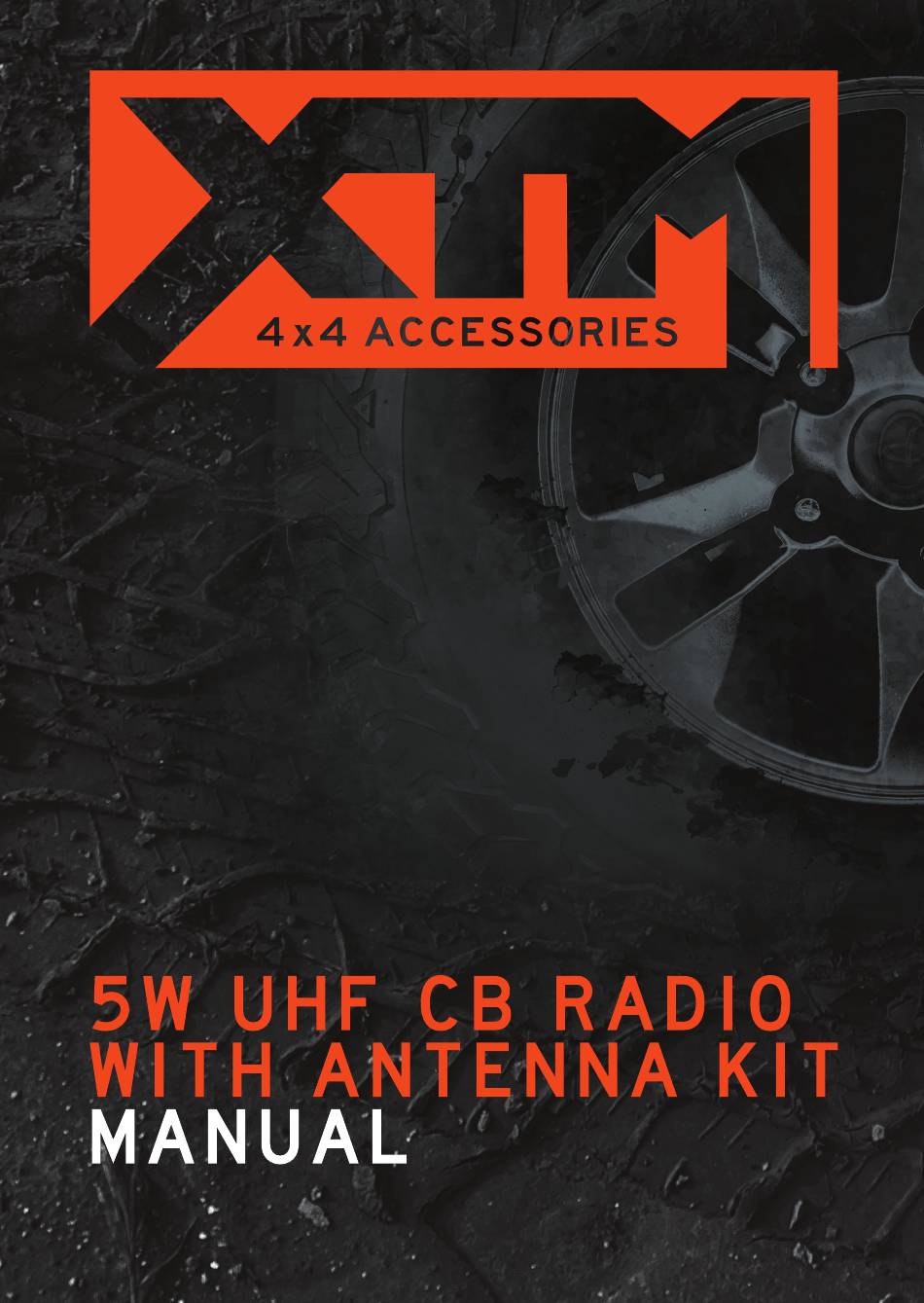

- Page 1 PLU:667041...
- Page 2 INTRODUCTION WELCOME Thank you for purchasing the XTM477PK 5 Watt UHF CB Radio. Please ensure that you have read the product manual and instructions in full, prior to installation and use. Failure to do so may result in product failure/damage or incorrect operation and therefore impact the product performance.
-
Page 3: Table Of Contents
CONTENTS SAFETY INFORMATION AND WARNINGS ......PAGE: 4 RADIO CONTROLS ..............PAGE: 6 LCD DISPLAY & BATTERY INFORMATION ......PAGE: 7 RADIO OPERATION - Power ON/OFF ...........PAGE: 8 - Volume control ............ PAGE: 8 - Channel selection ..........PAGE: 8 - Mute out ..............PAGE: 8 - CALL button ............PAGE: 8 - INST button ............PAGE: 8 - S button ...............PAGE: 8... -
Page 4: Safety Information And Warnings
SAFETY INFORMATION AND WARNINGS INFORMATION ON SAFE OPERATION Please read this information before installing or using your UHF radio. The operation of your UHF radio in Australia is subject to conditions in the following Licence: In Australia the ACMA Radio communications (Citizen Band Radio Stations) and in New Zealand by MED the General User Radio Licence for Citizen Band Radio. - Page 5 SAFETY INFORMATION AND WARNINGS ELECTROMAGNETIC INTERFERENCE/COMPATIBILITY Nearly every electronic device is susceptible to electromagnetic interference (EMI). To avoid the possibility of electromagnetic interference and/or compatibility conflicts, turn off the radio in any location where posted notices instruct you to do so such as health care facilities.
-
Page 6: Radio Controls
RADIO CONTROLS RADIO LAYOUT RADIO LAYOUT FIG. 1 Green Receive LCD Display Red Transmit Light Light Power ON/OFF RB SC Volume Control Fixed Memory/ Scan Channel Channel Microphone cord Function DOWN (Non removable) Selcall Button Instant Channel Button Push To Talk Button Microphone... -
Page 7: Lcd Display & Battery Information
LCD DISPLAY AND INFORMATION LCD DISPLAY Button Beep Channel Number 01-80 RB SC Transmit & Receive Roger Beep Scan CTCSS/DCS Signal Meter Code CAUTION When installing your radio in your vehicle, check that during installation you do not damage any wiring or vehicle components that may be hidden around the mounting position. -
Page 8: Radio Operation
RADIO OPERATION POWER ON/OFF Turn Volume Control CLOCKWISE to switch the radio ON (REFER TO PAGE 6 FIG. 1) VOLUME CONTROL Rotate Volume control clockwise to increase the volume. (REFER TO PAGE 6 FIG. 1). Volume levels 1-15. CHANNEL SELECTION Press the Channel Up and DOWN buttons to scroll through to desired channel. -
Page 9: F Button
RADIO OPERATION F Button (On Radio Fascia) Short press of F button places the radio Into Menu / Program mode Long Press (2 Seconds) takes the radio Out of Menu / Program mode When radio is NOT in Menu / Program mode a LONG press of F button turns SQUELCH LONG press of F button again turns SQUELCH ON ▲... -
Page 10: Menu Features
MENU FEATURES TO ENTER THE MENU SHORT press on the F button once. This allows you to enter the menu and change settings as per your requirements. Pressing the F button again will step you through the Menu options Some settings are [GLOBAL SETTINGS] affecting ALL Channels when changed Some settings are [PER CHANNEL SETTINGS] affecting only the channel they are set on. - Page 11 MENU FEATURES SCN Scan (GLOBAL SETTING) SHORT press on the F button four times This turns the Scan feature ON or OFF Options are oS (Scan ON) or GS (Scan OFF) When Scan option is turned ON – Short pressing S button on the faceplate will make the radio scan through all 80 channels until it hears a channel that has traffic on it.
- Page 12 BEP Button beeps (GLOBAL SETTING) SHORT press on the F button eight times This turns ON or OFF the beeps that are heard when you press the buttons on the front panel. Use the ▲ & ▼ Arrow buttons on the faceplate to select oF (BEP OFF) or on (BEP ON) DEFAULT BEP Setting is ON To EXIT Menu at any time (Whilst in menu mode) Press F button for 2 seconds...
- Page 13 The use of duplex mode will extend the transmission range in areas where a repeater station is present. Your XTM477PK is simplex “one way at a time”. While you are speaking, you can not receive a transmission.
- Page 14 DUPLEX INFORMATION DUPLEX RECEIVE/TRANSMIT CHANNEL GUIDE The following table displays the receive and transmit channels when using repeater stations: *Channel 5/35 is emergency channel only VISUAL REPRESENTATION OF DUPLEX REPEATER CHANNEL 2 / 32 OBSTRUCTION (HILL / MOUNTAIN) VEHICLE 1 VEHICLE 2 RADIO IN DUPLEX MODE ON CHANNEL 2 RADIO IN DUPLEX MODE ON CHANNEL 2...
- Page 15 UHF CB CHANNEL GUIDELINES RADIO COMMUNICATIONS (CITIZEN BAND RADIO STATIONS) CLASS Licence 2002 NOTE: The operation of your UHF radio in Australia and New Zealand is subject to conditions in the following Licences: In Australia, the ACMA Radio Communications (Citizen Band Radio Stations) and in New Zealand by MED the General User Radio Licence for Citizen Band Radio.
- Page 16 UHF CHANNELS AND FREQUENCIES UHF CHANNEL FREQUENCY TABLE Reserved Data Only Reserved Data Only Reserved...
- Page 17 UHF CHANNELS AND FREQUENCIES (continued) CTCSS TONE TABLE...
- Page 18 UHF CHANNELS AND FREQUENCIES (continued) DCS CODE TABLE...
- Page 19 UHF CHANNELS AND FREQUENCIES (continued) DCS CODE TABLE (continued)
- Page 20 WARRANTY This product is guaranteed against defects for a period of 24 months from date of purchase. This warranty is provided by SRGS Pty Ltd ABN: 23 113 230 050 of 6 Coulthards Avenue, Strathpine, Queensland 4500, Australia. Ph (07) 3482 7500. BCF will offer a repair, replacement product or store credit if the product is assessed as being defective during the warranty period.
