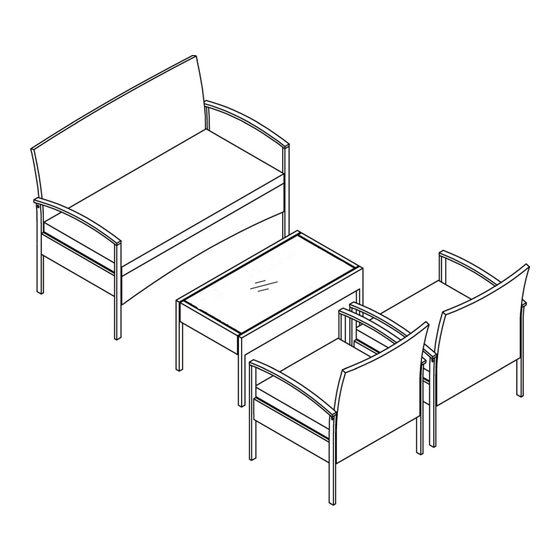

- Page 1 4-Piece Black Wicker Conversation Set Ensemble de Meubles de Patio en Rotin 4PCS HW68938 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Before You Start
Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled. - Page 4 EN: Notice: 1.50% Tighten before fixing all screws, Allen wrench is recommendedinstead of an electric drill. 2. Place the item on a flat ground to adjust and make sure it remainsstable. 3. Tighten up all screws with tools gradually 4. If the screws are not aligned with holes during assembly, pleaseoosen all the other screws to 50% and continue the assembly process 5.
- Page 5 Part & Hardware List / Liste des Pièces & Matériel Right frame Left frame Seat frame /Cadre droit /Cadre gauche /Cadre du siège Back frame Bench seat frame Bench back frame /Cadre du dossier /Cadre de l'assise du banc /Cadre du dossier du banc Seat cushion Bench cushionl Table leg frame...
- Page 6 ( 2x Chair assembly) Connect Back frame (D) & Seat frame (C)with Bolt (2) & Washers(3) / (Assemblage de 2 chaises) Connectez le cadre du dossier (D) et le cadre du siège (C) avec le boulon (2) et la rondelle (3). Connect part from Step 1 &...
- Page 7 Connect part from Step2 & Left arm (B)with Bolt(1), Bolt (2) &Washers(3) / Connectez la partie de l'étape 1 et le bras droit (A) avec le boulon (1), le boulon (2) et les rondelles (3). Put on Seat cushion (G) to complete single chair / Placez le coussin de siège (G) pour compléter la chaise simple.
- Page 8 ( Bench assembly) Connect Bench back frame (F) &Bench seat frame (E) with Bolt (2) &Washer (3) / (Assemblage du banc) Connectez le cadre du dossier du banc (F) et le cadre du siège du banc (E) avec le boulon (2) et la rondelle (3). Connect part from Step 5 &...
- Page 9 Connect part from Step 6 & Left arm(B)with Bolt(1), Bolt (2) & Washers(3) / Connectez la partie de l'étape 6 et le bras gauche (B) avec le boulon (1), le boulon (2) et les rondelles (3). Put on Bench cushion (H) to complete Bench / Placez le coussin du banc (H) pour compléter le banc.
- Page 10 (Table assembly) Connect Table leg frame (I) & Table side frame (J) with Bolt (2) &Washers (3) / (Assemblage de la table) Connectez le cadre du pied de la table (I) et le cadre latéral de la table (J) avec les boulons (2) et les rondelles (3).
- Page 11 Connect part from Step 10 & Table leg frame (I)with Bolt (2) & Washers(3) / Connectez la partie de l'étape 10 et le cadre du pied de la table (I) avec les boulons (2) et les rondelles (3). Put on Table Glass (K) to complete the Table / Placez la vitre de la table (K) pour compléter la table.
- Page 12 Finished / Terminé...
- Page 13 Return / Damage Claim Instructions DO NOT discard the box / original packaging. In case a return is required, the item must be returned in original box. Without this your return will not be accepted. Take a photo of the box markings. A photo of the markings (text) on the side of the box is required in case a part is needed for replacement.
